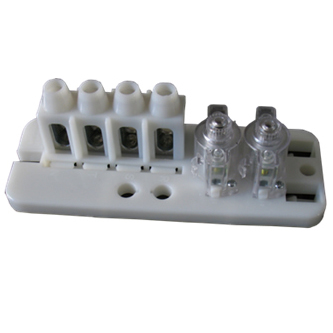

MVL/435 RECESS MOUNTED CUT-OUT JUNCTION BOX

1.Insulation materiall:Polyamide 6.6 (PA66)with inflammability UL94/V2 ,Polyproplyne(PP) with inflammablility UL94/V0

2.Working temperature: PA66 -30-110â„
PP -30-100â„

3.Mounting screws of main terminals: brass

4.temperature rise of main terminals:125A,,<45K

5.Temperature rise of protecting fuse terminals:25A,<45K

6.Connecting capacity:
        main terminal:2x35mm2 rigid
                              2x25mm2 flexible
        protecting terminals: 6mm2 rigid
                                          4mm2 flexible

7.suitable protecting fuse:8.5x31.5mm,   9x36mm
