HD-5 Series Yellow &Green Thermal

Features and application

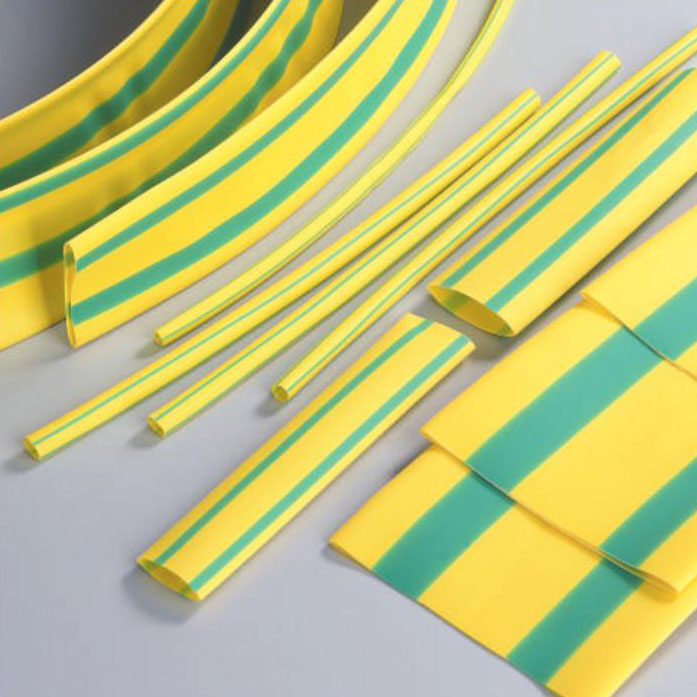

1. HD-5 series yellow£¦green shdnkable bushing is processed and manufactured with excellent green and yellow polyolefln materials.When the products are shapedthey are cross linked and expanded continuously with electronlc accelerator,The products are characterized by softnessflame retardationfast shrinkage bright and durable color and stable performance.They are widely used in the marking of electric wires earthing of cablesspecial lines and pipelines.
2. Features:
Softnessflame retardationbright and durable color
Application:-40¡æ¡«50¡æ;
Initial shdnking temperature:70¡æ;
Full shrinking temperature:125¡æ;
Timely delivery and large suppl,convenient useable to shrink when heated with oven or hot air gun.
Standard color:yellow-green

Performance indexes
Test item Index
Continuous use temperature -55¡æ¡«125¡æ
Tensile strength ¡Ý10.4Mpa
Longitudinal shrinking ratio ¡Ý8%
Flame retardation PASS
Breakdown strength ¡Ý15kV/mm
Volume resistivity £¾1014¦¸.cm

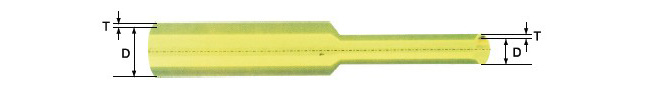

Specification Dimension before shrinking(mm) Dimension after shrinking (mm) Standard packaging
(m/disc)
Application
(mm)
Internal diameter Wall thickness Internal diameter Wall thickness
¦µ2.0 2.2¡À0.3 0.25¡À0.05 0.98¡À0.1 0.32¡À0.05 200 1.1¡«1.8
¦µ3.0 3.2¡À0.4 0.25¡À0.05 1.45¡À0.2 0.35¡À0.05 200 1.6¡«2.7
¦µ4.0 4.2¡À0.4 0.25¡À0.05 1.96¡À0.2 0.35¡À0.05 200 2.1¡«3.6
¦µ5.0 5.2¡À0.4 0.25¡À0.05 2.48¡À0.2 0.35¡À0.05 200 2.6¡«4.5
¦µ6.0 6.2¡À0.4 0.28¡À0.15 2.96¡À0.3 0.45¡À0.15 200 3.1¡«5.4
¦µ7.0 7.2¡À0.4 0.28¡À0.15 3.48¡À0.3 0.45¡À0.15 100 3.7¡«3
¦µ8.0 8.2¡À0.5 0.28¡À0.15 3.95¡À0.3 0.45¡À0.15 100 4.2¡«7.2
¦µ10 10.2¡À0.5 0.30¡À0.15 4.90¡À0.3 0.50¡À0.15 100 5.2¡«9.0
¦µ12 12.2¡À0.5 0.30¡À0.15 5.90¡À0.5 0.50¡À0.15 100 6.2¡«11
¦µ14 14.2¡À0.5 0.35¡À0.15 6.90¡À0.5 0.50¡À0.15 100 7.3¡«13
¦µ16 16.2¡À0.6 0.38¡À0.15 7.90¡À0.5 0.60¡À0.15 100 8.3¡«15
¦µ20 20.2¡À0.8 0.40¡À0.20 9.90¡À0.5 0.70¡À0.20 100 11.4¡«19
¦µ25 25.3¡À0.8 0.45¡À0.20 12.30¡À1.0 0.70¡À0.20 50 12.8¡«24
¦µ30 30.2¡À0.8 0.45¡À0.20 14.70¡À1.0 0.70¡À0.20 50 16¡«29
¦µ35 35.2¡À0.8 0.50¡À0.20 17.30¡À1.0 0.80¡À0.20 50 18¡«34
¦µ40 40.0¡À1.0 0.50¡À0.20 19.80¡À1.0 0.80¡À0.20 50 21¡«39
¦µ50 50.0¡À1.0 0.50¡À0.20 24.80¡À1.0 0.80¡À0.20 50 26¡«49
¦µ60 60.0¡À1.0 0.60¡À0.20 29.80¡À1.0 0.80¡À0.20 25 35¡«55
¦µ70 70.0¡À1.0 0.65¡À0.20 34.00¡À2.0 1.00¡À0.20 25 40¡«65
¦µ80 80.0¡À1.0 0.65¡À0.20 39.00¡À2.0 1.00¡À0.20 25 45¡«75
¦µ90 90.0¡À1.0 0.65¡À0.20 44.00¡À2.0 1.00¡À0.20 25 50¡«88
¦µ100 100.0¡À2.0 0.65¡À0.20 49.00¡À2.0 1.00¡À0.20 25 55¡«95
¦µ120 120.0¡À2.0 0.70¡À0.20 59.00¡À2.0 1.20¡À0.20 25 65¡«115
¦µ150 150.0¡À2.0 0.70¡À0.20 74.00¡À2.0 1.20¡À0.20 25 80¡«145
¦µ180 180.0¡À2.0 0.70¡À0.20 88.00¡À2.0 1.20¡À0.20 25 95¡«175
Note:Other dimensions can be manufactured according to the orders ,and the minimum order and delivery is subject to renegotiation .
