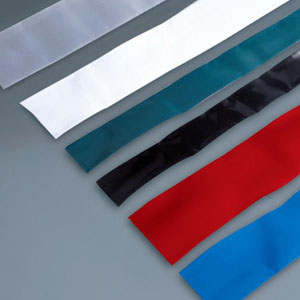

Heat-Shrinkable PCV Tube

Product description :
1. 85 105 125 UL PVC material
2. Operating temperature-40桫50
3. Flame ratardant UL224 VW-1
4. Excellent insulation
5. Good flexibility
6. Resistance to acidoil
7. Hook uP wirelead wire protection

Application:
For general insulation and protection for appliance,wire harness,transformer,lead wire of motors,etc.



Specification Folded diameter mm Wall thickness Potrait shrinkable
rate at 100
Portrait shrinkable rate
at hith temperature
85 105 85 105 180 15 minutes
2.8 4.70.5 0.080.05 0.080.05 92 72 203
3 5.00.5 0.080.05 0.080.05 92 72 203
3.2 5.50.5 0.080.05 0.080.05 92 72 203
4 7.00.5 0.080.05 0.080.05 92 72 203
5 8.70.5 0.080.05 0.080.05 92 72 203
6 10.50.5 0.080.05 0.080.05 92 72 203
7 12.01 0.080.05 0.080.05 92 72 263
8 13.81 0.080.05 0.080.05 92 72 263
9 15.01 0.080.05 0.080.05 92 72 263
10 16.81 0.100.02 0.100.02 92 72 263
11 18.01 0.100.02 0.100.02 92 72 263
12 20.01 0.100.02 0.100.02 92 72 263
13 21.51 0.100.02 0.100.02 92 72 263
14 23.51 0.100.02 0.100.02 92 72 263
15 24.51 0.100.02 0.100.02 92 72 263
16 27.01 0.100.02 0.100.02 92 72 263
17 28.01 0.100.02 0.100.02 92 72 263
18 29.01 0.100.02 0.100.02 92 72 263
19 31.01 0.100.02 0.100.02 92 72 263
20 32.51 0.100.02 0.100.02 92 72 263
21 34.01 0.120.02 0.120.02 92 72 263
22 35.51 0.120.02 0.120.02 92 72 263
23 36.51 0.120.02 0.120.02 92 72 263
24 39.01 0.120.02 0.120.02 92 72 263
25 41.01.5 0.120.02 0.120.02 92 92 273
26 43.51.5 0.120.02 0.120.02 92 92 273
27 45.01.5 0.120.02 0.120.02 92 92 273
28 46.51.5 0.120.02 0.120.02 92 92 273
30 50.51.5 0.150.025 0.150.025 92 92 273
