Characteristics

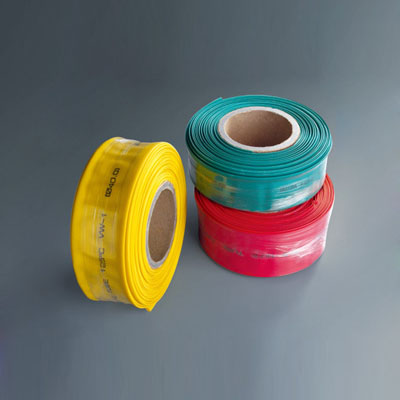

HD-2 series flame-retardant thermal shrinkable bushing boasts very good flame retardationinsulation softnesslow temperature and fast shrinking.It is widely used in wire connectionwelding protectionwire markingthe insulation protection of resistance and capacitonthe corrosion protection of metal bar or tubes and the antenna protection.
Principle of thermal shrinkage:under the high energy radiation, the linear polymer can form network cross- linked structure.The mechanical strengthtemperaturechemical solution and ageing resistance of cross- linked polymer are greatly improvedespecially the acid and alkali resistance.
Safety standard:FT2RoHS
Color:Blackredblue,whiteyellow,green and transparent. And other colors are subject to the clients¡¯needs
Shrinking ratio:2:1 Ratad voltage:600V
| Specification | Dimension before shrinking(mm) | Dimension after shrinking (mm) |
Standard packaging (m/disc) |
Application (mm) |
||
| Internal diameter | Wall thickness | Internal diameter | Wall thickness | |||
| ¦µ0.8 | 0.9¡À0.2 | 0.20¡À0.05 | 0.40¡À0.1 | 0.32¡À0.05 | 200 | 0.6¡«0.8 |
| ¦µ1.0 | 1.2¡À0.3 | 0.20¡À0.05 | 0.48¡À0.1 | 0.32¡À0.05 | 200 | 0.75¡«0.9 |
| ¦µ1.5 | 1.7¡À0.3 | 0.20¡À0.05 | 0.73¡À0.1 | 0.32¡À0.05 | 200 | 0.95¡«1.4 |
| ¦µ2.0 | 2.2¡À0.3 | 0.25¡À0.05 | 0.98¡À0.1 | 0.32¡À0.05 | 200 | 1.1¡«1.8 |
| ¦µ2.5 | 2.6¡À0.3 | 0.25¡À0.05 | 1.23¡À0.2 | 0.35¡À0.05 | 200 | 1.35¡«2.3 |
| ¦µ3.0 | 3.2¡À0.4 | 0.25¡À0.05 | 1.45¡À0.2 | 0.35¡À0.05 | 200 | 1.6¡«2.7 |
| ¦µ3.5 | 3.6¡À0.4 | 0.25¡À0.05 | 1.72¡À0.2 | 0.35¡À0.05 | 200 | 1.85¡«3.2 |
| ¦µ4.0 | 4.2¡À0.4 | 0.25¡À0.05 | 1.96¡À0.2 | 0.35¡À0.05 | 200 | 2.1¡«3.6 |
| ¦µ4.5 | 4.6¡À0.4 | 0.25¡À0.05 | 2.20¡À0.2 | 0.35¡À0.05 | 200 | 2.35¡«4.0 |
| ¦µ5.0 | 5.2¡À0.4 | 0.25¡À0.05 | 2.48¡À0.2 | 0.35¡À0.05 | 200 | 2.6¡«4.5 |
| ¦µ6.0 | 6.2¡À0.4 | 0.28¡À0.15 | 2.96¡À0.3 | 0.45¡À0.15 | 200 | 3.1¡«5.4 |
| ¦µ7.0 | 7.2¡À0.4 | 0.28¡À0.15 | 3.48¡À0.3 | 0.45¡À0.15 | 100 | 3.7¡«3 |
| ¦µ8.0 | 8.2¡À0.5 | 0.28¡À0.15 | 3.95¡À0.3 | 0.45¡À0.15 | 100 | 4.2¡«7.2 |
| ¦µ9.0 | 9.2¡À0.5 | 0.30¡À0.15 | 4.40¡À0.3 | 0.50¡À0.15 | 100 | 4.7¡«8.0 |
| ¦µ10 | 10.2¡À0.5 | 0.30¡À0.15 | 4.90¡À0.3 | 0.50¡À0.15 | 100 | 5.2¡«9.0 |
| ¦µ11 | 11.2¡À0.5 | 0.30¡À0.15 | 5.40¡À0.3 | 0.50¡À0.15 | 100 | 5.7¡«10 |
| ¦µ12 | 12.2¡À0.5 | 0.30¡À0.15 | 5.90¡À0.5 | 0.50¡À0.15 | 100 | 6.2¡«11 |
| ¦µ13 | 13.2¡À0.5 | 0.33¡À0.15 | 6.40¡À0.5 | 0.50¡À0.15 | 100 | 6.7¡«12 |
| ¦µ14 | 14.2¡À0.5 | 0.35¡À0.15 | 6.90¡À0.5 | 0.50¡À0.15 | 100 | 7.3¡«13 |
| ¦µ15 | 15.2¡À0.6 | 0.38¡À0.15 | 7.40¡À0.5 | 0.60¡À0.15 | 100 | 7.8¡«14 |
| ¦µ16 | 16.2¡À0.6 | 0.38¡À0.15 | 7.90¡À0.5 | 0.60¡À0.15 | 100 | 8.3¡«15 |
| ¦µ17 | 17.2¡À0.6 | 0.38¡À0.15 | 8.40¡À0.5 | 0.60¡À0.15 | 100 | 8.8¡«16 |
| ¦µ18 | 18.2¡À0.6 | 0.40¡À0.15 | 8.90¡À0.5 | 0.60¡À0.15 | 100 | 9.3¡«17 |
| ¦µ20 | 20.2¡À0.8 | 0.40¡À0.20 | 9.90¡À0.5 | 0.70¡À0.20 | 100 | 11.4¡«19 |
| ¦µ22 | 22.2¡À0.8 | 0.42¡À0.20 | 10.80¡À1.0 | 0.70¡À0.20 | 100 | 12.4¡«21 |
| ¦µ25 | 25.3¡À0.8 | 0.45¡À0.20 | 12.30¡À1.0 | 0.70¡À0.20 | 50 | 12.8¡«24 |
| ¦µ28 | 28.3¡À0.8 | 0.45¡À0.20 | 13.50¡À1.0 | 0.70¡À0.20 | 50 | 14.4¡«29 |
| ¦µ30 | 30.2¡À0.8 | 0.45¡À0.20 | 14.70¡À1.0 | 0.70¡À0.20 | 50 | 16¡«29 |
| ¦µ35 | 35.2¡À0.8 | 0.50¡À0.20 | 17.30¡À1.0 | 0.80¡À0.20 | 50 | 18¡«34 |
| ¦µ40 | 40.0¡À1.0 | 0.50¡À0.20 | 19.80¡À1.0 | 0.80¡À0.20 | 50 | 21¡«39 |
| ¦µ50 | 50.0¡À1.0 | 0.50¡À0.20 | 24.80¡À1.0 | 0.80¡À0.20 | 50 | 26¡«49 |
| ¦µ60 | 60.0¡À1.0 | 0.60¡À0.20 | 29.80¡À1.0 | 0.80¡À0.20 | 25 | 35¡«55 |
| ¦µ70 | 70.0¡À1.0 | 0.65¡À0.20 | 34.00¡À2.0 | 1.00¡À0.20 | 25 | 40¡«65 |
| ¦µ80 | 80.0¡À1.0 | 0.65¡À0.20 | 39.00¡À2.0 | 1.00¡À0.20 | 25 | 45¡«75 |
| ¦µ90 | 90.0¡À1.0 | 0.65¡À0.20 | 44.00¡À2.0 | 1.00¡À0.20 | 25 | 50¡«88 |
| ¦µ100 | 100.0¡À2.0 | 0.65¡À0.20 | 49.00¡À2.0 | 1.00¡À0.20 | 25 | 55¡«95 |
| ¦µ120 | 120.0¡À2.0 | 0.70¡À0.20 | 59.00¡À2.0 | 1.20¡À0.20 | 25 | 65¡«115 |
| ¦µ150 | 150.0¡À2.0 | 0.70¡À0.20 | 74.00¡À2.0 | 1.20¡À0.20 | 25 | 80¡«145 |
| ¦µ180 | 180.0¡À2.0 | 0.70¡À0.20 | 88.00¡À2.0 | 1.20¡À0.20 | 25 | 95¡«175 |
