HD-3 Series Flame-Retardant Thin-Wall
Application

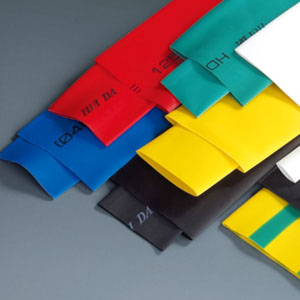

HD-3 series flame-retardant thin-wall thermal shrinkable bushing is characterized by thin wall, good insulationlow shrinking temperaturefast shrinkingsoftnessand it is specially applicable to the protection of temperature sen-sitive components.
Shrinking ratio:2:1
Initial shrinking temperature:80¡æ
Color:Blackredbluewhiteyellow,green and transparent(Other colors are also available)
Rated voltage:300V
Performance indexes
| Test item | Index |
| Initial shrinking temperature | -40¡æ¡«50¡æ |
| Continuous use temperature | 80¡æ |
| Tensile strength | ¡Ý14Mpa |
| Breakdown strength | ¡Ý25kv/mm |
| Volume resistivity | £¾1014¦¸.cm |
| Flame retardation | PASS |
| Specification | Dimension before shrinking(mm) | Dimension after shrinking (mm) |
Standard packaging (m/disc) |
Application (mm) |
||
| Internal diameter | Wall thickness | Internal diameter | Wall thickness | |||
| ¦µ1.0 | 1.2¡À0.3 | 0.10¡À0.05 | 0.6 | 0.20¡À0.05 | 200 | 0.65¡«0.9 |
| ¦µ1.5 | 1.7¡À0.3 | 0.10¡À0.05 | 0.8 | 0.20¡À0.05 | 200 | 0.9¡«1.4 |
| ¦µ2.0 | 2.2¡À0.3 | 0.13¡À0.05 | 1.0 | 0.22¡À0.05 | 200 | 1.5¡«1.8 |
| ¦µ2.5 | 2.6¡À0.3 | 0.13¡À0.05 | 1.3 | 0.25¡À0.05 | 200 | 1.5¡«2.3 |
| ¦µ3.0 | 3.2¡À0.4 | 0.13¡À0.05 | 1.5 | 0.28¡À0.05 | 200 | 1.75¡«2.7 |
| ¦µ3.5 | 3.6¡À0.4 | 0.13¡À0.05 | 1.8 | 0.28¡À0.05 | 200 | 2¡«3.2 |
| ¦µ4.0 | 4.2¡À0.4 | 0.13¡À0.05 | 2.0 | 0.30¡À0.05 | 200 | 2.5¡«3.6 |
| ¦µ5.0 | 5.2¡À0.4 | 0.15¡À0.05 | 2.5 | 0.32¡À0.05 | 200 | 3¡«4.5 |
| ¦µ6.0 | 6.2¡À0.4 | 0.15¡À0.05 | 3.0 | 0.32¡À0.05 | 200 | 3.5¡«5.4 |
| ¦µ7.0 | 7.2¡À0.4 | 0.15¡À0.05 | 3.5 | 0.32¡À0.05 | 100 | 4¡«6.3 |
| ¦µ8.0 | 8.2¡À0.5 | 0.15¡À0.05 | 4.0 | 0.32¡À0.08 | 100 | 4.5¡«7.2 |
| ¦µ9.0 | 9.2¡À0.5 | 0.16¡À0.05 | 4.5 | 0.35¡À0.08 | 100 | 5¡«8 |
| ¦µ10 | 10.2¡À0.5 | 0.16¡À0.05 | 5.0 | 0.35¡À0.08 | 100 | 5.5¡«9 |
| ¦µ11 | 11.2¡À0.5 | 0.18¡À0.05 | 5.5 | 0.40¡À0.08 | 100 | 6¡«10 |
| ¦µ12 | 12.2¡À0.5 | 0.20¡À0.05 | 6.0 | 0.40¡À0.08 | 100 | 6.5¡«11 |
| ¦µ13 | 13.2¡À0.5 | 0.20¡À0.05 | 6.5 | 0.40¡À0.08 | 100 | 7¡«12 |
| ¦µ14 | 14.2¡À0.5 | 0.20¡À0.05 | 7.0 | 0.40¡À0.08 | 100 | 7.5¡«13 |
| ¦µ15 | 15.2¡À0.6 | 0.20¡À0.05 | 7.5 | 0.40¡À0.08 | 100 | 8¡«14.8 |
| ¦µ16 | 16.2¡À0.6 | 0.20¡À0.05 | 8.0 | 0.40¡À0.08 | 100 | 9¡«15.8 |
