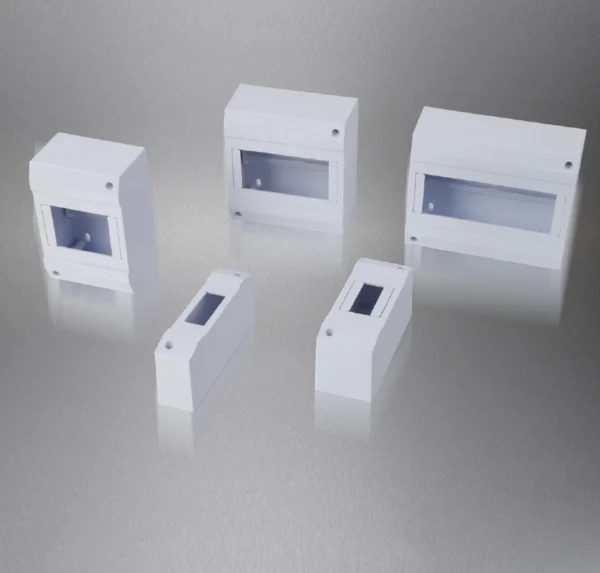

Distribution Box WS Series | Compact Indoor DIN-Rail Unit (IP30)
Compact distribution box for tidy indoor circuits, with viewing window.
IP30 surface-mounted unit with clean knock-out entries.
Built-in DIN rail for MCB/RCD/RCBO; quick wall installation.
1–8 ways options, CE & RoHS compliant.
Overview
This distribution box from the WS Series is a compact, surface-mounted mini consumer unit designed for tidy indoor circuits. It uses a rigid enclosure with a viewing window and a factory-fitted DIN rail so you can mount MCB, RCD or RCBO devices quickly. With an IP30 rating and CE & RoHS compliance, the WS distribution box delivers clean routing, safe access and a neat appearance for apartments, shops and instrument panels.
Compared with bulky boards, the WS distribution box keeps depth and width to a minimum while maintaining space for cable bends and labeling. Knock-out entries on the body simplify cable management; once glands or bushings are fitted, the interior remains organized and protected from accidental contact. The hinge and latch design supports frequent inspection without damaging the cover or the finish.
Materials & Construction
- Housing: durable enclosure with smooth edges and reinforced mounting points.
- Viewing window: clear slot enables a quick breaker status check without opening the cover.
- Rail: pre-installed DIN rail; accepts standard miniature protection devices.
- Ingress protection: IP30 for indoor use (corridors, meter cupboards, control corners).
- Compliance: CE & RoHS; low maintenance and easy to clean.
Applications
- Apartment and retail lighting spurs, socket groups and small machinery circuits.
- Instrumentation and control corners where a compact distribution box is preferred.
- Retrofit projects that require surface mounting with minimal wall work.
Installation & Wiring Guide
- Mark & mount: level the base and fix the box through rear screw holes.
- Prepare entries: open the knock-outs; fit bushings or cable glands as required.
- Fit devices: clip MCB/RCD/RCBO onto the DIN rail; add neutral/earth bars if needed.
- Terminate & dress: maintain bend radius, label circuits, and secure with ties.
- Close & test: check the latch/hinge, perform continuity and insulation checks.
What’s Included
- WS Series enclosure with viewing window
- DIN rail pre-installed
- Mounting hardware pack (typical screws) *
* Contents may vary by region; confirm with your sales representative.

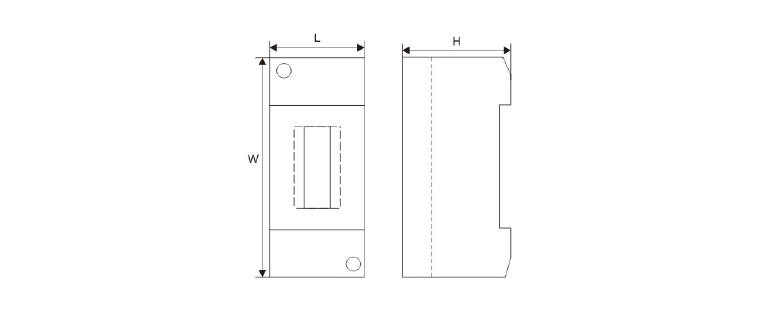

Models & Dimensions
Dimensions are taken from the supplied datasheet images; confirm way/pole configuration before ordering.
Request a Quote
Tell us the WS distribution box model (ways), quantity and required accessories (labels, terminal bars). Our team will respond quickly.
