What are insulated terminals and where are they used?

Insulated terminals are pre-insulated crimp connectors that join wires to studs, screws, or other conductors. Typical types include ring, spade, butt, pin, and quick-disconnect, used in control panels, automotive harnesses, and industrial wiring.

What color code matches the wire size?

Red 0.5–1.5 mm² (22–16 AWG), Blue 1.5–2.5 mm² (16–14 AWG), Yellow 4–6 mm² (12–10 AWG). Match color to your wire gauge and use the correct crimp die.

Which crimping tool should I use?

Use a ratchet-type crimping tool matched to the terminal family and wire gauge. Strip without nicking strands, insert fully, and crimp until the sleeve compresses. For heat-shrink types, apply heat to seal.

Are WILLELE insulated terminals compliant with IEC/UL?

Yes. Products follow IEC 60998-1 for terminal connections and UL 486A/B for crimped connectors, and meet RoHS requirements.

Which terminal should I pick—ring, spade, butt, pin, or quick-disconnect?

Use ring for permanent stud connections; spade for easy maintenance; butt for inline splicing; pin for screw terminals; quick-disconnect for tool-free mating pairs.

Can I use insulated terminals outdoors?

Yes. Choose heat-shrink insulated terminals for moisture protection and finish with adhesive-lined heat-shrink tubing to improve sealing and strain relief.

Do you support OEM/ODM and assortment kits?

We offer OEM/ODM on colors, branding, and packaging, including plastic box assortments (value packs) for service teams and distributors.

Insulated Terminals & Wire Connectors — 5 Safe Types

Q: How do vinyl, nylon, and heat-shrink insulated terminals differ?

Vinyl is economical for general indoor wiring; nylon provides better heat and vibration resistance; heat-shrink (adhesive-lined) delivers waterproof sealing for outdoor, marine, and solar applications.

Willele: Reliable Insulated Terminals Manufacturer

WILLELE manufactures a complete line of insulated terminals and wire connectors for reliable crimping in automotive, electrical, and industrial wiring.
Available in vinyl, nylon, and heat-shrink insulation, these terminals deliver strong, low-resistance connections with color-coded sleeves for easy identification and fast installation.

Full range — Ring, fork, spade, butt, and disconnect types for every wiring setup.
Wide capacity — Fits 0.5–6 mm² (22–10 AWG) conductors, rated up to 600 V / 105 °C.
Secure performance — Tin-plated copper barrels ensure lasting conductivity.
Quick installation — Compatible with standard crimp tools and color-size coding.

Get A Quotation Now!

Insulated Terminals & Connectors Collection

Crimp & Splice Terminals

Quick-Disconnect Terminals

Why Choose Willele

Willele designs and manufactures high-quality insulated terminals and wire connectors for safe, efficient, and durable electrical connections in industrial, automotive, and automation systems.
From vinyl and nylon crimp terminals to fully insulated disconnects and heat-shrink sealed types, Willele provides complete solutions that meet global wiring standards.

Certified Quality & Materials
Every terminal is made from high-conductivity copper or brass with RoHS-compliant vinyl, nylon, or heat-shrink insulation.
All models comply with IEC and UL standards to ensure stable contact, strong insulation, and long-term performance under vibration or heat.
Comprehensive Product Range
One trusted source for ring, spade, blade, pin, butt, and quick-disconnect terminals, covering wire sizes from 0.5 – 6 mm² (22 – 10 AWG).
Color-coded insulation simplifies selection and field assembly for maintenance teams and OEM wiring systems.
Engineered for Reliability
Precision-formed barrels guarantee tight crimping and low contact resistance.
Nylon and heat-shrink types enhance resistance to moisture, oil, and mechanical stress—ideal for harsh environments and outdoor use.
Fast, Easy Installation
Compatible with standard crimping tools and wire gauges, Willele terminals allow quick, repeatable installation and help reduce downtime in mass production or field repairs.

GET FULL CATALOGUE

Insulated Terminals & Connectors for Reliable Electrical Connections

Willele supplies a comprehensive selection of insulated wire terminals and crimp connectors engineered for safe, stable, and long-lasting electrical terminations in industrial control, automotive wiring, and automation panels.
The range covers vinyl, nylon, and heat-shrink insulated terminals, all designed for secure crimping, corrosion resistance, and mechanical strength under demanding environments.
Compliant with IEC / RoHS / CE standards, Willele ensures consistent performance, color-coded identification, and easy installation for both OEM and field applications.

Disconnect Terminals

Our insulated disconnects offer fast and secure connections for quick assembly and maintenance.
Available in male, female, bullet, piggy-back, and fully-insulated quick-disconnect types, they ensure tight engagement and vibration-proof reliability.
Precision-formed copper barrels with nylon or vinyl insulation provide stable conductivity and heat resistance in automotive harnesses and control circuits.

Crimp & Cord End Terminals

Willele’s insulated crimp terminals deliver reliable terminations for stranded conductors.
The lineup includes ring, spade, fork, pin, and butt connectors, compatible with wire sizes from 0.5 to 6 mm² (22–10 AWG).
Color-coded insulation simplifies wiring identification and guarantees uniform crimping results across installations.

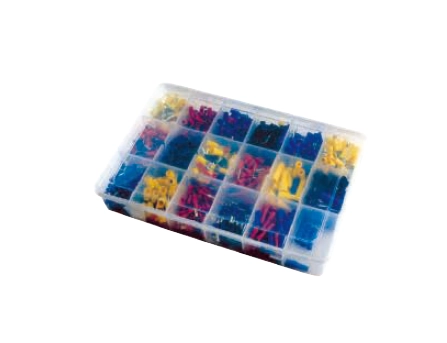

Assorted Terminal Kits (Value Pack Options)

Willele offers pre-assembled insulated terminal kits for workshops, maintenance teams, and field engineers.
Each value pack includes a variety of popular insulated terminals—ring, spade, fork, butt, and disconnect types—neatly organized in a durable plastic box for convenient storage and selection.
Available in different assortments such as 175 PCS, 300 PCS, 760 PCS, and 1200 PCS, these kits provide a quick, professional solution for wiring repair, assembly, and electrical prototyping.
Ideal for service centers, control cabinet assembly, and on-site electrical maintenance.

Specify Your Insulated Terminals & Connectors

Durable vinyl, nylon, and heat-shrink insulated terminals — including ring, spade, fork, butt, and disconnect types — designed for secure crimping and long-lasting performance in industrial, automotive, and control wiring applications.

Get a Quotation Now

More Than a Cable Lug & Connectors Supplier

We don’t just deliver terminals — we help you build reliable, conductive, and durable connections.
From product selection to engineering customization and fast export support, WILLELE keeps your power system performing at its best.

Expert Consultation

From control panel wiring to automotive harness assembly, our engineers evaluate wire gauge, insulation type, and crimping method to recommend the best terminal shape and insulation material.
We assist in choosing between vinyl, nylon, or heat-shrink types, ensuring secure terminations under various environmental and vibration conditions.

Product Selection Recommendations

We provide exact part matching with details like tube diameter, crimping range, and bolt hole size.
Our team helps you choose between standard, lengthened, or DIN-style cable lug, connecting sleeves, and mechanical clamps, ensuring fast specification turnaround within 12 hours.

Logistics & Shipping Support

We manage export documentation, CE / RoHS compliance, and customized packaging for global distribution.
Orders can be supplied in bulk bags or assorted plastic kits, with options for custom labeling, OEM branding, and neutral export cartons to simplify inventory and logistics.

Guidance & Support

During installation, we provide assistance on crimping pressure, stripping length, and pull-out testing to ensure consistent quality.
For large-volume users, WILLELE offers on-site training, sample validation, and packaging customization, ensuring every connection is safe, repeatable, and compliant with IEC standards.

Insulated Terminals — Frequently Asked Questions

Quick answers about vinyl, nylon, and heat-shrink insulated terminals, crimping methods, and wire connector selection.

What are insulated terminals and how are they used?

Insulated terminals are electrical connectors with a protective vinyl, nylon, or heat-shrink sleeve that provides mechanical support and electrical insulation. They are used to terminate, join, or disconnect wires safely in industrial, automotive, and control wiring applications.

What’s the difference between vinyl, nylon, and heat-shrink insulated terminals?

Vinyl insulated terminals are economical for general use, nylon insulated terminals offer higher temperature and vibration resistance, while heat-shrink insulated terminals provide waterproof sealing for outdoor or marine applications. All types ensure secure crimping and reliable wire connections.

How do I select the correct insulated terminal size?

Match the terminal to your wire’s cross-section (mm² / AWG), stud hole size, and insulation color code. For example, red typically fits 0.5–1.5 mm², blue fits 1.5–2.5 mm², and yellow fits 4–6 mm² conductors. Always confirm the fit before crimping to prevent overheating or poor conductivity.

What is the correct way to crimp insulated terminals?

Use a calibrated ratchet crimping tool that matches the terminal type. Strip the wire without damaging strands, insert it fully into the barrel, and crimp until the insulation sleeve compresses slightly. For heat-shrink terminals, apply heat evenly to seal and waterproof the joint.

When should I use fully insulated quick disconnects?

Choose fully insulated male and female disconnects when you need a safe, tool-free connection that prevents accidental shorting. These connectors are ideal for control panels, appliances, and automotive harnesses where fast replacement or maintenance is required.

Do insulated terminals meet international standards?

Yes. All Willele insulated terminals comply with IEC, UL, and RoHS standards. Materials are flame-retardant and corrosion-resistant, and each series undergoes pull-out and conductivity testing to ensure long-term reliability in harsh environments.

Are color codes on insulated terminals standardized?

Yes. The color of the insulation indicates the wire gauge: Red (0.5–1.5 mm²), Blue (1.5–2.5 mm²), and Yellow (4–6 mm²). This international color code simplifies quick identification and ensures correct wire-to-terminal matching across all Willele insulated series.

Can insulated terminals be used outdoors or in humid conditions?

Yes. For moisture-prone or outdoor applications, use heat-shrink insulated terminals with adhesive lining. After crimping, heat activation seals the connection against water ingress and corrosion, making them ideal for marine, solar, and automotive wiring.

Does Willele provide assortment kits for insulated terminals?

Absolutely. Willele offers assorted terminal kits packaged in durable plastic boxes containing popular sizes of ring, spade, fork, and disconnect types. These value packs simplify on-site wiring, repair, and maintenance for both industrial and DIY use.

What Are Insulated Terminals & Wire Connectors?

Insulated terminals are pre-insulated electrical connectors designed for crimping or soldering wires to ensure reliable, vibration-resistant connections. WILLELE offers a complete range including ring, spade, fork, butt, pin, and quick-disconnect terminals for use in control panels, automotive wiring, and industrial assemblies. Each terminal combines a conductive copper barrel with a protective vinyl, nylon, or heat-shrink sleeve that prevents short circuits and moisture intrusion.

Common Insulation Materials

Vinyl Insulated Terminals: Economical and easy to crimp, suitable for general indoor wiring and light industrial applications.

Nylon Insulated Terminals: Enhanced flexibility and heat resistance, ideal for high-vibration environments such as automotive or control cabinets.

Heat-Shrink Insulated Terminals: Dual-wall adhesive-lined insulation for waterproof sealing. Recommended for outdoor, marine, and solar system wiring — often paired with heat shrink tubing for extra protection.

Main Types of Insulated Terminals

Ring Terminals (RV Series): Closed ring design for permanent, vibration-proof connection to studs or terminal blocks.
Spade Terminals (SV Series): Open-end design allowing easy removal and maintenance.
Fork & Pin Terminals (LSV / PTV Series): Used for compact wiring and quick insertion under screw terminals.
Butt Connectors (BV / PVT Series): Inline splicing of two wires for clean, reliable joints.
Quick Disconnects (FDD / MDD / FDFD Series): Male and female fully insulated types for fast assembly and disconnection without tools.

Color Coding & Wire Range

Red: 0.5–1.5 mm² (22–16 AWG)
Blue: 1.5–2.5 mm² (16–14 AWG)
Yellow: 4–6 mm² (12–10 AWG)
Each insulation color corresponds to a specific wire gauge, simplifying installation and avoiding mismatch during crimping.

Crimping Tools & Installation

Use a properly sized ratchet crimping tool compatible with the selected terminal type and wire gauge. Strip the wire without nicking strands, insert fully into the metal barrel, and crimp until the insulation sleeve slightly compresses. For heat-shrink insulated terminals, apply even heat until the adhesive flows for a sealed, strain-relieved connection.

Standards & Compliance

Standards: All WILLELE insulated terminals conform to IEC 60998-1 (dofollow) for low-voltage terminal connections and UL 486A/B for crimped wire connectors.
RoHS & Flame Resistance: Sleeves are flame-retardant and compliant with RoHS requirements.
Testing: Pull-out force, temperature-rise, and insulation dielectric tests are conducted to ensure durability and electrical safety.

Applications

Control panels and junction boxes for automation wiring.
Automotive harnesses and EV chargers using nylon insulated terminals for vibration resistance.
Marine, solar, and outdoor systems with heat-shrink insulated connectors for waterproofing.
Electrical maintenance kits and assorted plastic boxes such as RV value packs for quick field repair.

Quality Identification

Material: Oxygen-free copper with uniform tin plating and clean barrel edges.
Insulation: Smooth sleeve without cracks or voids; nylon and heat-shrink versions retain elasticity after crimping.
Dimensions: Correct barrel ID, stud size, and sleeve length per model specification.
Marking: Clear color coding and printed size for quick verification during installation.

Best Practices & Safety

Always use matched crimp dies to prevent wire slippage.
Verify color-to-wire compatibility before crimping to avoid loose connections.
Use terminal blocks for organized wiring and strain relief.
For outdoor use, cover joints with heat shrink tube for insulation and waterproofing.

OEM & ODM Services

WILLELE offers OEM/ODM solutions across all insulated terminal series, supporting customized packaging, color combinations, and branding. We provide IEC / UL certification support, RoHS compliance documentation, and full batch traceability for distributors and industrial clients. Contact our team for technical advice and sampling options.
