Insulated Butt Connectors — BV / PVT Series
Vinyl-insulated butt connectors for in-line splicing of copper wires (0.5–50 mm² / 22–#2 AWG).
Full BV long-body range plus compact PVT short-body options.
Color-coded sleeves for fast size ID; consistent barrels for reliable crimps.
Ideal where insulated butt connectors must deliver a strong, low-resistance splice with strain relief.
Overview
WILLELE BV / PVT Series insulated butt connectors create secure in-line splices for control panels, vehicles and general wiring.
The long-body BV style maximizes crimp area, while the compact PVT short-body saves space in dense panels.
Color sections follow industry practice for quick selection and reliable terminations.
- Vinyl insulation adds grip and dielectric protection; color indicates wire size.
- Barrel geometry supports repeatable crimps with standard ratchet tools.
- Designed for copper conductors; tin-plated for corrosion resistance.
- Ideal wherever insulated butt connectors must provide a strong, low-resistance splice.
Specifications — BV (Long-Body)
| Model | AWG | mm² | l (mm) | DØ (mm) | L (mm) | Imax | Color |
|---|---|---|---|---|---|---|---|
| BV1.25 | 22–16 | 0.5–1.5 | 15.0 | 1.7 | 26.0 | 19A | Red |
| BV2 | 16–14 | 1.5–2.5 | 15.0 | 2.3 | 26.0 | 27A | Blue |
| BV5.5 | 12–10 | 4–6 | 15.0 | 3.4 | 26.0 | 48A | Yellow |
| BV8 | #8 | 6–10 | 21.0 | 4.5 | 32.0 | 62A | Red |
| BV14 | #6 | 10–16 | 26.0 | 5.8 | 42.0 | 88A | Blue |
| BV22 | #4 | 16–25 | 29.0 | 7.7 | 50.0 | 115A | Yellow |
| BV38 | #2 | 35–50 | 32.0 | 9.4 | 55.0 | 160A | Red |
Specifications — PVT (Short-Body)
| Model | AWG | mm² | l (mm) | DØ (mm) | L (mm) | Imax | Color |
|---|---|---|---|---|---|---|---|
| PVT1.25 | 22–16 | 0.5–1.5 | 8.0 | 1.7 | 16.0 | 19A | Red |
| PVT2 | 16–14 | 1.5–2.5 | 8.0 | 2.3 | 16.0 | 27A | Blue |
| PVT5.5 | 12–10 | 4–6 | 8.5 | 3.4 | 20.5 | 48A | Yellow |
Dimensions are transcribed from the catalog page. Confirm exact model and crimp die before final assembly.

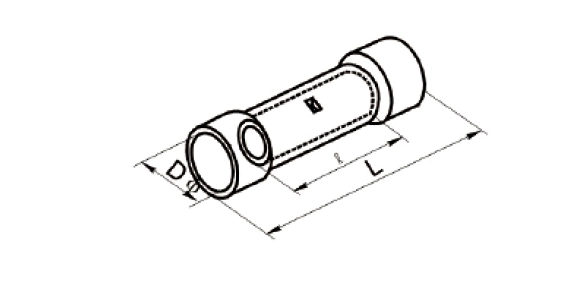

Dimensions
Applications
- In-line splices in control panels, machinery and automotive wiring
- Space-constrained areas (use PVT short-body)
- Pair with heat-shrink tube for extra strain relief
Ordering Guide
Choose conductor section (AWG/mm²) and body style (BV long-body or PVT short-body), then match barrel ID (DØ) and length.
WILLELE supplies insulated butt connectors from 0.5–50 mm² with typical currents up to 160 A.
Get a Quote
Tell us wire size, body style (BV/PVT) and quantity. We’ll recommend exact part numbers and ship quickly.
