WIRE NUTS SERIES

waterproof wire nut

Willele: Reliable Wire Nuts Manufacturer

WILLELE designs and manufactures a full range of twist-on wire nuts—from standard dry-location caps to silicone-filled waterproof types—for fast, dependable copper-to-copper splices in residential, commercial, and industrial wiring. Square-wire springs and color-coded shells deliver consistent electrical performance and easy field installation.

  • Full portfolio, including waterproof — Standard/dry-location, silicone-filled waterproof, winged/high-torque, high-temperature, and pre-installed pigtail kits to match different jobs and environments.
  • 600V building-wire rating (1000V for signs/luminaires) with 105°C typical service temperature; waterproof models remain flexible from −45°F to 400°F.
  • Quick, tool-free install — strip, insert, and twist; the live-hinge skirt and deep spring ensure a tight, consistent grip and high pull-out values.
  • Multiple sizes cover common AWG combinations, with color-coded shells for fast identification—from small control pairs to larger branch circuits.
Get A Quotation Now!

Wire Nuts Collection

Why Choose Willele

WILLELE designs and manufactures twist-on wire nuts—both standard (dry) and silicone-filled waterproof versions—for quick, dependable copper-to-copper splices indoors or outdoors. From lighting and control panels to irrigation and signage, our parts help installers finish faster and reduce callbacks.

  • Proven Performance & Ratings
    Housings use impact-resistant PA/PP with zinc-plated steel springs. 600 V building-wire rating ( 1000 V for signs/luminaires). Waterproof models are pre-filled with silicone sealant to block moisture; the sealant stays flexible from -45 °F to 400 °F (-43 °C to 204 °C).
  • Complete Size Coverage
    One source for the full range—WLE1010 / WLE1011 / WLE1020 / WLE1030 / WLE1040 plus P-series (P71–P78, P1–P2, P11–P17) and CE-series—covering common AWG combinations from small control pairs up to branch circuits. (All for copper conductors.)
  • Engineering-Led Design
    Deep, conical springs, long skirts, and optional winged grips maintain contact pressure and torque; color coding speeds picking and inspection.
  • Fast, Clean Installation
    Strip, insert, twist—no tools required. Waterproof versions need no separate gel packs or tapes. A quick pull test confirms the connection.
  • Responsive Service & Value
    Application guidance, sizing recommendations, samples, OEM/private-label options, and steady lead times—delivering performance you can trust at a competitive cost.
GET FULL CATALOGUE

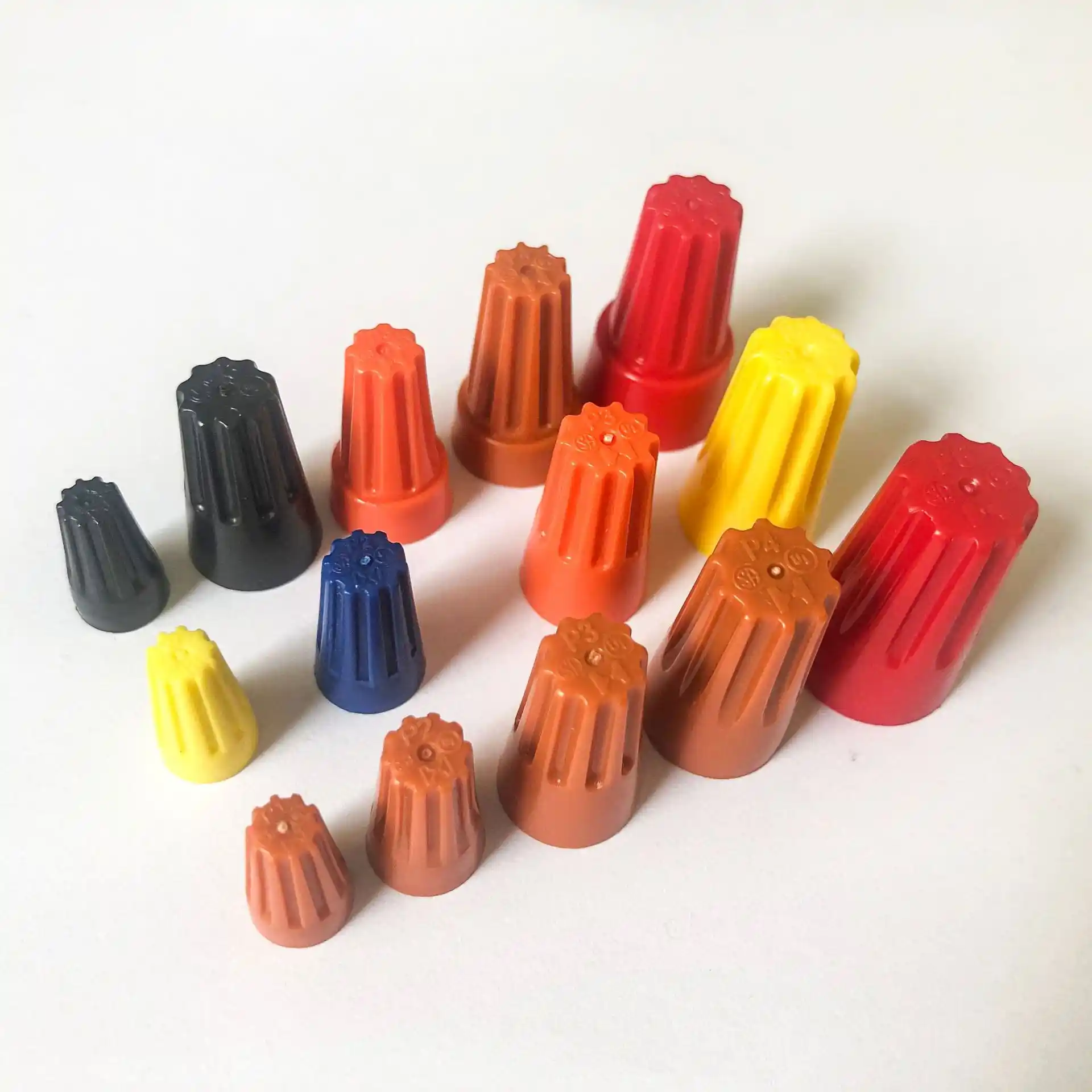

waterproof wire nuts

Industrial-Grade Wire Nuts for Professional Wiring

Willele supplies a full line of twist-on wire nuts—both standard (dry) and silicone-filled waterproof—for fast, durable copper-to-copper splices. Standard caps deliver clean, reliable connections in panels and junction boxes; waterproof versions add a factory-applied sealant for wet or damp locations. Deep conical springs maintain contact pressure over time, helping prevent loosening and rework.

What Makes Them Reliable

Pre-filled silicone sealant (waterproof models) forms an instant moisture barrier after twisting—no gel packs, tapes, or heat tools required.

Deep conical spring & long skirt keep the splice tight and protected; optional winged styles improve grip with gloves.

Rated 600 V building wire / 1000 V signs & luminaires; waterproof sealant remains flexible from -45 °F to 400 °F (-43 °C to 204 °C).

Rugged housings: impact-resistant PA/PP with UV-stabilized options; color-coded shells speed size picking and inspection.

Copper conductors only (no Cu/Al mixing); quick strip-insert-twist installation reduces time on site.

PC VS ABS

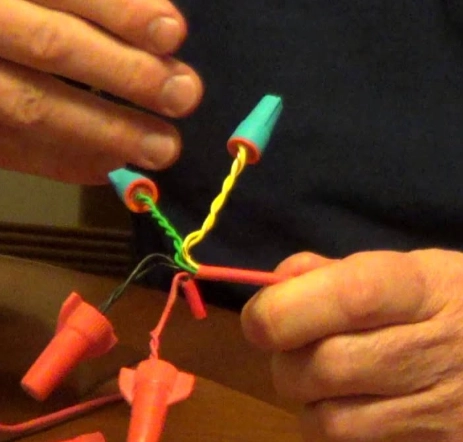

where to use wire nut

Where to Use

Standard (dry) wire nuts:
Indoor junction boxes, lighting fixtures, device terminations, and control panels—clean, dry locations where a quick, reliable copper-to-copper splice is required.

Waterproof (silicone-filled) wire nuts:
Outdoor fixtures and signage, irrigation and landscaping controls, HVAC rooftops, crawl spaces, basements, pools & fountains areas, and other damp/wet locations. Use inside rated enclosures; not for continuous submersion.
Conductor: copper-to-copper only (no Cu/Al mixing). Always follow local codes.

OEM & ODM Services

Build your own wire-nut line—standard and waterproof—through Willele’s OEM/ODM program:

Fast sampling & lead times: application review, pre-production samples, and repeatable sealing performance at scale.

Private label & packaging: branded bags, canisters, assortments, or bulk.

Colors & sizing: custom color codes, skirt depths, and winged/standard styles for easy picking.

Performance tuning: spring tension, cone geometry, and sealant type (silicone or petroleum) matched to your application.

Compliance support: UL/CSA guidance, RoHS/REACH documentation, and IP sealing validation for waterproof models.

DIN rail terminal block

Specify Your Wire Nuts

Silicone-filled, twist-on connectors for sealed copper splices—fast installs, 600 V/105 °C ratings, and sizes for every AWG mix.

Get a Quotation Now

More Than a Cable Accessories Supplier

We don’t just deliver cable accessories—we help you achieve organized, protected, and professional wiring systems.
From cable tie selection to customized packaging and on-time export, WILLELE supports every step of your project.

Expert Consultation

From site lighting to irrigation controls, our engineers review your splice needs—AWG mix, copper-to-copper bundles, voltage class (600 V/1000 V), environment (wet/damp/chemicals/temperature), and enclosure space. We’ll confirm torque window and installation method to keep the seal reliable and code-ready.

UKK-distribution-block-1

Product Selection Recommendations

Share your wire sizes and bundle counts and we’ll match the right model—WLE1010 / WLE1011 / WLE1020 / WLE1030 / WLE1040—with a simple table for AWG combinations. Expect pricing and lead time within 12 hours, plus options for color coding and kit assortments.

Logistics & Shipping Support

We handle HS codes, CE/RoHS statements, and flexible packaging for wholesale or retail: polybags, small boxes, blister cards, or assortments, with private-label printing if needed. Bulk cartons ship with secure packing and clear tracking for dependable delivery.

UKK-Distribution-Block-2

Guidance & Support

Need OEM/ODM? We customize spring design, sealant type/fill, skirt length, and colors, and provide torque/pull-test data. From sampling to mass production, WILLELE ensures fast response and consistent quality, with ongoing technical support throughout your supply cycle.

Wire Nuts (Standard & Waterproof) — Frequently Asked Questions

Quick answers on ratings, sizing, installation, environments, and OEM/ODM.

What’s the difference between standard and waterproof wire nuts?
Standard wire nuts are dry-location twist-on connectors for indoor boxes. Waterproof versions are pre-filled with silicone sealant that envelops the splice as you twist, blocking moisture and corrosion for damp/wet locations. Both styles are for copper-to-copper only.
Are they approved for outdoor/wet locations?
Use **waterproof (silicone-filled)** models for wet or damp areas and install the splice inside a suitable enclosure (e.g., a junction box or valve box). Ratings: 600 V building wire (1000 V for signs/luminaires). Not for continuous submersion.
Do I need to pre-twist the conductors?
Pre-twist is not required. Align stripped copper ends, insert fully, and twist clockwise until firm resistance. The deep conical spring forms a uniform connection; finish with a light pull test.
How do I choose the right size?
Match the connector to the AWG combination and wire count. Our series WLE1010 / WLE1011 / WLE1020 / WLE1030 / WLE1040 covers common ranges from small control pairs to larger branch circuits—use the color code and sizing table on this page.
What voltage and temperature ratings apply?
Electrical: 600 V building wire (1000 V signs/luminaires). Waterproof models use a sealant that remains flexible from roughly -45 °F to 400 °F with a connector rating of 105 °C (221 °F). Always verify the model datasheet.
Can I use wire nuts with aluminum or mixed metals?
No. Willele wire nuts are designed for copper-to-copper splices only. Do not mix Cu/Al conductors.
Are wire nuts reusable?
Reuse is not recommended. After removal, install a new connector to ensure correct spring force and, for waterproof models, a fresh sealant envelope.
Winged vs. non-winged—when should I use wings?
Winged styles provide extra torque and grip—useful with gloves or in tight spaces. Non-winged, straight caps are compact for crowded boxes and fixtures.
Do you offer OEM/ODM customization?
Yes. We tailor spring geometry, skirt length, color codes, sealant type/fill (for waterproof), and retail or bulk packaging. Share your AWG ranges, environment, and volumes for samples and a quotation. You can bundle with related accessories like heat-shrink tubing when needed.

What Are Wire Nuts (Standard & Waterproof)?

Wire nuts are twist-on splicing connectors that use an internal conical spring to bite into twisted conductors while the insulating shell encloses the joint. They are used with copper conductors in branch and control circuits. By environment, they fall into two broad groups: Standard (dry/general locations) and Waterproof (pre-filled with sealant for damp/wet locations). In waterproof versions, silicone or gel flows around the splice as you twist to resist moisture and corrosion.

Common Materials (Shell, Spring, Sealant)

Shell (Body): PA66/PP impact-resistant housings; UV-stabilized grades for outdoor exposure, often with anti-slip ribs or extended skirts.

Spring: Conical carbon-steel spring, zinc/nickel plated, providing high pull-out strength and torque retention.

Sealant (Waterproof only): Neutral silicone or petroleum gel; displaces moisture and encapsulates conductors during twist.

Color Cue: Series color codes aid quick size identification (confirm with the sizing table).

Types of Wire Nuts

  • Standard Twist-On: General-purpose caps for dry locations and common AWG combinations.
  • Winged (High-Torque): Extended wings for gloved work and higher torque in tight spaces.
  • High-Capacity / Heavy-Duty: Wider cone for larger bundles or mixed-AWG combinations.
  • Waterproof — Silicone-Filled: Pre-filled sealant for damp/wet locations; seal forms as you twist.
  • Gel-Cap / Inline Kits: Pre-installed pigtails or boots to simplify field retrofits and service.

Evolution & Outlook

From early petroleum gels to modern silicone-filled designs, wire nuts have advanced in installation speed, temperature/UV performance, and pull-out strength while retaining the simple twist-on workflow and clearer size markings.

Ratings & Limits

  • Voltage: 600 V building wire; up to 1000 V for signs/luminaires (model dependent).
  • Temperature: Typical shell rating 105 °C (221 °F); waterproof sealant service window about −45 °F to 400 °F.
  • Ingress: Waterproof types are for damp/wet locations when installed inside a suitable box; not intended for continuous submersion.
  • Conductor: Copper-to-copper only—do not mix copper and aluminum.

Choosing the Right Wire Nut

  1. AWG & Count: Match wire size and bundle to the model table (e.g., WLE1010 / WLE1011 / WLE1020 / WLE1030 / WLE1040).
  2. Environment: Dry/indoor → Standard; damp/wet/outdoor → Waterproof plus UV-stabilized shell as needed.
  3. Ergonomics: Choose winged for gloved or high-torque work; choose compact bodies for crowded boxes.
  4. Compliance: Verify UL/CE and the enclosure’s IP/protection level for the overall installation.

Production Process (At a Glance)

  • Spring Form & Treat: Winding, tempering, and plating to ensure bite and corrosion resistance.
  • Shell Molding: Injection-molded PA/PP with size/color marks and anti-slip ribs.
  • Sealant Fill (Waterproof): Metered silicone/gel fill to fully encapsulate the splice.
  • Assembly & QC: Pull-out, dielectric, torque, and thermal cycling with lot traceability.

Typical Applications

  • Indoor panels, lighting, and equipment control (Standard).
  • Landscape/pathway lighting, irrigation valve boxes, outdoor junction boxes (Waterproof).
  • Signs/luminaires, rooftop equipment, HVAC auxiliaries (use UV-stabilized or waterproof as appropriate).
  • Greenhouse and agricultural control wiring.

Field Advantages

  • Fast: Twist to connect; waterproof versions seal as you twist.
  • Reliable: Spring bite plus insulating shell; sealant envelope for moisture defense.
  • Serviceable: Clear color codes and broad size coverage; replace with a new cap after removal.
  • Compact: Often slimmer than many inline gel splices for box space savings.

Common Installation Mistakes

  • Over-twisting or nicking strands, reducing spring engagement.
  • Under/over-stripping so copper fails to reach the cone or leaves bare copper exposed.
  • Mixing copper with aluminum conductors.
  • Using waterproof caps outside an enclosure or in continuously submerged locations.
  • Reusing removed caps—spring force and sealant coverage are no longer assured.

Identifying Quality Wire Nuts

  • Spring Quality: Uniform temper/plating and consistent pull-out values.
  • Sealant Volume (Waterproof): Full, bubble-free fill that flows around conductors during twist.
  • Body Material: UV-stabilized with crisp markings; UL94 V-2 or better.
  • Certification: UL/CE listing and a clear AWG chart.
  • Torque Feel: Smooth, progressive resistance with no slip—even in gloves.

More Knowledge & Best Practices

  • Standards & Compliance: For sealed connectors in damp/wet locations, see UL 486D. Many models carry 600 V building-wire ratings and up to 1000 V for signs/luminaires (model dependent).
  • Ingress Strategy: Use junction boxes with the correct IP rating and pair entries with cable accessories to keep moisture out of splices.
  • Thermal & UV: In high-sun or rooftop sites, choose UV-stabilized shells and confirm the sealant window (e.g., −45 °F to 400 °F).
  • Conductor Mix: Copper-to-copper only; do not mix Cu/Al. Follow local code when bonding or transitioning systems.
  • Strain Relief & ID: Finish harnesses with color-coded boots or heat shrink tube for pull relief and circuit labeling.
  • Model Selection: For small control pairs choose WLE1010; for larger mixed-AWG bundles choose WLE1020/WLE1040. See PDP sizing tables: WLE1010 · WLE1011 · WLE1020 · WLE1030 · WLE1040.

OEM & ODM from China

WILLELE supports OEM/ODM across Standard and Waterproof lines: spring geometry, skirt length, body color/finish, sealant type and fill, and retail packaging (bags/boxes/blister). We provide UL/CE documentation and lot traceability to meet distributor and retail program requirements.
