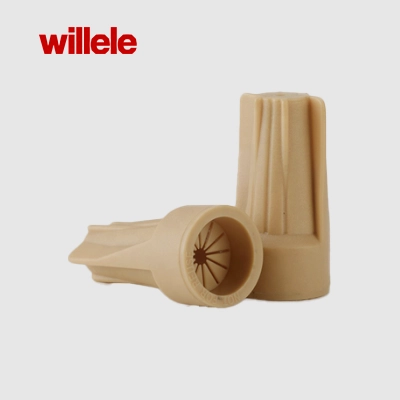

WLE1040 Waterproof Wire Nut — Silicone-Filled Twist-On, 600V
Heavy-duty silicone filled waterproof wire nut for copper-to-copper splicing in harsh, damp locations
Electrical rating 600V (up to 1000V for signs/luminaires); broad working range up to AWG #6 (typ.)
Large, high-torque body Ø20.5 × 41 mm with extra sealant volume; 105 °C temperature rating
Sealant usable −45 °F ~ 400 °F; ideal for multi-conductor outdoor junctions and service work
Overview
WLE1040 is our heavy-duty silicone filled waterproof wire nut for demanding outdoor jobs and multi-conductor splices. The large shell (Ø20.5 × 41 mm) provides high tightening torque and extra sealant volume. During installation, the neutral silicone wets the copper and fills voids to create a continuous moisture barrier, delivering long-term protection in wet or corrosive environments.
Electrical rating: 600V building wire (1000V max for signs/luminaires). Typical wire range: AWG #22 – up to #6 (depends on insulation OD). Temperature rating: 105 °C. Silicone usable range: −45 °F ~ 400 °F. Copper-to-copper only.
Why Choose WLE1040
- Heavy-duty capacity: supports broader wire mixes and higher torque requirements.
- Waterproof assurance: factory silicone fill blocks moisture and corrosive ingress.
- Streamlined workflow: twist to clamp and seal — no heat tools or additional gel packs.
- Wide service window: 105 °C body rating; sealant usable from −45 °F to 400 °F.
- Series consistency: aligned 600V/1000V ratings with WLE1010/1011/1020/1030.
- Field-ready grip: aggressive ribs deliver consistent torque in damp conditions.
Specifications
| Item | Value |
|---|---|
| Type | Silicone-filled waterproof wire nut (twist-on) |
| Max Voltage | 600V building wire (1000V max for signs/luminaires) |
| Wire Range | AWG #22 – up to #6 (copper conductors; depends on insulation OD) |
| Connector Size | Ø20.5 mm × 41 mm |
| Temperature Rating | 105 °C (221 °F) |
| Sealant Range | −45 °F ~ 400 °F |
| Finish / Color | Black / tan (custom colors available) |
| Typical Uses | Large outdoor luminaires, signage, service splices, irrigation/yard boxes |
Selected 600V Wire Combinations
| Type | Examples (AWG) |
|---|---|
| Two conductors | #10 + #10 · #8 + #12 |
| Three conductors | #12 + #12 + #12 · #12 + #18 + #18 |
| Four conductors | 4×#14 · 4×#18 (verify box space) |
Examples are indicative. Actual capacity varies with insulation OD, strand tightness, and available box space. Always perform a pull test after installation.
Installation (Copper/Copper)
- Strip per gauge; keep strands neat and free of nicks.
- Align conductors parallel with even tips; do not pre-twist.
- Twist-on the WLE1040 until firm resistance; silicone will flow to seal the splice.
- Pull test each conductor; re-terminate if any movement is detected.
- Enclose the splice inside a suitable junction box; avoid sharp edges contacting the shell.
Applications
- High-wattage outdoor and architectural lighting
- Signage and display wiring (up to 1000V max)
- Irrigation/yard control boxes and damp-location junctions
- Service/maintenance splices in cabinets and enclosures
FAQ
The large body and higher sealant volume support heavier wire mixes and tougher outdoor conditions.
The silicone fill provides the seal; extra tape is typically unnecessary unless required by code.
For best reliability, use a new connector after removal.
No — copper-to-copper only.
