Closed End Wire Connectors — WLE-CE1 to WLE-CE16
Closed end wire connectors (crimp type), models WLE-CE1 / CE2 / CE3 / CE6 / CE8 / CE13 / CE16
Nylon shell with low-copper tube; install by crimping
Table lists model and dimensions fields for your data
See the Installation steps and FAQ below
Overview
Closed end wire connectors are nylon-insulated caps with an internal copper tube. Insert the wires into the cap and secure the sleeve by crimping for a permanent electrical joint.
Series Table

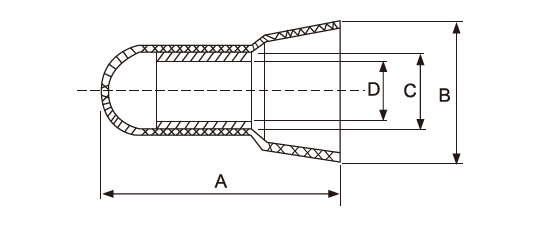

| Model | A (mm) | B (mm) | C (mm) | D (mm) | Suitable Wires (mm) | Suitable Wires (AWG) |
|---|---|---|---|---|---|---|
| WLE-CE1 | 17.8 | 7.2 | 3.6 | 2.5 | 1.25 | 22–16 |
| WLE-CE2 | 21.0 | 8.2 | 4.0 | 2.9 | 2 | 16–14 |
| WLE-CE5 | 22.5 | 9.0 | 4.8 | 3.9 | 5.5 | 12–10 |
| WLE-CE8 | 25.0 | 10.0 | 5.6 | 4.5 | 8 | 8 |
| WLE-CE10 | 24.2 | 11.0 | 6.5 | 5.4 | 10 | 8–6 |
| WLE-CE13 | 25.6 | 11.8 | 7.5 | 6.0 | 13 | 6 |
| WLE-CE16 | 29.5 | 13.5 | 9.3 | 7.5 | 16 | 4 |
Installation
- Strip conductors to the required length; keep strands neat and even.
- Insert wires fully into the connector until they bottom out.
- Crimp the inner sleeve with a suitable crimp tool for the indicated size.
- Verify by a pull test on each conductor; reinsulate if required by code.
FAQ
Do closed end wire connectors require a crimp tool?
Yes. These connectors must be crimped to secure the wires to the internal copper sleeve.
Are they waterproof?
No. They are insulated but not sealed. For sealed joints, use your waterproof wire nut series.
Can they be reused?
No. Once crimped, they are considered permanent and should not be reused.
Which conductors are recommended?
Use copper conductors that match the size range listed for each model.
