Q: What are cable fittings and how do they differ?

Cable fittings are electrical termination components. WILLELE focuses on three groups: cable lugs for end termination to studs or busbars, connecting tubes / compression sleeves for inline splicing or extensions, and mechanical clamps & connectors for bolt-type/parallel-groove joints without crimping.

Q: Which material should I choose — copper, aluminium, or bimetal cable lugs?

Use copper cable lugs with copper conductors for the lowest contact resistance; aluminium cable lugs with aluminium conductors for weight/cost benefits; and bimetal (Cu–Al) cable lugs when transitioning aluminium cables to copper busbars to avoid galvanic corrosion.

Q: How do I size a cable lug or a connecting tube correctly?

Match the product to the cable cross-section (mm²/AWG), barrel/tube inner diameter and the required stud hole. For inline splices, choose a connecting tube / compression sleeve whose crimp range covers the conductor strands. Refer to DT/DTL and GTY/GL/GTL size charts or contact support.

Q: How are cable lugs and compression sleeves installed?

Strip to the specified depth, insert the conductor fully and crimp using the indicated profile (hex/indent/die code). For compression sleeves, crimp from both ends toward the center. Finish with heat-shrink tubing when extra insulation or sealing is required.

Q: When should I use mechanical cable clamps instead of crimped lugs?

Choose mechanical cable clamps and parallel groove clamps when you need a reusable, bolt-tightened joint for field modifications, tapping parallel conductors or grounding. They provide strong mechanical grip and stable conductivity without specialized crimp tools.

Q: What standards and certifications do WILLELE cable fittings meet?

WILLELE cable lugs, connecting tubes and mechanical connectors are tested to IEC 61238-1 for type/performance, comply with RoHS, and use appropriate plating/finish specs (e.g., tin per ISO 2093). Material certificates and inspection data are available for OEM projects.

Q: Do you provide tinned copper cable lugs and DIN thickened types?

Yes. We supply tinned copper cable lugs for corrosion resistance and easier crimping, plus DIN thickened and lengthened variants for higher mechanical strength or special stud spacing, including DT, DT(G), AUS and DIN AUS series.

Q: What are connecting tubes used for and which types are available?

Connecting tubes / compression sleeves create low-resistance inline splices or extensions. Options include copper GT-1 / GTY, aluminium GL-1 / GLB (DIN), and bimetal GTL (oil-sealed) for Cu↔Al transitions. Use crimp dies that match the tube code and conductor size.

Q: Can WILLELE customize cable lugs, connecting sleeves, or mechanical connectors?

Absolutely. We engineer OEM solutions across cable lugs, connecting tubes and mechanical clamps: palm hole size, barrel thickness, bimetal transition area, tin-plating, markings and packaging. Share conductor specs, environment and quantities to receive samples and a quotation.

Willele: Reliable Cable Lugs & Connectors Manufacturer

Willele engineers and supplies a complete range of cable fittings for professional power and control wiring—covering A) Cable Lug, B) Compression Sleeves / Connecting Tubes, and C) Clamps & Mechanical Connectors.
From copper / tinned-copper and aluminium lugs to Cu–Al bimetal transitions, through-type and DIN connecting tubes, and parallel-groove and bolt connectors, our portfolio helps you build safe, tidy, and durable terminations from the panel to the busbar.

Built with quality copper, aluminium, and bimetal materials and finished for reliable conductivity and corrosion resistance, Willele fittings are designed for secure crimping, stable mechanical support, and long service life in industrial and commercial installations. Typical uses include switchboards, machinery wiring, inverter and battery cabinets, and power distribution systems.

Trusted by installers and OEMs worldwide, Willele delivers consistent dimensions, smooth assembly, and dependable electrical performance—so your teams can terminate faster and with confidence.

Get A Quotation Now!

All Cable Lug & Connectors Collection

Cable Lug

Explore copper, tinned-copper, aluminium, and Cu–Al bimetal cable lugs for reliable crimped terminations in panels, busbars, and machinery wiring—available in standard, lengthened, open-type, and mechanical designs.

Compression Sleeves & Connecting Tubes

Through-type and compression tubes for inline splicing and transitions—covering copper, aluminium (DIN), and oil-sealed bimetal constructions for low-resistance, long-life joints.

Clamps & Mechanical Connectors

Mechanical clamping solutions for parallel conductors and bolt-type connections—ideal for field assembly, maintenance, and retrofit upgrades.

Why Choose Willele

Willele designs and manufactures reliable electrical connection components for electrical connection, termination, and power distribution across industrial, commercial, and automation systems.
From copper and aluminium cable lug to connecting tubes and mechanical clamps, Willele supports engineers and panel builders with safe, efficient, and long-lasting wiring solutions.

Proven Quality & Compliance
Manufactured from high-conductivity copper, aluminium, and Cu–Al bimetal materials, all Willele fittings comply with IEC, UL, and RoHS standards. Each component ensures stable electrical contact, excellent corrosion resistance, and mechanical durability in harsh environments.
Complete Product Range
One trusted source for Cable Lugs, Compression Sleeves, and Mechanical Clamps—covering every termination need from switchboards to power cabinets. Our unified dimensions and crimp profiles simplify sourcing and ensure cross-compatibility across systems.
Engineered for Performance
Precision-machined barrels and palms guarantee tight crimping, low contact resistance, and vibration-proof stability. Each fitting undergoes tensile and conductivity testing to achieve consistent electrical and thermal performance.
Fast, Easy Installation
Designed for smooth insertion and crimping using standard tools, Willele fittings save installation time and improve on-site reliability for maintenance teams and contractors.

GET FULL CATALOGUE

Industrial Cable Lug & Connectors for Professional Wiring

Willele supplies a complete selection of industrial-grade cable fittings engineered for safe power termination, reliable current flow, and secure mechanical joints in electrical panels, switchboards, and control cabinets.
The lineup covers copper, aluminium, and Cu–Al bimetal lugs, compression sleeves / connecting tubes, and clamps & mechanical connectors, all precision-machined to ensure low resistance, corrosion protection, and long service life under demanding electrical conditions.
With IEC / RoHS / CE compliance, Willele helps panel builders and OEMs achieve efficient layouts, dependable conductivity, and simplified maintenance in any environment.

Cable Lug

Our range of copper and aluminium cable lug provides safe, permanent terminations for stranded conductors.
Available in tinned, lengthened, DIN, and bimetal Cu–Al types, each lug ensures high-strength crimping, stable conductivity, and resistance to heat and vibration.
Typical applications include switchgear wiring, inverter outputs, and battery connections in industrial systems.

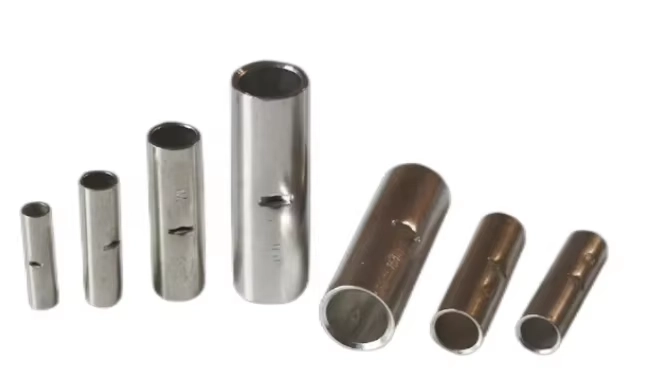

Compression Sleeves & Connecting Tubes

Willele connecting tubes are designed for inline splicing and conductor extension, available in copper, aluminium, and oil-sealed bimetal constructions.
Precision inner bores guarantee tight crimping and minimal voltage drop, while corrosion-resistant finishes ensure reliable service for long-term installations in harsh environments.

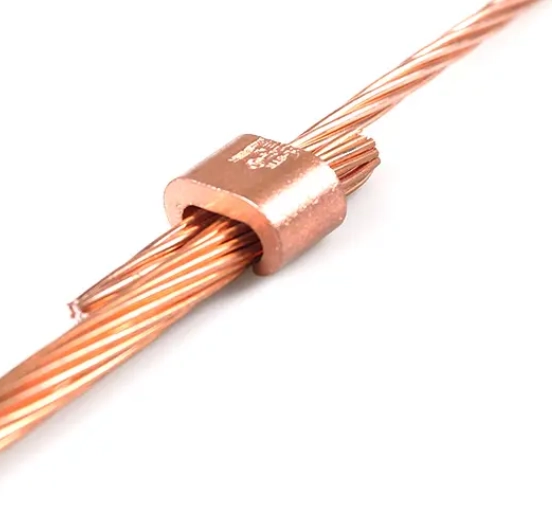

Clamps & Mechanical Connectors

Our mechanical clamps and bolt connectors simplify field assembly and maintenance without soldering or welding.
Choose from parallel-groove clamps, jointing clamps, and bolt-type connectors to achieve strong mechanical grip and stable electrical contact in distribution lines, grounding systems, and power networks.

Specify Your Cable Lugs & Connectors

Durable copper, aluminium, and bimetal cable fittings — including cable lugs, connecting tubes, and mechanical clamps — designed for reliable power connection and termination in industrial and commercial electrical systems.

Get a Quotation Now

More Than a Cable Lug & Connectors Supplier

We don’t just deliver terminals — we help you build reliable, conductive, and durable connections.
From product selection to engineering customization and fast export support, WILLELE keeps your power system performing at its best.

Expert Consultation

From busbar terminations to field splicing, our engineers assess current rating, cable size, conductor type, and installation method.
We recommend proper lug or connector type (copper, aluminium, or bimetal), barrel dimensions, and surface finish to match your mechanical and electrical requirements.

Product Selection Recommendations

We provide exact part matching with details like tube diameter, crimping range, and bolt hole size.
Our team helps you choose between standard, lengthened, or DIN-style cable lug, connecting sleeves, and mechanical clamps, ensuring fast specification turnaround within 12 hours.

Logistics & Shipping Support

We handle export compliance, CE / RoHS documentation, and professional packaging.
Orders are optimized for international freight with custom labeling, palletization, and OEM-neutral boxes, providing efficient and traceable delivery worldwide.

Guidance & Support

During installation, we offer guidance on crimping force, torque, strip length, and joint inspection.
For large-scale projects, Willele provides remote commissioning or on-site technical assistance, helping ensure every connection is safe and stable from assembly to operation.

Cable Fittings — Frequently Asked Questions

Quick answers about cable lug, connecting tubes / compression sleeves, and mechanical clamps & connectors.

What are cable fittings and how do they differ?

Cable fittings are electrical termination components used to join conductors or connect cables to equipment. Willele focuses on three groups: cable lugs (end termination to a stud or busbar), connecting tubes / compression sleeves (inline splicing of conductors), and mechanical clamps & connectors (bolt-type or parallel-groove connections without crimping).

Which material should I choose — copper, aluminium, or bimetal cable lugs?

Use copper cable lugs for Cu conductors and the lowest contact resistance. Choose aluminium cable lugs for Al conductors where weight/cost matter. Select bimetal (Cu–Al) cable lugs when connecting an aluminium cable to copper busbars to prevent galvanic corrosion. Willele bimetal lugs are friction-welded for a permanent bond.

How do I size a cable lug or a connecting tube correctly?

Match the product to the cable’s cross-section (mm² / AWG) and the required stud / palm hole. For inline splices, select a connecting tube / compression sleeve whose inner diameter and crimp range cover the conductor strands. Refer to our size charts for DT/DTL lugs and GTY/GL/GLB/GTL tubes, or contact Willele support for a quick recommendation.

How are cable lug and compression sleeves installed?

Strip to the specified depth, insert the conductor fully, then crimp using the indicated profile (hex/indent/die code). For compression sleeves, crimp from both ends toward the center for uniform compression. Finish with heat-shrink tubing when extra insulation, sealing, or color identification is required.

When should I use mechanical cable clamps instead of crimped lugs?

Choose mechanical cable clamps and parallel groove clamps when you need a reusable, bolt-tightened joint—ideal for field modifications, tapping parallel conductors, or grounding. They provide strong mechanical grip and stable conductivity without specialized crimp tools. See mechanical clamps & connectors.

What standards and certifications do Willele cable fittings meet?

Our cable lugs, connecting tubes, and mechanical connectors are tested to IEC 61238-1 for type and performance, comply with RoHS, and follow relevant plating/finish specs (e.g., tin per ISO 2093). We provide material certificates and inspection data for OEM and project documentation on request.

Do you provide tinned copper cable lugs and DIN thickened types?

Yes. We supply tinned copper cable lugs for corrosion resistance and easier solder-free crimping, plus DIN thickened and lengthened variants for higher mechanical strength or special stud spacing. Explore series such as DT, DT(G), AUS, and DIN AUS on our Cable Lugs page.

What are connecting tubes used for and which types are available?

Connecting tubes / compression sleeves create low-resistance inline splices or extensions. Options include copper GT-1 / GTY, aluminium GL-1 / GLB (DIN), and bimetal GTL (oil-sealed) for Cu–Al transitions. Pair them with crimp dies that match the tube code and conductor size. See Connecting Tubes.

Can Willele customize cable lugs, connecting sleeves, or mechanical connectors?

Absolutely. We engineer OEM solutions for cable lugs, connecting tubes, and mechanical clamps: palm hole size, barrel thickness, bimetal transition area, tin-plating, markings, and packaging. Share conductor specs, environment, and quantities to receive samples and a quotation. Related components like busbar insulators and terminal blocks can be bundled for projects.

What Are Cable Fittings (Lugs, Connecting Tubes & Mechanical Clamps)?

Cable fittings are electrical termination components used to create safe, low-resistance joints between conductors and equipment. Willele focuses on three groups: cable lug (end termination to studs/busbars), connecting tubes / compression sleeves (inline splicing and extensions), and mechanical clamps & connectors (bolt-type/parallel groove joints without crimping). Typical use cases span switchboards, battery and inverter cabinets, control panels, and power distribution lines.

Common Materials & Finishes

Copper: 99.9% high-conductivity copper for copper cable lug (DT series), connecting tubes (GT-1 / GTY), and bolt connectors (T/J). Tin plating improves corrosion resistance and crimp stability.

Aluminium: Lightweight aluminium for aluminium cable lug (DL) and aluminium connecting tubes (GL-1 / GLB DIN). Used in large cross-section conductors and overhead lines.

Bimetal (Cu–Al): Friction-welded bimetal cable lugs (DTL / DTL-2F) and bimetal connecting sleeves (GTL oil-sealed) prevent galvanic corrosion in Cu↔Al transitions.

Hardware & Coatings: Brass/steel fasteners for mechanical clamps (WCJB, CAPG/APG, T/J), surface finishes per ISO 2093 (tin) for durability in harsh environments.

Main Types of Cable Fittings

Cable Lug: DT (plain copper), DT(G) (tinned), AUS / DIN AUS (thickened/DIN), DL (aluminium), DTL / DTL-2F (bimetal Cu–Al), OT (open/fork), C45 (plug-in pin).
Connecting Tubes / Compression Sleeves: GT-1 / GTY (copper), GL-1 / GLB (aluminium, DIN), GTL (bimetal, oil-sealed).
Mechanical Clamps & Connectors: WCJB (jointing clamp), CAPG (Cu–Al parallel groove clamp), APG (Al PG clamp), T/J (copper bolt connector).

Evolution & Outlook

Modern cable lug and connectors have evolved toward higher crimp integrity, stable temperature rise, and corrosion-resistant finishes. DIN-style thickened palms, friction-welded bimetal transitions, and oil-sealed sleeves (GTL) extend service life while simplifying installation and maintenance.

Ratings, Standards & Limits

Voltage: Commonly up to 1000 V AC/DC in low-voltage distribution (model dependent).
Current & Thermal: Sized to conductor cross-section; verify temperature rise under rated load.
Standards: Type/performance tests per IEC 61238-1; materials/compliance per RoHS.
Compatibility: Match copper cables to copper lugs; aluminium to aluminium; use bimetal for Cu↔Al transitions.

How to Choose the Right Fitting

Conductor Size & Type: Match mm²/AWG and strand class to the barrel ID / tube ID and stud hole (for lugs).
Material: Copper for Cu conductors, aluminium for Al conductors, bimetal for mixed interfaces.
Installation Method: Crimped termination (lugs/tubes) vs. mechanical cable clamp (reusable bolted joints, PG clamps).
Environment: Consider corrosion, vibration, temperature; prefer tinned finishes and thickened/DIN palms where required.
Standards & Docs: Request IEC/RoHS reports and size charts; ensure tool/die compatibility.

Production Process (At a Glance)

Raw Metal Forming: Precision tube/extrusion and palm machining for DT/DTL/DL lugs; tight ID tolerance for GTY/GL tubes.
Bimetal Welding: Friction-welded Cu–Al transitions (DTL, GTL) with 100% bond inspection.
Surface Finish: Tin plating per ISO 2093; cleaning and passivation for consistent contact resistance.
QC & Type Tests: Pull-out, conductor slip, temperature rise, salt-spray, and dielectric checks with lot traceability.

Typical Applications

Switchgear, MCCs, and power distribution panels (DT/DT(G)/AUS/DIN AUS).
Battery banks, inverters, and DC bus connections (DTL bimetal; GTL sleeves for Cu↔Al).
Overhead or outdoor distribution lines (CAPG/APG parallel groove clamps; DL/GL for aluminium systems).
Industrial machinery and control cabinets (GT-1/GTY splicing; T/J bolt connectors; OT fork lugs).

Field Advantages

Low Resistance: Correctly sized barrels/tubes and calibrated crimp profiles minimize losses.
Mechanical Strength: Thickened/DIN palms and bimetal bonds withstand vibration and thermal cycling.
Serviceability: Mechanical cable clamps and parallel groove clamps are reusable for field modifications.
System Integration: Pair with busbar insulators and terminal blocks for tidy, safe layouts.

Common Installation Mistakes

Using copper lugs on aluminium conductors (or vice versa) without bimetal interfaces.
Undersized/oversized barrels or wrong crimp dies causing conductor slip or hot spots.
Skipping tin-plated finishes in corrosive/condensing environments.
Over-torquing or uneven tightening on mechanical clamps; not cleaning contact surfaces.
Insufficient strain relief or lack of heat-shrink tubing for insulation/sealing.

Identifying Quality Cable Lugs & Connectors

Material & Finish: Oxygen-free copper/aluminium with uniform tin plating and clean bores.
Bimetal Quality: Continuous friction-welded interface with verified bond area (DTL/GTL).
Dimensional Consistency: Accurate barrel ID, stud hole, and palm thickness (DIN options available).
Type Tests: Evidence of IEC 61238-1 performance, pull-out, and temperature-rise results.
Documentation: Clear size charts, tool/die codes, and RoHS/CoC for project submittals.

More Knowledge & Best Practices

Standards & Compliance: See IEC 61238-1 for compression and mechanical connectors tests; for lug terminations, also consult UL 486A/B (regional).
Product Families: Explore Cable Lugs, Connecting Tubes, and Mechanical Clamps & Connectors.
Layout & Safety: Combine with busbar insulators and terminal blocks for safe spacing and clean routing.
Sealing & ID: Finish joints with heat-shrink tube for insulation, strain relief, and circuit identification.
Selection Guide: For Cu conductors choose DT/DT(G)/AUS/DIN AUS; for Al conductors choose DL/GL-1/GLB; for Cu↔Al transitions choose DTL/DTL-2F or GTL sleeves.

OEM & ODM from China

WILLELE supports OEM/ODM across cable lugs, connecting tubes, and mechanical clamps: palm hole and barrel thickness, DIN/thickened options, bimetal transition area, tin plating/marking, and custom packaging. We provide IEC/RoHS documentation and lot traceability to meet distributor and project requirements—contact us for samples and a quotation.
