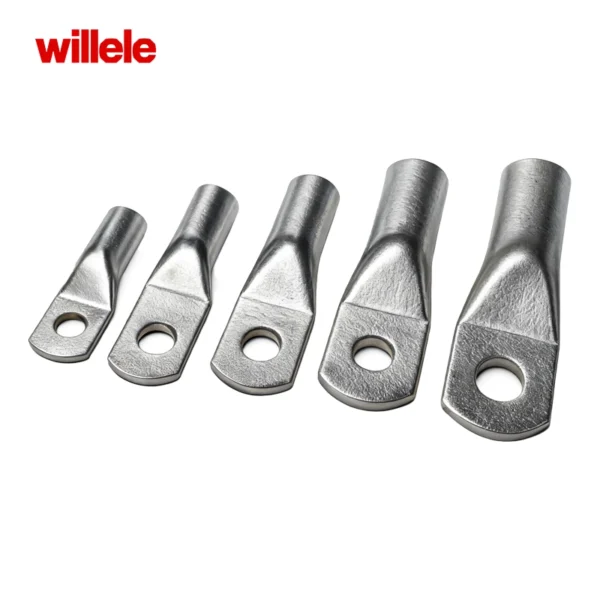

Thickened Tinned Copper Cable Lugs — DIN AUS Series
DIN AUS series thickened copper cable lug designed to the DIN standard with a reinforced thickened barrel and palm.
Manufactured from 99.9 % T2 copper, fully tin-plated for conductivity and corrosion resistance.
Wide current range 6 mm² – 630 mm², covering industrial and power-distribution applications.
Compatible with European DIN crimp dies and busbar mounting standards.
Overview — DIN Standard Thickened Copper Cable Lugs
The DIN AUS Series are tinned thickened copper cable lug engineered to meet DIN specifications.
Their thickened tube and palm design ensures high mechanical strength, stable crimping, and low
electrical resistance. Each lug is produced from high-conductivity T2 copper and tin-coated to prevent oxidation,
ensuring reliable long-term connections under harsh industrial conditions.
Material: Tinned T2 copper |
Type: DIN standard thickened tube lug |
Size Range: DIN AUS-6 to DIN AUS-630 |
Application: Power distribution / switchgear / battery systems
Applications
- Switchboards and power distribution equipment built to DIN standards
- Battery and UPS cabling requiring thickened tinned copper lugs
- Industrial installations using European terminal and busbar systems
- Heavy-duty mechanical and electrical connections
Technical Data — Dimensions (mm)
Each model lists its available stud holes (Φ), palm diameter (D), barrel I.D. (d), and overall length (L).
| Type | Φ (Stud Options) | D | d | L |
|---|---|---|---|---|
| DIN AUS-6 | Φ5.2, Φ6.2, Φ8.2 | 5.5 | 4.1 | 37.5 |
| DIN AUS-10 | Φ6.2, Φ8.2 | 6.5 | 5.1 | 37.5 |
| DIN AUS-16 | Φ6.2, Φ8.2, Φ10.5 | 8.5 | 5.8 | 48 |
| DIN AUS-25 | Φ6.2, Φ8.2, Φ10.5 | 10.0 | 7.3 | 49 |
| DIN AUS-35 | Φ6.2, Φ8.2, Φ10.5, Φ12.5 | 12.5 | 8.7 | 53 |
| DIN AUS-50 | Φ8.2, Φ10.5, Φ12.5 | 14.5 | 10.5 | 65 |
| DIN AUS-70 | Φ8.2, Φ10.5, Φ12.5 | 16.5 | 12.1 | 68 |
| DIN AUS-95 | Φ10.5, Φ12.5 | 18.5 | 13.7 | 78 |
| DIN AUS-120 | Φ12.5, Φ16.5 | 21.0 | 16.2 | 86 |
| DIN AUS-150 | Φ12.5, Φ16.5 | 23.5 | 17.7 | 95 |
| DIN AUS-185 | Φ16.5 | 25.5 | 19.7 | 101 |
| DIN AUS-240 | Φ16.5 | 29.0 | 22.2 | 111 |
| DIN AUS-300 | Φ16.5, Φ20.5 | 30.0 | 25.3 | 119 |
| DIN AUS-400 | Φ16.5, Φ20.5 | 38.0 | 30.5 | 140 |
| DIN AUS-500 | Φ16.5, Φ20.5, Φ22.5 | 42.0 | 34.0 | 150 |
| DIN AUS-630 | Φ20.5, Φ22.5 | 44.0 | 34.5 | 160 |
Installation Notes
- Strip the insulation and insert the conductor fully before crimping.
- Use DIN-compatible dies to achieve rated pull-out strength and low resistance.
- Tighten to the recommended torque on busbars or switch terminals.
