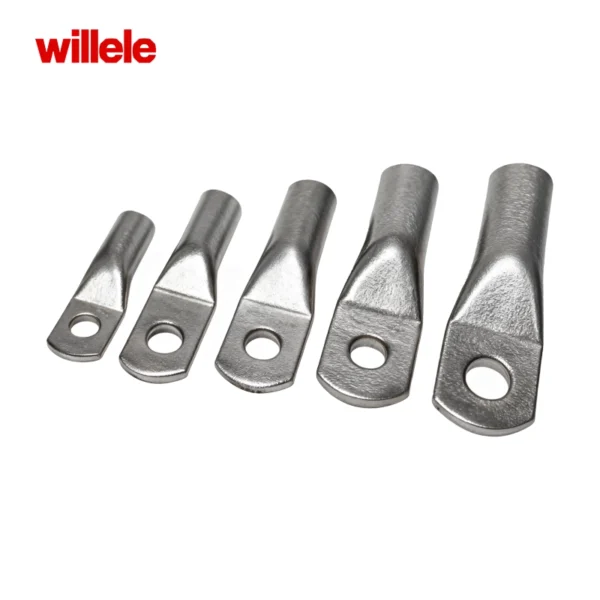

Tinned Copper Cable Lugs — AUS Series (Thickened Type)
AUS tinned copper cable lugs with thickened palm/barrel for heavy-duty connections.
Tin plating delivers low contact resistance and strong corrosion protection.
Multiple stud-hole options (Φ5.2–Φ20.5) across 6–630 mm² sizes.
Ideal for switchgear, battery/UPS cabinets and power distribution panels.
Overview — Tinned Copper Cable Lugs (Thickened AUS)
The AUS Series are heavy-duty tinned copper cable lugs with a thickened design for
robust mechanical strength and low electrical resistance. Made from high-conductivity copper and fully tin plated,
AUS lugs provide durable connections for power distribution, control panels and battery systems.
Each size offers one or more stud hole (Φ) options for easy mounting on busbars and terminals.
Material: Tinned high-conductivity copper |
Type: Thickened copper tube lug |
Range: AUS-6 ~ AUS-630 (Φ options listed) |
Applications: Switchgear, UPS/battery links, power panels
Applications
- Power distribution boards and control cabinets
- Battery/UPS cabinets requiring tinned copper cable lugs
- Industrial wiring where a thickened copper terminal is preferred
Complete Size Table
Dimensions (mm): Φ options / D (palm) / d (barrel I.D.) / L (overall).
| Type | Φ (stud options) | D | d | L |
|---|---|---|---|---|
| AUS-6 | Φ5.2, Φ6.2, Φ8.2 | 5.5 | 4.1 | 37.5 |
| AUS-10 | Φ6.2, Φ8.2 | 6.5 | 5.1 | 37.5 |
| AUS-16 | Φ6.2, Φ8.2, Φ10.5 | 8.0 | 6.0 | 47 |
| AUS-25 | Φ6.2, Φ8.2, Φ10.5 | 10.5 | 8.0 | 52 |
| AUS-35 | Φ6.2, Φ8.2, Φ10.5, Φ12.5 | 12.5 | 9.5 | 55 |
| AUS-50 | Φ8.2, Φ10.5, Φ12.5 | 14.5 | 10.9 | 69 |
| AUS-70 | Φ8.2, Φ10.5, Φ12.5 | 16.5 | 12.7 | 72 |
| AUS-95 | Φ10.5, Φ12.5 | 19 | 14.8 | 80 |
| AUS-120 | Φ12.5, Φ16.5 | 20.5 | 16.1 | 86 |
| AUS-150 | Φ12.5, Φ16.5 | 23.5 | 18 | 95 |
| AUS-185 | Φ16.5 | 26 | 20.6 | 100 |
| AUS-240 | Φ16.5 | 28 | 22.4 | 112 |
| AUS-300 | Φ16.5, Φ20.5 | 30 | 23.6 | 119 |
| AUS-400 | Φ16.5, Φ20.5 | 34 | 26 | 140 |
| AUS-500 | Φ16.5, Φ20.5 | 38 | 29 | 150 |
| AUS-630 | Φ20.5 | 45 | 35 | 160 |
Installation Notes
- Strip insulation and fully insert the conductor into the barrel before crimping.
- Use matched hex/indent dies to achieve rated pull-out strength and low resistance.
- Mount with the specified stud size and torque for a secure, durable joint.
