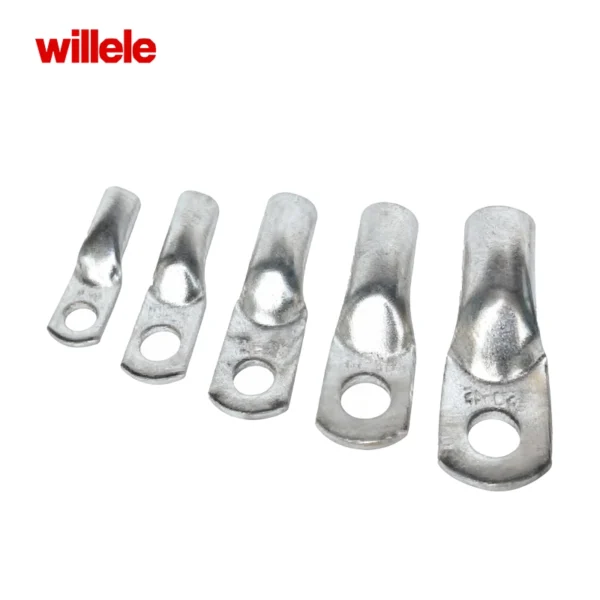

Copper Connecting Terminals — JG Series
JG copper terminals are precision-formed lugs made from high-conductivity T2 copper.
Tin-plated surface ensures excellent corrosion resistance and low contact resistance.
Available with multiple stud hole diameters for Φ5.2 – Φ20.5 mm.
Ideal for switchgear, control panels, and electrical power distribution connections
Overview — Copper Connecting Terminals
The JG Series are copper connecting terminals designed for high-reliability
terminations in distribution and control systems. Made from T2 copper and tin-plated for
enhanced corrosion resistance, these lugs ensure long-term electrical stability and efficient current flow.
Each type offers multiple stud hole (Φ) options to accommodate different bolt sizes and
mounting configurations. The JG terminals are widely used in switchboards, control panels, and power-supply systems
requiring secure compression terminations.
Material: T2 high-conductivity copper (tin-plated) |
Type: Copper tube terminal |
Range: JG-6 ~ JG-630 |
Applications: Power and control wiring terminations
Applications
- Power distribution cabinets and busbar terminations
- Switchgear, control panels, and automation systems
- Battery systems and energy-storage cabinets
- Any installation requiring tinned copper connecting terminals
Technical Data
Dimensions of JG Series copper connecting terminals:
| Type | Φ (stud options) | D | d | L |
|---|---|---|---|---|
| JG-6 | Φ5.2, Φ6.2, Φ8.2 | 5.5 | 4.1 | 32 |
| JG-10 | Φ6.2, Φ8.2 | 8 | 6.6 | 39 |
| JG-16 | Φ6.2, Φ8.2, Φ10.5 | 9 | 7 | 41 |
| JG-25 | Φ6.2, Φ8.2, Φ10.5 | 9 | 7 | 46 |
| JG-35 | Φ6.2, Φ8.2, Φ10.5, Φ12.5 | 10.5 | 8.5 | 52 |
| JG-50 | Φ8.2, Φ10.5, Φ12.5 | 12 | 9.8 | 55 |
| JG-70 | Φ8.2, Φ10.5, Φ12.5 | 14.5 | 11.9 | 62 |
| JG-95 | Φ10.5, Φ12.5 | 16 | 13 | 66 |
| JG-120 | Φ12.5, Φ16.5 | 19 | 15.4 | 73 |
| JG-150 | Φ12.5, Φ16.5 | 20.5 | 16.7 | 80 |
| JG-185 | Φ16.5 | 23.5 | 19.3 | 86 |
| JG-240 | Φ16.5 | 26 | 21.2 | 94 |
| JG-300 | Φ16.5, Φ20.5 | 30 | 24 | 103 |
| JG-400 | Φ16.5, Φ20.5 | 34 | 27.6 | 113 |
| JG-500 | Φ16.5, Φ20.5 | 38 | 31.6 | 124 |
| JG-630 | Φ20.5 | 45 | 37.6 | 140 |
Installation Notes
- Insert stripped cable into the lug barrel fully before crimping.
- Use matched dies and crimping tools for each JG terminal size.
- After crimping, ensure clean contact surface before tightening the stud connection.
