Copper Connecting Tubes — GTY Series
Copper connecting tubes for splicing round power cables with stable, low-resistance compression joints.
Manufactured from high-conductivity copper and tin-plated for corrosion protection.

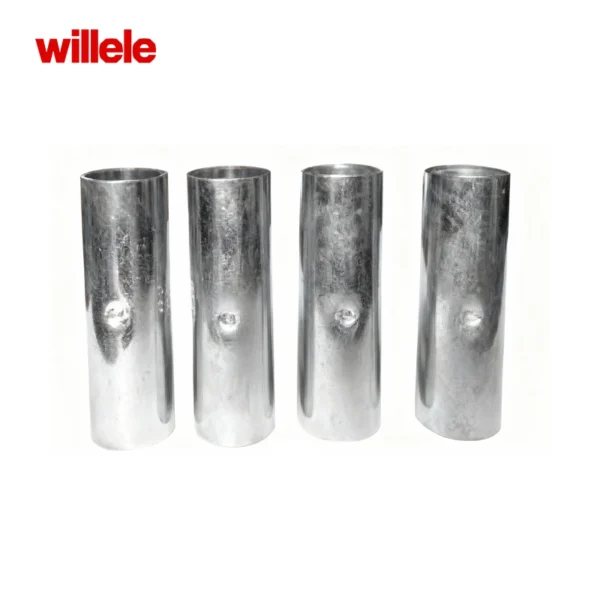

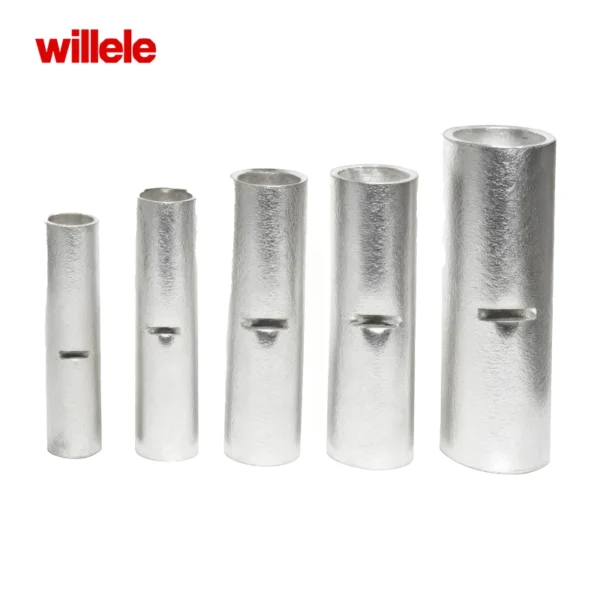

Smooth barrel for reliable crimping with hex/indent dies; supports GTY-1 / GTY-2 variants.
Full size range GTY-1.5 to GTY-630 with complete D / d / L dimensions.
Overview — Copper Connecting Tubes
The GTY Series are copper connecting tubes (splices) designed for
reliable cable-to-cable joints in distribution equipment and control cabinets. Each sleeve is made from
high-purity copper and tin plated to ensure low contact resistance and long-term corrosion
protection. Compatible with standard compression tooling (hex / indent), the GTY range supports
typical round copper conductors. Variants GTY-1 and GTY-2 are available to
suit different wiring preferences while keeping consistent electrical performance.
Material: Tinned Copper |
Type: Compression splice tube (GTY-1 / GTY-2) |
Crimping: Hex / Indent |
Range: GTY-1.5 ~ GTY-630
Applications
- Cable splicing in power distribution and control panels
- UPS / battery systems and general electrical installations
- Where compact, low-resistance copper connecting tubes are required
Complete Size Table
Dimensions (mm) shown as D / d / L for quick selection and die matching.
| Type | D (mm) | d (mm) | L (mm) |
|---|---|---|---|
| GTY-1.5 | 3.5 | 2.1 | 20 |
| GTY-2.5 | 4.0 | 2.5 | 20 |
| GTY-4 | 4.8 | 3.4 | 20 |
| GTY-6 | 5.5 | 4.1 | 25 |
| GTY-10 | 6.5 | 5.1 | 30 |
| GTY-16 | 8.0 | 6.4 | 35 |
| GTY-25 | 9.0 | 7.0 | 40 |
| GTY-35 | 10.5 | 8.5 | 45 |
| GTY-50 | 12.0 | 9.8 | 50 |
| GTY-70 | 14.5 | 11.9 | 55 |
| GTY-95 | 16.0 | 13.0 | 55 |
| GTY-120 | 19.0 | 15.4 | 60 |
| GTY-150 | 20.5 | 16.7 | 65 |
| GTY-185 | 23.5 | 19.3 | 70 |
| GTY-240 | 26.0 | 21.2 | 75 |
| GTY-300 | 30.0 | 24.0 | 80 |
| GTY-400 | 34.0 | 27.6 | 85 |
| GTY-500 | 38.0 | 31.6 | 90 |
| GTY-630 | 45.0 | 37.6 | 95 |
Installation Notes
- Strip cable ends; insert fully into the connecting tube before crimping.
- Use matched hex or indent dies to achieve rated pull-out strength and low resistance.
- Apply insulating sleeve/heat-shrink as required after compression.
