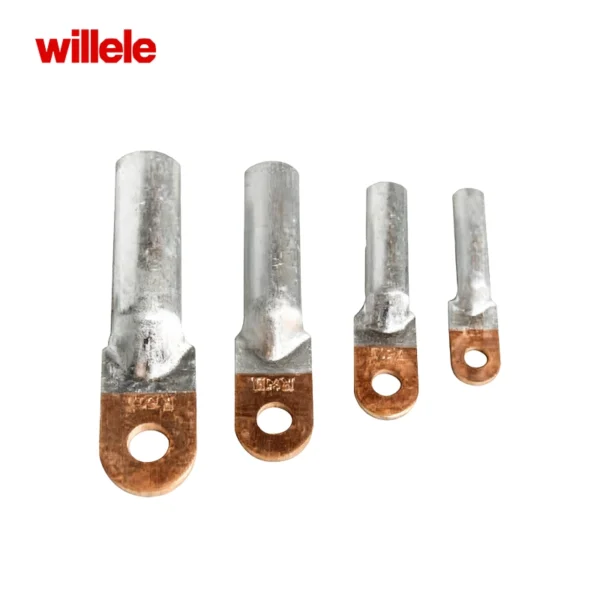

Bimetal Cable Lugs — DTL-1 Series (Copper–Aluminium)

DTL-1 bimetal cable lugs for transitioning from aluminium conductors to copper busbars/studs.
Friction-welded Al barrel to Cu palm offers low resistance and galvanic-corrosion resistance.
Clear Φ / D / d / L / L1 / B matrix for quick die and hardware selection.
Used in switchgear, transformers, UPS/battery cabinets and outdoor distribution

Overview — DTL-1 Bimetal Cable Lugs

The DTL-1 Series are friction-welded bimetal cable lugs designed to connect
aluminium conductors to copper busbars or studs. The barrel is high-conductivity
aluminium (L3) and the palm is copper (T2); the solid-phase weld ensures excellent electrical performance, strong
mechanical integrity and resistance to galvanic corrosion.

Type: Copper–aluminium bimetal cable lug (DTL-1) |
Materials: Barrel—Al (L3) / Palm—Cu (T2), friction-welded |
Finish: Cleaned and anti-oxidation treated |
Applications: Transition joints in panels, switchgear, transformers and feeders

Technical Data — Dimensions (mm)

Type	Φ	D	d	L	L1	B
DTL-1-10	8.5	10	6	68	28	16
DTL-1-16	8.5	11	6	70	30	16
DTL-1-25	8.5	12	7	75	33	18
DTL-1-35	10.5	12	8.5	85	34	20.5
DTL-1-50	10.5	14	9.8	90	40	23
DTL-1-70	12.5	16	11.5	102	48	26
DTL-1-95	12.5	18	13.5	112	50	28
DTL-1-120	14.5	20	15	120	52	30
DTL-1-150	14.5	22	16.5	126	56	34
DTL-1-185	16.5	25	18.5	135	65	37
DTL-1-240	16.5	27	21	145	60	40
DTL-1-300	21	31	23.5	165	65	50
DTL-1-400	21	38	26	190	75	60
DTL-1-500	21	47	29	220	85	80
DTL-1-630	21	54	35	250	85	100

Installation Notes

Use with aluminium conductors and copper termination hardware.
Brush aluminium strands clean and use oxide-inhibiting compound before insertion.
Crimp with matched dies along the barrel; mount with the specified stud size (Φ) and torque.
