WLE1010 Waterproof Wire Nut — Silicone-Filled Twist-On, 600V
Silicone-filled waterproof wire nut for copper-to-copper splicing
Rated 600V (up to 1000V for signs/luminaires); AWG #22–#12
Compact Ø12 × 23.8 mm body; 105 °C temp rating; sealant −45 °F ~ 400 °F
Fast, tool-free installs for outdoor/damp-location junctions, lighting & signage
Overview

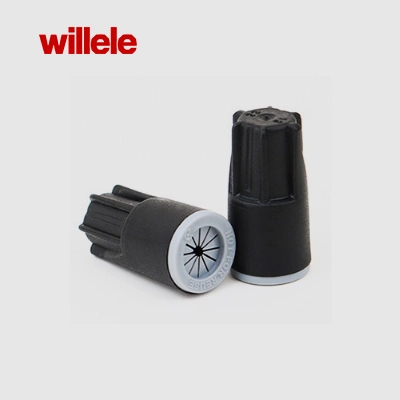

This waterproof wire nut WLE1010 is a silicone-filled, twist-on connector engineered for copper-to-copper splices. During tightening, the neutral silicone flows to wet the conductors and fill voids, establishing a continuous moisture barrier. The ribbed shell ensures firm torque even with wet or gloved hands. Its compact body (Ø12 × 23.8 mm) fits easily inside tight luminaire compartments and junction boxes.
Electrical rating: 600V building wire (1000V max for signs/luminaires). Wire range: AWG #22–#12. Temperature rating: 105 °C. Silicone sealant usable range: −45 °F ~ 400 °F.
Waterproof Wire Nut Features
- Tool-free & fast — twist to clamp and seal in one step; ideal for field work.
- Reliable waterproofing — factory silicone fill blocks moisture and corrosion.
- Compact footprint — fits crowded boxes; reduces rework time.
- Wide service window — 105 °C body; sealant usable −45 °F to 400 °F.
- Material fit — specified for copper/copper only to avoid galvanic issues.
- Field-friendly grip — aggressive ribs deliver consistent torque in damp conditions.
Specifications
| Item | Value |
|---|---|
| Max Voltage | 600V building wire (1000V max for signs/luminaires) |
| Wire Range | AWG #22 – #12 (copper conductors) |
| Connector Size | Ø12 mm × 23.8 mm |
| Type | Silicone-filled waterproof wire nut, twist-on |
| Temperature Rating | 105 °C (221 °F) |
| Sealant Range | −45 °F ~ 400 °F |
| Finish / Color | Black / gray (custom colors on request) |
| Typical Uses | Outdoor lighting, signage, irrigation controls, damp-location junctions |
Selected 600V Wire Combinations
| Type | Examples (AWG) |
|---|---|
| Single conductor | 1×#12 |
| Two conductors | #18 + #18 · #14 + #16 · #12 + #20 · 2×#16 |
| Three conductors | #14 + #20 + #20 · #14 + #18 + #18 · 3×#18 |
| Fine pairs | 2×#22 |
Examples are indicative. Actual capacity depends on insulation OD, strand tightness, and available box space. Always perform a pull test.
Installation (Copper/Copper)
- Strip per gauge; keep strands neat and avoid nicks.
- Align conductors in parallel with even tips. Do not pre-twist.
- Twist-on the waterproof wire nut until firm resistance is reached; silicone will flow around the splice.
- Pull test each conductor individually; re-terminate if any movement is detected.
- Enclose inside the junction box; prevent sharp edges from bearing on the shell.
Applications
- Outdoor luminaires, landscape lighting, decorative fixtures
- Signage and display wiring (up to 1000V max)
- Irrigation/yard control boxes and damp-location junctions
- Service/maintenance splices in cabinets and enclosures
FAQ
For best reliability, use a new connector after removal.
The silicone fill provides sealing; additional tape is usually unnecessary unless required by code.
No. Use copper-to-copper only.
Not required. Align and twist the connector so the spring and sealant set the splice.
