Vinyl Wire End Cap — WLE-V Series (PVC)
Vinyl wire end cap (PVC) protective covers — WLE-V series
Dimensions and terminal specs listed exactly as provided
Push-on fit; choose size by terminal spec (mm) and dimensions
See the Series Table, installation notes, and FAQ
Overview
Vinyl wire end caps (PVC) used as protective covers. Select by terminal spec (mm) and the dimensional values below.

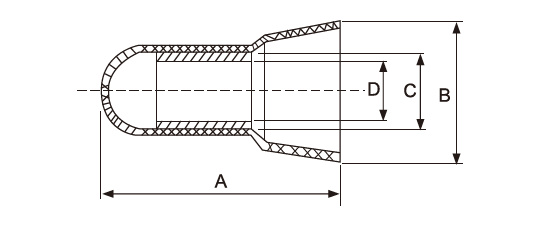

Series Table
| Model | D1 (mm) | D2 (mm) | D3 (mm) | L (mm) | t (mm) | For Terminal Spec. (mm) |
|---|---|---|---|---|---|---|
| WLE-V-1.25 | 2.8 | 3.3 | 3.1 | 13±2.0 | 0.6 | 1.25 |
| WLE-V-2 | 3.3 | 4.5 | 3.7 | 14 | 0.7 | 2 |
| WLE-V-3.5 | 4.2 | 5.7 | 4.1 | 17 | 0.8 | 3.5 |
| WLE-V-5.5 | 4.8 | 5.7 | 5.2 | 17 | 0.8 | 5.5 |
| WLE-V-8 | 6.2 | 7.2 | 6.2 | 19 | 1.0 | 8 |
| WLE-V-14 | 7.5 | 10 | 8 | 25±2.4 | 1.4±0.2 | 14 |
| WLE-V-22 | 10.5 | 12 | 9.5 | 30 | 1.2 | 22 |
| WLE-V-38 | 12.5 | 14 | 11.8 | 34 | 1.5 | 38 |
| WLE-V-60 | 15 | 16.8 | 13.5 | 39 | 1.5 | 60 |
| WLE-V-80 | 17 | 19 | 16 | 47±3.0 | 1.6±0.4 | 80 |
| WLE-V-100 | 19 | 22 | 18 | 54 | 1.7 | 100 |
| WLE-V-125 | 21 | 24 | 20 | 57 | 1.8 | 125 |
| WLE-V-150 | 23 | 24.5 | 22 | 65 | 2.0 | 150 |
| WLE-V-200 | 27 | 32 | 24 | 65 | 2.0 | 200 |
| WLE-V-250 | 29 | 38 | 26.5 | 77±4.0 | 2.5±0.6 | 250 |
| WLE-V-325 | 29 | 38 | 29 | 77 | 2.5 | 325 |
| WLE-V-400 | 39 | 44 | 37 | 86 | 2.5 | 400 |
| WLE-V-500 | 40.5 | 45 | 40.5 | 86 | 2.5 | 500 |
| WLE-V-630 | 47 | 52 | 45 | 92 | 2.5 | 630 |
Installation
- Choose the cap size by the terminal spec (mm) and confirm fit with D1/D2/D3.
- Push the cap over the lug/terminal until seated; ensure full coverage.
- Verify retention and clearance per your application.
FAQ
Are these vinyl wire end caps adhesive lined?
No. These are PVC caps; they are not adhesive-lined or heat-shrink.
How do I select between close sizes (e.g., V-250 vs V-325)?
Use the “For Terminal Spec.” column first, then match D1/D2/D3 and length L to your terminal geometry.
Can they be reused?
Re-use depends on application wear and deformation. For critical applications, use new caps.
