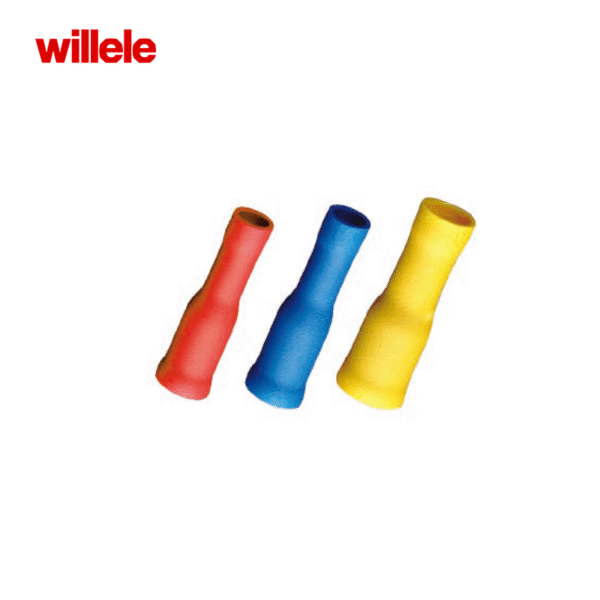

Insulated Bullet Receptacle Disconnectors — FRD Series

Pre-insulated bullet receptacle disconnectors (female bullet terminals) for 0.5–6 mm² (22–10 AWG).
Color-coded vinyl sleeves ensure quick wire size identification and insulation protection.
Designed to mate with MPD insulated bullet disconnectors, offering secure and vibration-resistant male-female connections.

Overview

The FRD Series insulated bullet receptacle disconnectors provide safe, quick-connect female terminals designed to mate precisely with male bullet disconnectors.
Available for 22–10 AWG (0.5–6 mm²), these insulated bullet receptacle disconnectors feature durable vinyl insulation and tin-plated brass barrels for
secure crimping, low contact resistance and long-term stability in automotive, industrial and control applications.

Color-coded insulation (red, blue, yellow) indicates wire section range.
Precision barrel and socket maintain firm contact and easy disconnection.
Fully insulated body enhances electrical safety and vibration resistance.
Compatible with MPD male bullet disconnectors of matching size.

Specifications (Complete Series)

Model	Thickness (mm)	bØ (mm)	F (mm)	DØ (mm)	dØ (mm)	L (mm)	Color / Section
0.5–1.5 mm² (22–16 AWG) — Imax 10 A
FRD1.25-156	0.4	4.0	13.0	2.7	1.7	24.5	Red
1.5–2.5 mm² (16–14 AWG) — Imax 15 A
FRD2-156	0.4	4.0	6.3	3.3	2.3	24.5	Blue
FRD2-195	0.4	5.0	7.0	3.3	2.3	25.5	Blue
4–6 mm² (12–10 AWG) — Imax 24 A
FRD5.5-195	0.4	5.0	7.0	4.5	3.4	29.5	Yellow

Dimensions transcribed from your FRD catalog. Ensure bullet diameter matches the corresponding MPD male terminal.

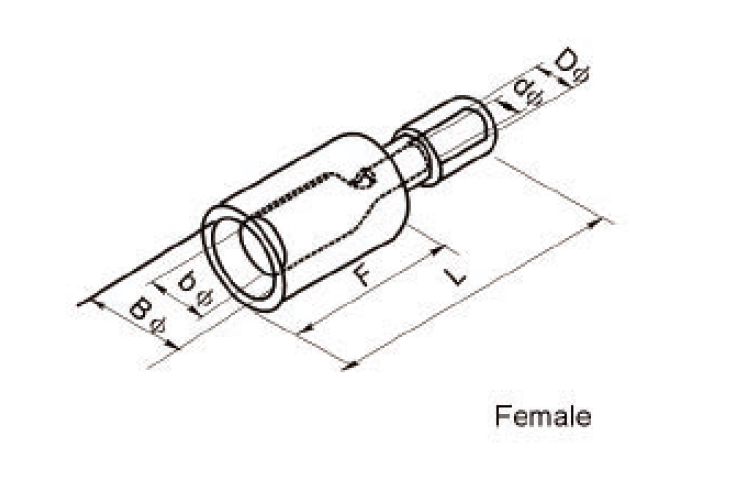

Dimension

insulated bullet receptacle disconnectors size

Ordering Guide

Match your wire section (AWG/mm²) and bullet diameter to select the proper FRD model.
WILLELE offers insulated bullet receptacle disconnectors in red, blue and yellow sections
for 22–10 AWG, supporting currents from 10 A to 24 A.
