Twin Insulated Cord End Terminals — TE Series
Twin insulated cord end terminals (twin wire ferrules) for crimping two conductors into one ferrule: 2×0.5–2×16 mm².
Tin-plated copper tube with color-coded insulating collar; rated 105 °C / 300 V.
Ideal for PLC/terminal blocks where two wires must land in a single connection.
Overview
WILLELE TE Series twin insulated cord end terminals (twin wire ferrules) allow two conductors to be crimped into a single,
neat termination for terminal blocks and PLC wiring. The tin-plated copper tube and color-coded insulating collar ensure low resistance,
easy insertion and reliable strain relief. Rated 105 °C, Ui=300 V.
- Conductor range: 2×0.5 to 2×16 mm².
- Pre-insulated collar supports strands and prevents splaying.
- Speeds up daisy-chain and parallel connections in control panels.
Specifications (Complete List)

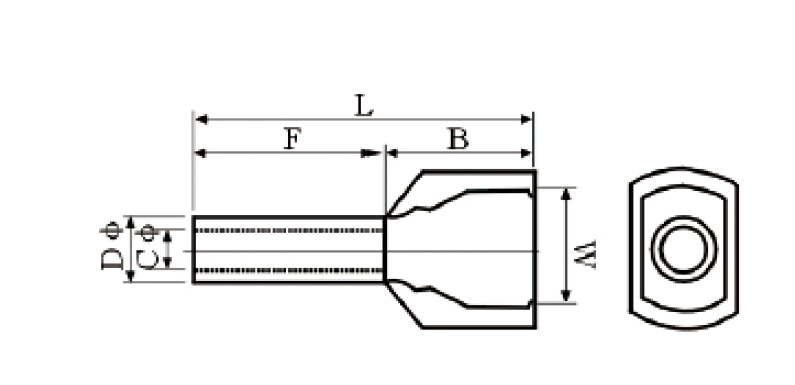

| Model | Conductor (mm²) | F (mm) | L (mm) | W (mm) | B (mm) | DØ (mm) | CØ (mm) | Color |
|---|---|---|---|---|---|---|---|---|
| TE 0508 | 2 × 0.5 | 8.0 | 14.5 | 5.0 | 6.5 | 1.8 | 1.5 | White |
| TE 7508 | 2 × 0.75 | 8.0 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | Blue |
| TE 7510 | 2 × 0.75 | 10.0 | 16.7 | 5.5 | 6.7 | 2.1 | 1.8 | Gray |
| TE 1008 | 2 × 1.0 | 8.0 | 15.1 | 5.5 | 7.1 | 2.3 | 2.0 | Red |
| TE 1010 | 2 × 1.0 | 10.0 | 17.1 | 5.5 | 7.1 | 2.3 | 2.0 | Red |
| TE 1508 | 2 × 1.5 | 8.0 | 15.5 | 6.4 | 7.2 | 2.6 | 2.3 | Black |
| TE 1512 | 2 × 1.5 | 12.0 | 19.5 | 6.4 | 7.5 | 2.6 | 2.3 | Black |
| TE 2510 | 2 × 2.5 | 10.0 | 18.5 | 8.0 | 8.5 | 3.3 | 2.9 | Grey |
| TE 2513 | 2 × 2.5 | 13.0 | 21.5 | 8.0 | 8.5 | 3.3 | 2.9 | Blue |
| TE 4012 | 2 × 4.0 | 12.0 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | Orange / Grey |
| TE 6014 | 2 × 6.0 | 14.0 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | Green / Yellow |
| TE 10-14 | 2 × 10.0 | 14.0 | 26.6 | 12.6 | 12.0 | 6.9 | 6.5 | Brown / Green Red |
| TE 16-14 | 2 × 16.0 | 14.0 | 31.3 | 19.0 | 17.3 | 8.7 | 8.3 | Milky White |
Applications
- Terminal blocks requiring two wires in one position (bridging / daisy-chain).
- Control cabinets, PLC wiring, and machinery harnesses.
- Any stranded conductors needing clean, repeatable twin-wire ferrule terminations.
Get a Quote
Tell us the two conductor sizes and preferred ferrule length (F). We’ll match the correct TE model and tooling.
