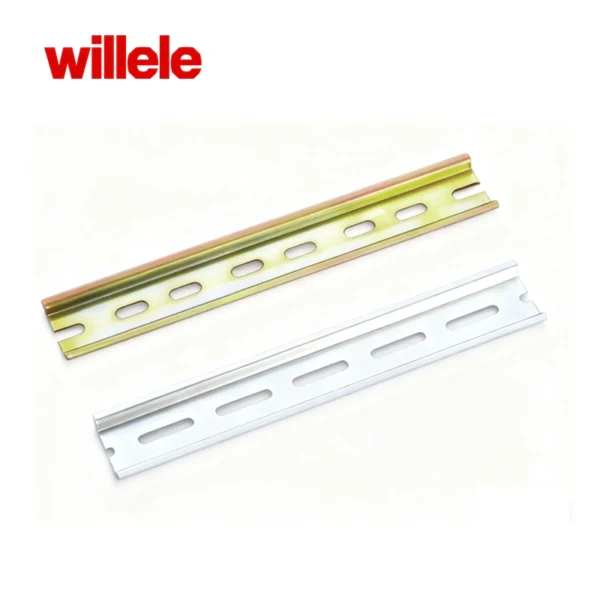

Steel DIN Rail — DS Series
Steel DIN rail for control panels and terminal blocks (TS35, 35 mm).
Multiple heights: 6.5 mm / 7.5 mm / 15 mm; thickness 0.9–1.1 mm.
Standard lengths 1 m / 2 m; three slot options (4.2×12, 6.2×15, 5×25).
Durable zinc-coated steel with accurate hole spacing for fast mounting.
Overview
The Steel DIN Rail DS Series is a TS35 (35 mm) mounting rail engineered for control panels, terminal blocks, relays, PLCs, and miniature circuit protection devices. It offers three profile heights (6.5 mm, 7.5 mm, and 15 mm) and thickness options from 0.9 mm to 1.1 mm for the right balance of rigidity and weight. Standard lengths are 1 meter and 2 meters. Slotted versions come in three hole formats for fast, flexible mounting and cable management.
Example code: DS0965-1M-A → 0.9×35×6.5 mm, 1 Meter, slot 4.2×12.
Key Features
- TS35 standard (35 mm) compatible with most industrial components.
- Heights 6.5/7.5/15 mm; thickness 0.9/1.0/1.1 mm for strength options.
- Pre-punched slot options: A) 4.2×12, B) 6.2×15, C) 5×25.
- Stock lengths 1 m and 2 m; custom cutting available on request.
- Cold-rolled steel with corrosion-resistant finish for long service life.
- Straightness and hole pitch controlled for rapid panel assembly.
Specifications
| Material | Series | Article No. | Thickness (mm) | Width (mm) | Height (mm) | Length (m) | Slot / Hole |
|---|---|---|---|---|---|---|---|
| Steel | DS | DS0965 | 0.9 | 35 | 6.5 | 1 / 2 | A/B/C |
| Steel | DS | DS0975 | 0.9 | 35 | 7.5 | 1 / 2 | A/B/C |
| Steel | DS | DS1065 | 1.0 | 35 | 6.5 | 1 / 2 | A/B/C |
| Steel | DS | DS1075 | 1.0 | 35 | 7.5 | 1 / 2 | A/B/C |
| Steel | DS | DS1165 | 1.1 | 35 | 6.5 | 1 / 2 | A/B/C |
| Steel | DS | DS1175 | 1.1 | 35 | 7.5 | 1 / 2 | A/B/C |
| Steel | DS | DS0915 | 0.9 | 35 | 15 | 1 / 2 | A/B/C |
| Steel | DS | DS1015 | 1.0 | 35 | 15 | 1 / 2 | A/B/C |
| Steel | DS | DS1115 | 1.1 | 35 | 15 | 1 / 2 | A/B/C |
Slot Options: A = 4.2×12, B = 6.2×15, C = 5×25.
Dimension
Applications
- Mounting terminal blocks, MCCBs/MCBs, relays, timers, and PLC modules.
- Industrial control cabinets, OEM panels, HVAC and building automation.
- Power distribution and machine control retrofits.
Why Choose Willele
- Tight tolerance rails for quick, repeatable installation.
- Stock of common sizes; custom cutting and packaging on request.
- Panel-level accessories available (end clamps, markers, terminal blocks).
- Responsive support and consistent export packing.
FAQ
Q1. Is this a TS35 standard steel din rail?
Yes, all DS rails are TS35 (35 mm) and fit most industrial components.
Q2. Which height should I choose—6.5, 7.5, or 15 mm?
6.5/7.5 mm are common for compact panels; 15 mm is preferred where higher stiffness is needed.
Q3. What do the slot options A/B/C mean?
A=4.2×12, B=6.2×15, C=5×25. Choose based on screw size and wiring slot preference.
Q4. Can I order custom lengths?
Yes, besides 1 m and 2 m we can cut to your length with MOQ.
Q5. What is the surface treatment?
Corrosion-resistant zinc-coated steel. Other finishes available on request.
Q6. Are end clamps and stoppers supplied?
They are optional accessories; please add to your quote.
