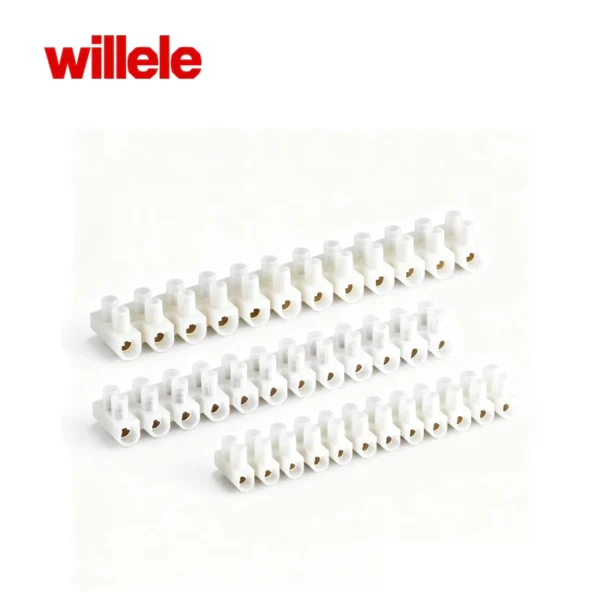

Willele W(U) Type Terminal Block (12 Pole)
12-pole screw U/W TYPE terminal block for safe and simple wire connections.
PA / PE / PP insulation with brass inserts ensures excellent conductivity and flame resistance.
Available in Natural, Black, White; rated for 230–450 V systems.
Ideal for power distribution, control wiring, and lighting connections.
Overview
The Willele W Type Terminal Block provides a durable and easy-to-use solution for
wire terminations and branch connections. Designed as a 12-pole strip terminal, it features
PA, PE, or PP insulation and brass conductors to ensure stable performance
in electrical distribution and control systems. Available in Natural, Black, or White finish.
Materials & Specifications
- Material: PA, PE, or PP insulation with brass inserts
- Voltage: 230–450 V
- Color options: Natural, Black, White
- Poles: 12
Applications
- General electrical wiring and power distribution
- Appliance and lighting connections
- Panel assemblies and control systems
- Low- to medium-current terminal connections
Technical Specifications
| Item No. | Rated current (A) | Section size (mm²) | L (mm) | W (mm) | H (mm) | A (mm) | B (mm) | Ød (mm) |
|---|---|---|---|---|---|---|---|---|
| W-3 | 3 | 2.5/4 | 92 | 14.9 | 11.7 | 4.1 | 8.0 | 3.0 |
| W-6 | 6 | 6 | 110 | 16.5 | 12.85 | 6.6 | 9.6 | 3.3 |
| W-10 | 10 | 10 | 127.7 | 19.35 | 15.4 | 7.1 | 11.1 | 3.8 |
| W-15 | 15 | 12 | 134 | 22.3 | 17.2 | 8.3 | 11.5 | 4.2 |
| W-20 | 20 | 14 | 144 | 22.5 | 17.4 | 8.65 | 12.2 | 4.5 |
| W-30 | 30 | 16 | 163 | 24.9 | 19 | 8.3 | 14.1 | 5.5 |
| W-60 | 60 | 25 | 187 | 28.65 | 21.4 | 11.2 | 16 | 6.3 |
| W-80 | 80 | 30 | 208 | 35.8 | 29.15 | 12.2 | 18 | 7.0 |
| W-100 | 100 | 35 | 230 | 37 | 27 | 12.5 | 19.5 | 7.4 |
Dimensions and hole spacing are per 12-pole strip for reference during layout or installation.
Dimensions
