Dual-Wall Adhesive Heat Shrink
Introduction to Dual-Wall Adhesive Heat Shrink Technology
In today’s demanding industrial environments, protecting electrical connections from moisture, corrosion, and environmental damage is critical. Dual wall heat shrink tube technology represents the gold standard for waterproof cable protection, combining superior insulation with permanent adhesive bonding. WILLELE Electric specializes in manufacturing high-performance adhesive lined tubing that delivers exceptional protection across automotive, marine, aerospace, and industrial applications.
Unlike standard heat shrink solutions, waterproof heat shrink tubing features an integrated hot-melt adhesive inner layer that creates an impermeable seal when heated. This dual-layer construction ensures long-term reliability in harsh conditions where moisture ingress, chemical exposure, and mechanical stress threaten connection integrity. For engineers and procurement professionals seeking certified cable protection solutions, understanding dual-wall adhesive heat shrink technology is essential for specification and sourcing decisions.
What is Dual-Wall Adhesive Heat Shrink Tubing?
Dual-wall adhesive heat shrink tubing is an advanced cable protection product featuring two distinct functional layers engineered to work synergistically. The outer layer consists of cross-linked polyolefin material that provides mechanical protection, electrical insulation, and resistance to abrasion, chemicals, and UV exposure. When exposed to heat, this outer layer shrinks to conform tightly around cables, connectors, or splices.
The inner layer contains a thermoplastic adhesive that melts during the heating process and flows to fill voids, gaps, and irregularities in the substrate surface. Upon cooling, this adhesive solidifies to create a permanent waterproof seal that bonds the tubing to the underlying cable assembly. This dual-action mechanism—mechanical conformance plus adhesive bonding—delivers superior environmental sealing compared to single-wall alternatives.
The hot-melt adhesive typically consists of polyamide or polyolefin-based compounds formulated for optimal flow characteristics, bond strength, and temperature resistance. Modern adhesive lined tubing formulations provide excellent adhesion to diverse substrates including PVC, polyethylene, rubber, and metal surfaces, making them versatile solutions for complex cable assemblies.
Key Features and Benefits
Superior Environmental Sealing
The primary advantage of waterproof heat shrink technology is its ability to create hermetically sealed connections resistant to water, moisture, salt spray, and contaminants. The adhesive inner layer eliminates capillary pathways that allow moisture migration, ensuring IP67 or IP68-rated protection when properly applied.
Enhanced Mechanical Protection
The robust outer polyolefin layer provides excellent abrasion resistance, impact protection, and strain relief. This mechanical barrier safeguards delicate conductors and insulation from physical damage during installation, operation, and maintenance activities.
Chemical and Temperature Resistance
WILLELE dual-wall heat shrink tubing withstands exposure to oils, fuels, solvents, acids, and alkaline solutions commonly encountered in industrial settings. Operating temperature ranges from -55°C to +125°C accommodate extreme environmental conditions while maintaining protection integrity.
Electrical Insulation Performance
With dielectric strength exceeding 15kV/mm, these tubes provide reliable electrical insulation for medium-voltage applications. The material formulation ensures stable insulation resistance across the operational temperature range.
Simplified Installation
The heat-activated shrinking process requires only standard heat guns or ovens, eliminating complex tooling requirements. The visual indication of proper shrinkage and adhesive flow simplifies quality control during installation.
Technical Specifications
| Parameter | Specification | Standard |
|---|---|---|
| Shrink Ratio | 3:1 or 4:1 | – |
| Operating Temperature | -55°C to +125°C | – |
| Shrink Temperature | 120°C minimum | – |
| Longitudinal Change | ≤5% | IEC 62329 |
| Tensile Strength | ≥10.4 MPa | ASTM D638 |
| Elongation at Break | ≥200% | ASTM D638 |
| Dielectric Strength | ≥15 kV/mm | ASTM D149 |
| Volume Resistivity | ≥1014 Ω·cm | ASTM D257 |
| Water Absorption | ≤0.5% | ASTM D570 |
| Flammability Rating | VW-1 | UL 224 |
| Peel Strength | ≥30 N/25mm | – |
| Standard Sizes | 3mm to 200mm (as supplied) | – |
| Standard Lengths | 1.2m per piece (customizable) | – |
| Standard Colors | Black, Red, Yellow, Blue, Green, Clear | – |
| Wall Thickness | 0.8mm to 3.0mm (varies by size) | – |
Material Composition
| Component | Material | Purpose |
|---|---|---|
| Outer Layer | Cross-linked Polyolefin | Mechanical protection, insulation, chemical resistance |
| Inner Layer | Hot-melt Polyamide or Polyolefin Adhesive | Waterproof sealing, substrate bonding |
| Additives | UV Stabilizers, Flame Retardants | Extended lifespan, safety compliance |
Industrial Applications
Automotive Industry
Dual wall heat shrink tube products protect critical wiring harnesses exposed to engine heat, road salt, moisture, and vibration. Applications include battery cable protection, sensor wire insulation, and underbody harness sealing. The automotive-grade formulations meet stringent OEM requirements for temperature cycling and chemical resistance.
Marine and Offshore
Marine environments demand maximum corrosion protection for electrical connections. Waterproof heat shrink tubing creates salt-spray-resistant seals on boat wiring, navigation systems, and offshore platform instrumentation. The adhesive barrier prevents galvanic corrosion at dissimilar metal junctions.
Aerospace and Aviation
Aerospace applications require lightweight, flame-retardant cable protection that performs reliably across extreme altitude and temperature variations. WILLELE adhesive lined tubing meets aviation specifications for flammability, smoke generation, and toxic gas emission.
Telecommunications
Outdoor telecom installations utilize dual-wall heat shrink for splice enclosures, fiber optic cable protection, and antenna feed line sealing. The UV-resistant formulation ensures decades of reliable service in direct sunlight exposure.
Industrial Automation
Factory automation systems depend on protected sensor cables, motor leads, and control wiring. The chemical resistance of dual-wall tubing safeguards connections from coolants, cutting fluids, and cleaning agents encountered in manufacturing environments.
Renewable Energy
Solar arrays and wind turbines employ waterproof heat shrink for DC cable connections, inverter wiring, and junction box sealing. The material withstands prolonged UV exposure and temperature extremes inherent to renewable energy installations.

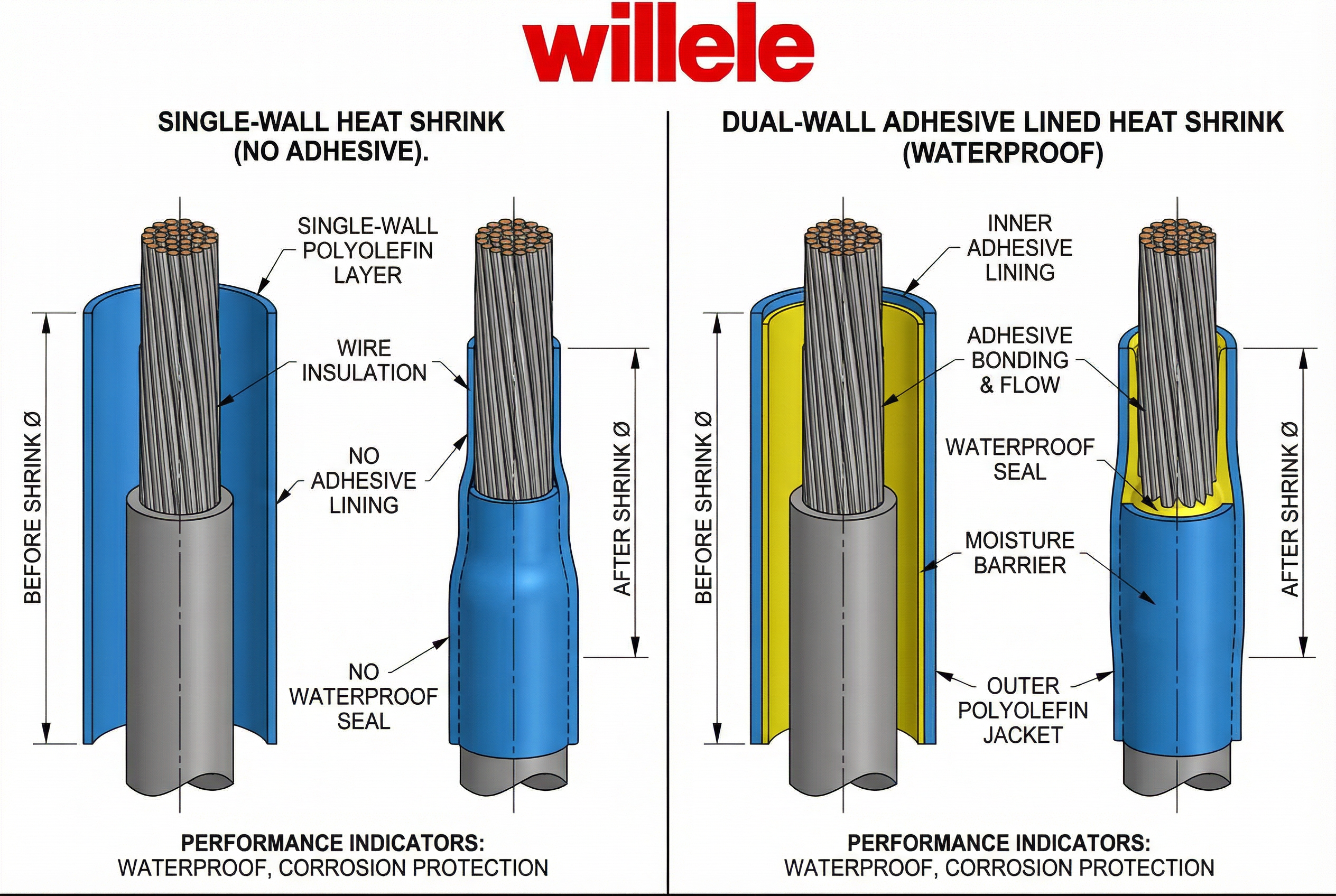

Comparison: Single-Wall vs. Dual-Wall Heat Shrink
| Feature | Single-Wall Heat Shrink | Dual-Wall Adhesive Heat Shrink |
|---|---|---|
| Construction | Single polyolefin layer | Outer polyolefin + inner adhesive layer |
| Waterproofing | Limited (mechanical fit only) | Excellent (adhesive seal) |
| Environmental Protection | Basic moisture resistance | IP67/IP68 rated sealing |
| Bond Strength | No adhesive bond | Permanent adhesive bonding |
| Installation Complexity | Simple | Simple (slightly longer heat time) |
| Cost | Lower | Moderate premium |
| Typical Applications | General wire bundling, identification | Marine, automotive, outdoor, critical connections |
| Seal Integrity | Relies on shrink fit | Adhesive + shrink fit (redundant) |
| Substrate Compatibility | Universal | Excellent on most surfaces |
| Long-term Reliability | Good in dry environments | Superior in all environments |
| Recommended Use | Indoor, low-stress applications | Harsh environments, mission-critical |
Installation Guide and Best Practices
Pre-Installation Preparation
- Surface Preparation: Clean cable surfaces thoroughly with isopropyl alcohol to remove contaminants, oils, and oxidation that could compromise adhesive bonding.
- Size Selection: Choose tubing with a recovered inner diameter 20-30% smaller than the cable diameter for optimal shrink fit and adhesive contact.
- Length Calculation: Cut tubing 20-40mm longer than the area requiring protection to ensure complete coverage and edge sealing.

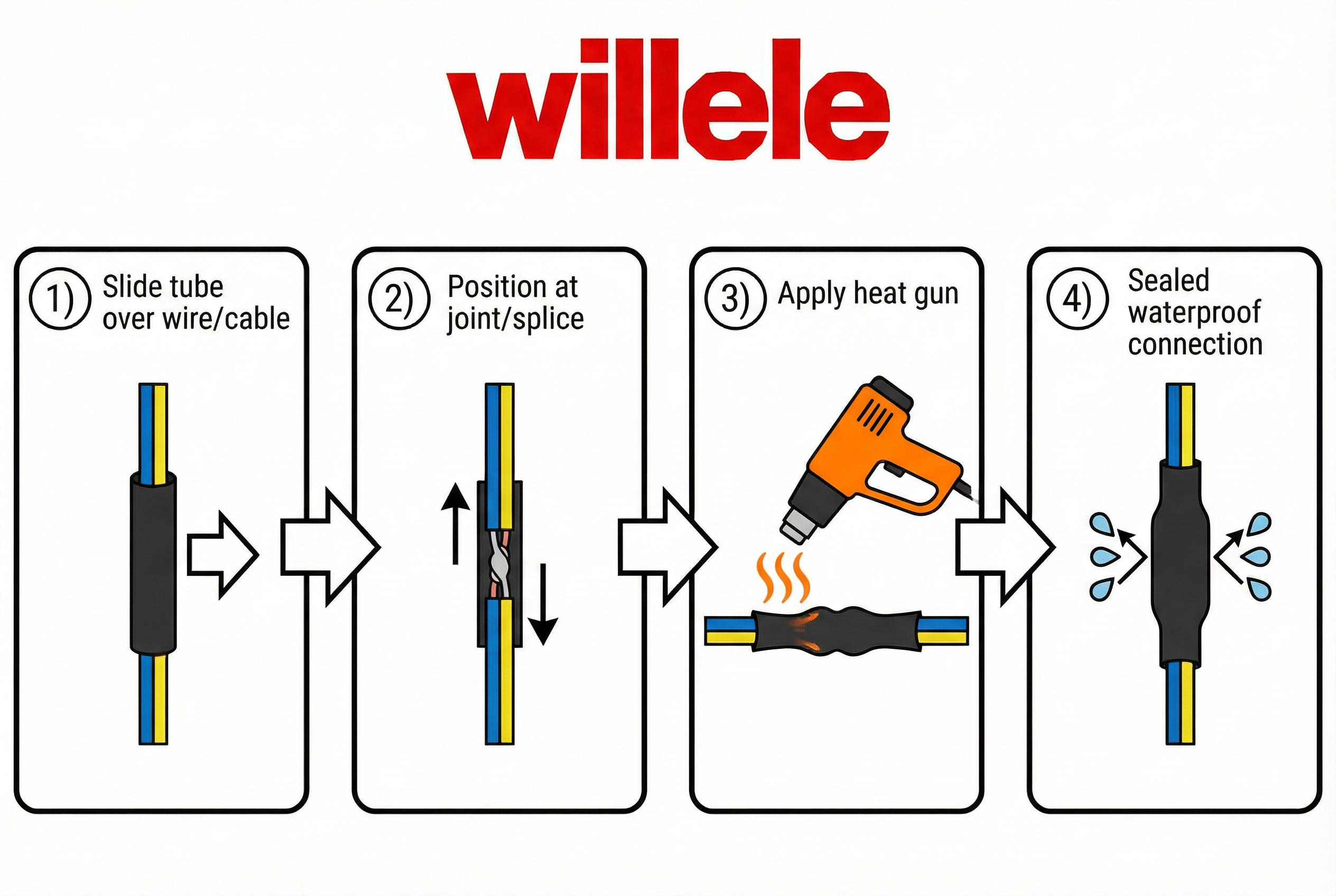

Installation Procedure
Step 1: Positioning
Slide the dual wall heat shrink tube over the cable or connection before final assembly. Position the tubing centered over the area requiring protection.
Step 2: Heat Application
Apply heat evenly using a heat gun set to 120-150°C, starting from the center and moving toward the ends. Maintain 50-100mm distance between the heat source and tubing surface. Rotate the assembly to ensure uniform heating.
Step 3: Monitoring
Observe the tubing surface during heating. Proper shrinkage produces a smooth, wrinkle-free finish. Continue heating until adhesive melts and flows from both tube ends—this visible adhesive bead indicates complete sealing.
Step 4: Cooling
Allow the assembly to cool naturally without mechanical stress. The adhesive will solidify within 2-5 minutes, creating the permanent waterproof seal. Avoid handling during the cooling phase.
Quality Control Checkpoints
- Visual Inspection: Verify smooth surface finish without bubbles, wrinkles, or gaps
- Adhesive Flow: Confirm adhesive beads visible at both tube ends
- Mechanical Test: Apply gentle axial force to verify bond integrity (no sliding)
- Electrical Test: Perform insulation resistance testing if required by application
Common Installation Mistakes to Avoid
- Insufficient Heating: Incomplete adhesive melting results in inadequate sealing
- Overheating: Excessive temperature can degrade material properties or burn through tubing
- Contaminated Surfaces: Oil, dirt, or moisture prevents proper adhesive bonding
- Wrong Size Selection: Oversized tubing may not shrink sufficiently; undersized tubing cannot be installed
Quality Standards and Certifications
WILLELE Electric manufactures adhesive lined tubing in compliance with international quality standards ensuring consistent performance and reliability:
International Standards Compliance
- IEC 62329: Dual-wall, cross-linked, adhesive-lined polyolefin heat shrinkable sleeves
- SAE-AMS-DTL-23053/4: Military specification for dual-wall heat shrinkable tubing
- UL 224 VW-1: Flammability rating for electrical insulation
- ASTM D2671: Standard Test Methods for Heat-Shrinkable Tubing
- ISO 9001:2015: Quality management system certification
- RoHS: Restriction of Hazardous Substances compliance
- REACH: European chemicals regulation compliance
Testing and Validation
Every production batch undergoes rigorous testing including:
- Shrink ratio verification
- Adhesive bond strength measurement
- Dielectric strength testing
- Temperature cycling endurance
- Salt spray corrosion resistance (ASTM B117)
- Accelerated aging assessment
- Flame resistance validation
Why Choose WILLELE Dual-Wall Heat Shrink?
Manufacturing Excellence
WILLELE Electric operates state-of-the-art extrusion facilities producing waterproof heat shrink tubing with precise dimensional tolerances and consistent material properties. Advanced quality control systems monitor every production stage from raw material inspection through final product validation.
Technical Support
Our engineering team provides application-specific recommendations, custom formulation development, and installation training. Technical data sheets, installation guides, and material safety documentation support informed product selection and proper deployment.
Customization Capabilities
WILLELE offers extensive customization options including:
- Custom shrink ratios (2:1 to 6:1)
- Special color matching and printing
- Non-standard sizes and wall thicknesses
- Military or aerospace specification compliance
- Private labeling and packaging
Competitive Advantages
- Consistent Quality: Statistical process control ensures batch-to-batch uniformity
- Global Supply Chain: Strategic inventory locations enable rapid delivery worldwide
- Competitive Pricing: Vertical integration from compounding to finished product reduces costs
- Sustainability: Recyclable materials and environmentally responsible manufacturing
- Compliance Documentation: Complete traceability with material certificates and test reports
Application Engineering Support
WILLELE’s technical team assists with:
- Product selection optimization
- Installation procedure development
- Failure analysis and troubleshooting
- Custom testing protocols
- Qualification documentation
Frequently Asked Questions
Q: What is the difference between 3:1 and 4:1 shrink ratio tubing?
A: The shrink ratio indicates how much the tubing will reduce in diameter when heated. A 3:1 ratio means tubing with a 30mm supplied diameter will shrink to approximately 10mm when fully recovered. A 4:1 ratio offers greater size flexibility, shrinking from 40mm to 10mm, accommodating wider diameter variations in cable assemblies. Higher ratios provide more versatility but may cost slightly more.
Q: Can dual-wall heat shrink be used for permanent outdoor installations?
A: Yes, WILLELE waterproof heat shrink tubing is specifically engineered for permanent outdoor use. The UV-stabilized polyolefin outer layer and waterproof adhesive seal provide decades of reliable protection against sunlight, temperature extremes, moisture, and environmental contaminants when properly installed.
Q: How do I know if the adhesive has properly sealed?
A: Proper sealing is indicated by visible adhesive flowing from both ends of the tubing during heat application. This adhesive “bead” confirms that the hot-melt layer has melted completely and filled all gaps. Additionally, the tubing should feel firmly bonded to the cable with no ability to rotate or slide after cooling.
Q: Is special equipment required for installation?
A: No specialized equipment is necessary. A standard industrial heat gun capable of reaching 120-150°C is sufficient for most applications. For production environments, convection ovens or infrared heating systems can improve consistency and throughput. Avoid using open flames, which can damage the tubing.
Q: What substrates are compatible with adhesive-lined tubing?
A: WILLELE adhesive lined tubing bonds effectively to most common cable insulation materials including PVC, polyethylene, rubber (EPR, EPDM), and polyurethane. It also adheres well to metal surfaces, making it suitable for protecting connectors, terminals, and cable-to-metal transitions.
Q: Can the tubing be removed after installation if needed?
A: Dual-wall adhesive heat shrink creates a permanent bond designed for the lifetime of the protected assembly. While removal is technically possible by heating and mechanical force, it typically damages the tubing and may harm the underlying cable. For applications requiring removability, consider using single-wall heat shrink or reusable cable protection solutions.
Conclusion
Dual wall heat shrink tube technology with adhesive lined tubing represents the most reliable solution for protecting critical electrical connections in demanding environments. The combination of mechanical shrink-fit and permanent adhesive sealing delivers waterproof heat shrink performance that exceeds single-wall alternatives across all key parameters: environmental sealing, mechanical protection, chemical resistance, and long-term reliability.
For engineers specifying cable protection systems, procurement professionals sourcing quality components, and manufacturers seeking certified solutions, WILLELE Electric provides industry-leading dual-wall adhesive heat shrink products backed by rigorous quality control, comprehensive technical support, and global supply chain capabilities.
Whether protecting automotive harnesses from road salt and moisture, sealing marine electrical systems against corrosive salt spray, or safeguarding industrial automation wiring from chemical exposure, WILLELE’s waterproof heat shrink tubing delivers proven performance in the world’s harshest operating environments.
Contact WILLELE Electric today to discuss your cable protection requirements, request technical specifications, or obtain samples for application validation. Our engineering team stands ready to help you select the optimal solution for your specific needs and ensure successful implementation through every project phase.
WILLELE Electric – Your Trusted Partner for Industrial Cable Protection Solutions
