Dual Wall Flame-Retardant Heat-Shrink Tubing: Technical Specifications
In today’s demanding industrial environments, dual wall flame-retardant heat-shrink tubing has become the gold standard for cable protection. This advanced electrical insulation solution combines superior fire safety with robust environmental sealing, making it essential for applications where reliability cannot be compromised. As a leading manufacturer of heat-shrink tubing solutions, Willele Electrical understands the critical importance of selecting the right protection for your electrical systems.
What is Dual Wall Flame-Retardant Heat-Shrink Tubing?
Dual wall flame-retardant heat-shrink tubing features a sophisticated two-layer construction designed to provide comprehensive protection. The outer layer consists of cross-linked flame-retardant polyolefin that shrinks when heated, while the inner layer contains a thermoplastic hot-melt adhesive that melts and flows to create a complete environmental seal. This dual-action mechanism delivers both electrical insulation and waterproof protection in a single installation step.

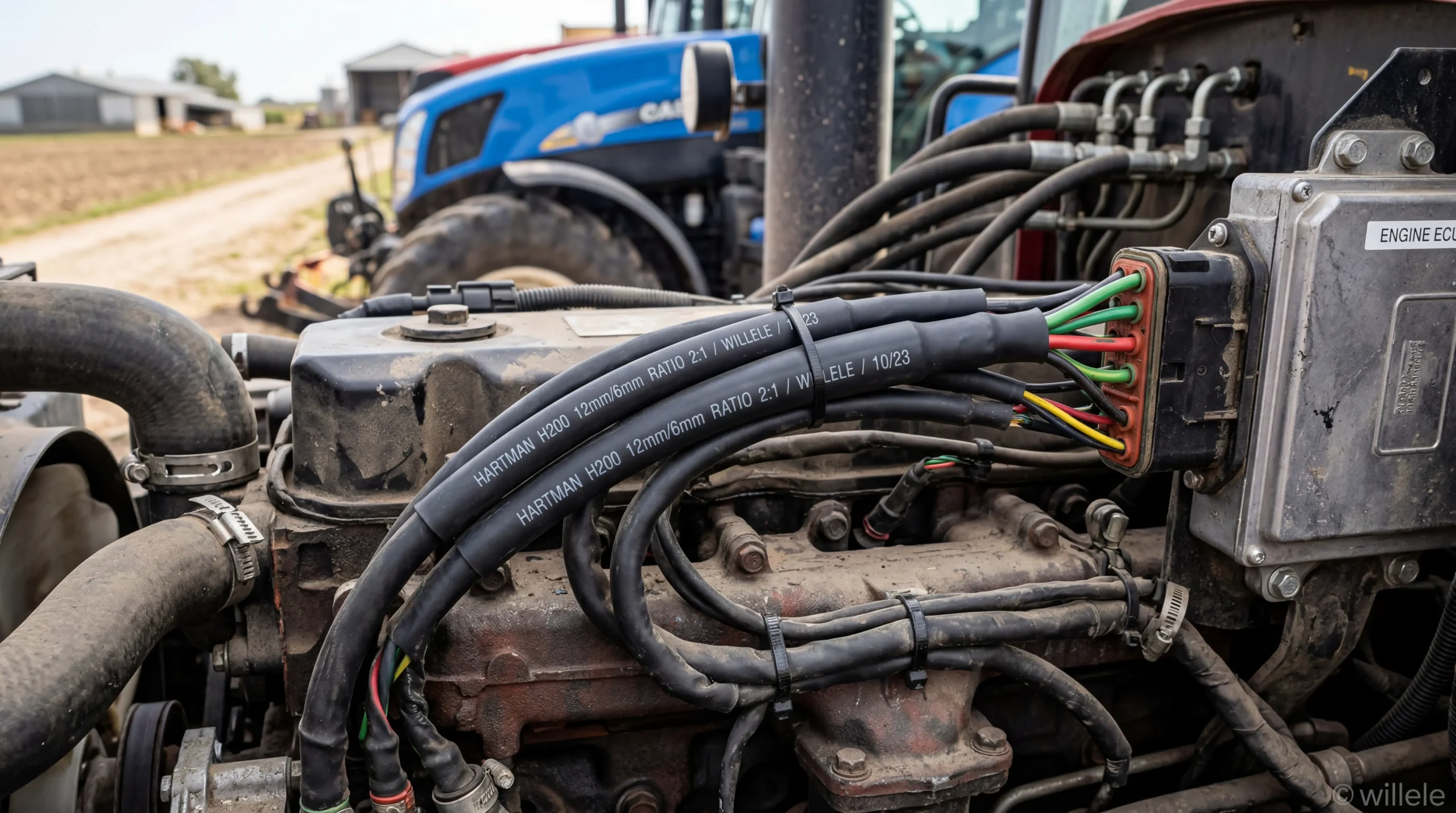

Professional installation of Willele dual wall flame-retardant heat-shrink tubing in industrial setting
Key Technical Specifications
Material Composition and Structure
The outer flame-retardant layer typically uses cross-linked polyolefin formulated with halogen-free phosphorus-based flame retardants or traditional halogenated compounds, depending on application requirements. The inner adhesive layer provides excellent bonding to copper, aluminum, PVC, polyethylene, and other common cable materials.
Shrink Ratio Comparison
| Shrink Ratio | Supplied Diameter | Recovered Diameter | Best Applications |
|---|---|---|---|
| 2:1 | 12mm | 6mm | Standard cable terminations |
| 3:1 | 24mm | 8mm | Irregular shapes, varying diameters |
| 4:1 | 40mm | 10mm | Complex geometries, large variations |
Temperature Performance
Dual wall flame-retardant heat-shrink tubing operates across wide temperature ranges:
- Operating Range: -55°C to +135°C (-67°F to +275°F)
- Shrink Temperature: 90°C to 120°C (194°F to 248°F)
- Maximum Short-term: Up to +200°C for military-grade specifications
Flame Retardancy Standards
Willele’s dual wall flame-retardant heat-shrink tubing meets or exceeds international fire safety standards:
UL224 VW-1: North American standard requiring self-extinguishing properties with limited flame spread. This certification ensures the tubing stops burning within seconds after the ignition source is removed.
UL94 V-0: The highest flammability rating, guaranteeing self-extinguishment within 10 seconds with no flaming drips—critical for applications above sensitive equipment.
MIL-DTL-23053: Military specification demanding exceptional flame resistance, fluid resistance, and mechanical durability for defense and aerospace applications.
IEC 60684-3: International standard for flexible insulating sleeving, widely recognized in European and Asian markets.
Technical Performance Specifications
Electrical Properties
| Property | Specification | Test Method |
|---|---|---|
| Dielectric Strength | ≥15 kV/mm | ASTM D149 |
| Volume Resistivity | ≥1×10¹⁴ Ω·cm | ASTM D257 |
| Dielectric Constant | ≤3.5 @ 1MHz | ASTM D150 |
| Insulation Resistance | ≥10,000 MΩ | IEC 60684 |
Mechanical Properties
| Property | Value | Test Standard |
|---|---|---|
| Tensile Strength | 10-20 MPa | ASTM D638 |
| Elongation at Break | 200-500% | ASTM D638 |
| Longitudinal Shrinkage | ≤8% | ASTM D2671 |
| Peel Strength (Adhesive) | 5-15 N/cm | ASTM D1876 |
Detailed cross-section showing outer flame-retardant layer and inner adhesive layer with Willele quality construction
Chemical and Environmental Resistance
Dual wall flame-retardant heat-shrink tubing from Willele resists a comprehensive range of industrial chemicals and environmental conditions:
Fluid Resistance: Gasoline, diesel fuel, hydraulic fluids, lubricating oils, battery acid, alkaline solutions, and industrial solvents (tested per SAE J2260).
UV Resistance: Withstands 2,000+ hours of accelerated UV exposure (ASTM G154) without degradation, making it ideal for outdoor installations.
Moisture Protection: Achieves IP67/IP68 ingress protection ratings when properly installed, providing complete waterproof sealing for marine and underground applications.
Dual Wall vs. Single Wall: Performance Comparison
| Feature | Single Wall | Dual Wall Flame-Retardant |
|---|---|---|
| Flame Retardancy | Standard | UL224 VW-1, UL94 V-0 |
| Moisture Sealing | None | Complete (IP67/IP68) |
| Adhesive Lining | No | Yes |
| Chemical Resistance | Moderate | Excellent |
| Installation Steps | One | One (dual protection) |
| Cost | Lower | Higher (better value) |
| Typical Applications | Indoor, dry | Marine, automotive, outdoor |
Industry Applications
Willele’s dual wall flame-retardant heat-shrink tubing serves critical applications across multiple industries:
Automotive: Wiring harness protection, sensor connections, and underhood applications requiring flame resistance and fluid protection.
Marine: Waterproof sealing of electrical connections in boats, ships, and offshore platforms where salt spray and moisture are constant challenges.
Aerospace: Lightweight, flame-retardant cable protection meeting stringent FAA and military specifications.
Industrial: Control panel wiring, motor connections, and equipment where fire safety and environmental sealing are mandatory.
Railway: Compliance with EN 45545 fire safety standards for rolling stock and infrastructure.
Renewable Energy: Solar panel connections and wind turbine electrical systems exposed to harsh outdoor conditions.
Size Range and Availability
Willele manufactures dual wall flame-retardant heat-shrink tubing in comprehensive size ranges:
- Small: 3mm to 12mm (as supplied) – Individual wire protection
- Medium: 12mm to 50mm (as supplied) – Cable bundles and splices
- Large: 50mm to 150mm (as supplied) – Heavy-duty industrial applications
- Custom: Specialized sizes available for OEM applications
Installation Best Practices
Proper installation ensures optimal performance of dual wall flame-retardant heat-shrink tubing:
- Surface Preparation: Clean and dry the cable surface to ensure proper adhesive bonding
- Size Selection: Choose tubing with supplied diameter 20-30% larger than the cable diameter
- Heat Application: Use a heat gun at 300-400°F, applying heat evenly in a circular motion
- Adhesive Flow: Continue heating until adhesive flows from both ends, indicating complete seal
- Cooling: Allow tubing to cool naturally for maximum mechanical strength
Quality Certifications
Willele Electrical maintains rigorous quality standards with certifications including:
- ISO 9001:2015 Quality Management System
- CE for flame-retardant products
- RoHS and REACH compliance for environmental safety
- Military qualification testing (MIL-DTL-23053)
Why Choose Willele Dual Wall Flame-Retardant Heat-Shrink Tubing?
As a specialized B2B manufacturer of heat-shrink tubing solutions, Willele Electrical offers:
✓ Consistent Quality: Every batch tested to meet or exceed international standards
✓ Technical Support: Engineering assistance for product selection and application guidance
✓ Custom Solutions: Tailored sizes, colors, and specifications for OEM requirements
✓ Competitive Pricing: Direct manufacturer pricing with flexible MOQ options
✓ Global Shipping: Reliable delivery to electrical contractors and distributors worldwide
Frequently Asked Questions (FAQ)
Q: What is the difference between dual wall and single wall heat-shrink tubing?
A: Dual wall tubing includes an inner adhesive layer that melts during installation to create a waterproof seal, while single wall tubing provides only mechanical protection without moisture sealing.
Q: How do I know if I need flame-retardant heat-shrink tubing?
A: Flame-retardant tubing is required in applications where fire safety is critical, including building electrical systems, public transportation, aerospace, and any installation subject to electrical codes requiring UL224 VW-1 or UL94 V-0 ratings.
Q: What shrink ratio should I choose?
A: For standard applications with consistent cable diameters, 2:1 ratio is sufficient. Choose 3:1 or 4:1 ratios when covering connectors, irregular shapes, or when cable diameters vary significantly.
Q: Can dual wall flame-retardant heat-shrink tubing be used outdoors?
A: Yes, Willele’s dual wall tubing includes UV stabilizers and provides excellent weather resistance, making it ideal for outdoor, marine, and underground applications.
Q: What temperature should I use for installation?
A: Apply heat at 300-400°F (150-200°C) using a heat gun. Move the heat source continuously in a circular motion until the tubing fully shrinks and adhesive flows from both ends.
Q: Is halogen-free flame-retardant tubing available?
A: Yes, Willele offers both halogenated and halogen-free (LSZH – Low Smoke Zero Halogen) formulations. Halogen-free versions are preferred for enclosed spaces, data centers, and applications where toxic smoke generation must be minimized.
Conclusion
Dual wall flame-retardant heat-shrink tubing represents the optimal solution for applications demanding both fire safety and environmental protection. With superior flame retardancy, waterproof sealing, and chemical resistance, it outperforms standard single-wall alternatives in critical electrical installations.
Willele Electrical’s commitment to quality manufacturing ensures that every meter of dual wall flame-retardant heat-shrink tubing meets the stringent requirements of modern electrical systems. Whether you’re protecting automotive wiring, sealing marine connections, or insulating industrial control systems, our technical team is ready to help you select the perfect solution.
Contact Willele Electrical today for technical specifications, samples, and competitive B2B pricing on dual wall flame-retardant heat-shrink tubing. Our engineering team provides expert application support to ensure your project success.
