Fire Retardant Heat Shrink Tube – Premium Quality by Willele
In the demanding world of industrial electrical engineering, safety and reliability are paramount. At WILLELE Electric, a premier B2B manufacturer of electrical equipment, we understand that component failure is not an option. Our Fire Retardant Heat Shrink Tube solutions are engineered to provide superior insulation, mechanical protection, and, most importantly, critical flame resistance for cabling systems worldwide.
The Critical Role of Fire Retardant Heat Shrink Tubing
A Fire Retardant Heat Shrink Tube is more than just a cable organizer; it is a safety device. Manufactured from high-grade cross-linked polyolefin, these tubes are designed to insulate wires while inhibiting the spread of fire in the event of an electrical short or external combustion.
For industries ranging from automotive manufacturing to aerospace and telecommunications, WILLELE’s tubing ensures that electrical systems remain protected against environmental hazards, abrasion, and thermal extremes. By choosing a specialized manufacturer like WILLELE, businesses gain access to products that meet rigorous international safety standards, including UL VW-1 flammability ratings.
Anatomy of WILLELE Heat Shrink Technology
To understand why WILLELE tubes outperform standard market options, one must look at the internal composition. Our manufacturing process involves precise chemical engineering to create a balance between flexibility and flame suppression.

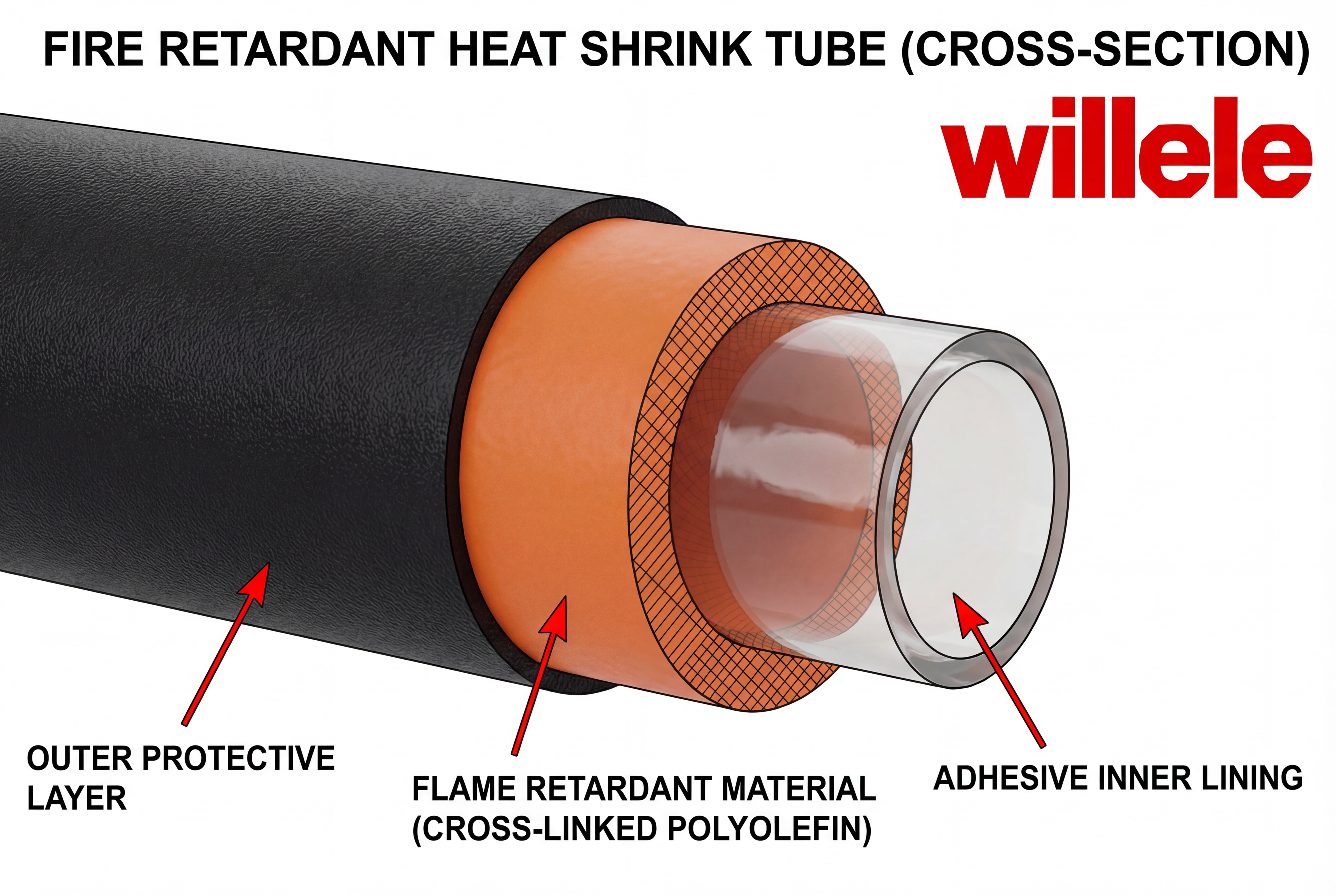

Material Composition
- Outer Layer: Cross-linked Polyolefin offering resistance to fluids, solvents, and mechanical wear.
- Flame Retardant Additives: Halogen-free or low-smoke options that chemically disrupt combustion.
- Inner Adhesive (Optional Dual-Wall): Meltable sealant that creates a moisture-proof barrier.
Technical Specifications and Performance Data
For engineers and procurement officers, technical data is the deciding factor. WILLELE’s Fire Retardant Heat Shrink Tubes are tested rigorously. Below are the standard specifications for our premium industrial line.
Table 1: General Technical Properties
| Property | Test Method | Typical Value |
|---|---|---|
| Tensile Strength | ASTM D 2671 | ≥ 10.4 MPa |
| Elongation at Break | ASTM D 2671 | ≥ 200% |
| Longitudinal Shrinkage | UL 224 | ± 5% |
| Dielectric Strength | IEC 243 | ≥ 15 kV/mm |
| Volume Resistivity | IEC 93 | ≥ 10^14 Ω·cm |
| Flammability | UL 224 | VW-1 (Pass) |
| Corrosion | UL 224 | No Corrosion |
Table 2: Temperature Ratings
| Rating Type | Temperature Range |
|---|---|
| Operating Temperature | -55°C to +125°C |
| Minimum Shrink Temperature | +70°C |
| Full Recovery Temperature | +100°C to +110°C |
| Heat Shock (250°C, 4 hrs) | No cracking, no flowing |
Industrial Applications
WILLELE serves a global B2B clientele. Our fire retardant tubing is versatile, adapted for specific sector requirements.
Table 3: Industry Application Comparison
| Industry | Primary Application | Key Requirement Solved by WILLELE |
|---|---|---|
| Automotive | Wire harness bundling | Vibration resistance & fluid protection |
| Electronics | Capacitor insulation | High dielectric strength & precision fit |
| Marine | Cable splicing | Salt corrosion resistance & waterproofing |
| Mass Transit | Control panel wiring | High flame retardancy (Low Smoke Zero Halogen) |
| Industrial Mfg | Heavy machinery cabling | Abrasion resistance & mechanical strength |
Size and Shrink Ratio Selection
Choosing the correct size is crucial for effective sealing and insulation. WILLELE offers various shrink ratios, typically 2:1 (standard) and 3:1 (high expansion).
Table 4: Common Size Selection Guide (2:1 Ratio)
| Nominal Size (Inch) | As Supplied ID (mm) | After Recovery ID (mm) | Applicable Cable Diameter (mm) |
|---|---|---|---|
| 3/32″ | 2.5 | 1.25 | 1.3 – 2.3 |
| 1/8″ | 3.5 | 1.75 | 1.8 – 3.2 |
| 1/4″ | 6.5 | 3.25 | 3.3 – 6.0 |
| 1/2″ | 12.5 | 6.25 | 6.5 – 11.5 |
| 1″ | 25.5 | 12.75 | 13.0 – 24.0 |
Note: Custom sizes and bulk industrial spools are available upon request for B2B partners.

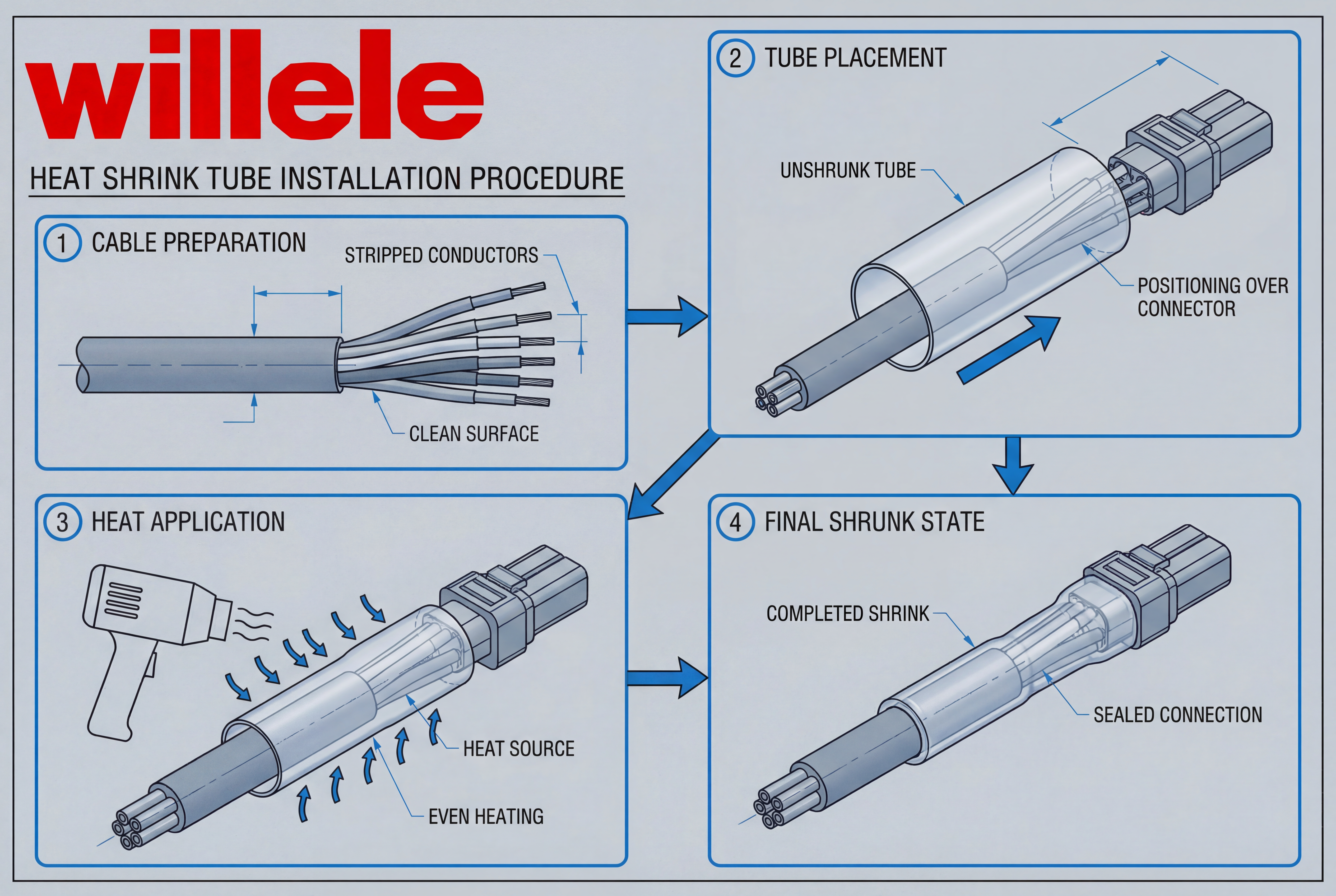

Installation Guide for WILLELE Tubing
Proper installation ensures the Fire Retardant Heat Shrink Tube performs to its full potential. While the process is straightforward, industrial standards require precision.
- Preparation: Clean the cable or connection area. Ensure no sharp edges or burrs could puncture the tube.
- Selection: Choose a tube with a diameter slightly larger than the component but smaller than the component after shrinking (see Table 4).
- Positioning: Slide the WILLELE tube over the connection area. Ensure it covers the metal connection plus a portion of the cable insulation on both sides.
- Heating: Using a heat gun or industrial oven, apply heat evenly from the center moving outward to the ends. This prevents air pockets.
- Cooling: Allow the assembly to cool naturally. Do not apply mechanical stress until the tube has returned to room temperature.
Quality Assurance and Safety Standards
At WILLELE Electric, quality is not a buzzword; it is our operational framework. Every batch of Fire Retardant Heat Shrink Tube undergoes strict quality control protocols.
- UL/cUL Certified: Compliant with UL 224 standards for extruded insulating tubing.
- RoHS & REACH: Environmentally responsible manufacturing free from restricted hazardous substances.
- ISO 9001: Manufactured in facilities adhering to global quality management systems.
Frequently Asked Questions (FAQ)
1. What differentiates WILLELE’s fire retardant tubing from standard PVC tubing?
WILLELE uses cross-linked polyolefin which offers superior thermal stability and chemical resistance compared to standard PVC. Unlike PVC, our polyolefin tubing will not melt or flow when heated; it shrinks and hardens, providing a permanent seal.
2. What does the “VW-1” rating mean?
VW-1 is a UL flammability standard. It indicates that the tubing is highly flame-retardant and will self-extinguish within a specific timeframe if ignited, preventing the fire from propagating along the cable.
3. Can I use these tubes outdoors?
Yes. WILLELE offers UV-resistant black heat shrink tubes specifically designed for outdoor applications where sunlight and weather exposure are factors.
4. What is the difference between Single Wall and Dual Wall tubing?
Single wall tubing provides electrical insulation and abrasion protection. Dual wall (adhesive-lined) tubing includes an inner layer of hot-melt adhesive that flows when heated to create a waterproof seal, ideal for marine or automotive use.
5. Do you offer custom cutting and printing services?
Yes. As a B2B manufacturer, WILLELE provides value-added services including cutting to specific lengths and printing custom branding or serial numbers on the tubing.
Conclusion
Securing your electrical infrastructure requires components that you can trust. WILLELE Electric delivers Fire Retardant Heat Shrink Tubes that combine industrial-grade durability with critical safety features. Whether you are scaling up automotive production or maintaining complex industrial machinery, our products provide the reliability your engineering demands.
Ready to upgrade your cable protection?\
Contact WILLELE Electric today for a quote, sample requests, or to discuss custom specifications for your next project.
WILLELE Electric – Empowering Global Industry with Premium Electrical Solutions.
