Adjustable Cable Clamp — Self-Adhesive Nylon Strap Clamp
Adjustable cable clamp with self-adhesive rubber base for fast, drill-free mounting on flat panels.
Nylon 66, UL94V-2 flammability; reusable ladder-style strap locks at multiple positions.
Ideal for control cabinets, machinery panels, desks and AV racks; black or natural strap options.
Three sizes (TTC-17 / TTC-22 / TTC-26) covering max bundle Ø 17–26 mm.
Adjustable Cable Clamp — Self-Adhesive Nylon Strap Clamp
The adjustable cable clamp uses a self-adhesive rubber base and a ladder-style nylon strap to secure bundles
without drilling. Multiple locking steps let you fine-tune the grip for different diameters.
Overview
This adjustable cable clamp mounts instantly on clean, flat surfaces and locks around cables with a reusable
strap. It is designed for control cabinets, machines, furniture and AV installations where drilling holes is not desired.
Key Features
- Material: UL-qualified Nylon 66 strap (natural/black), flammability rating UL94V-2; rubber adhesive base.
- Self-adhesive mounting: fast installation on panels, desks and chassis.
- Ladder strap design for adjustable, repeatable locking.
- Three models covering max bundle diameters from 17 mm to 26 mm.
Specifications

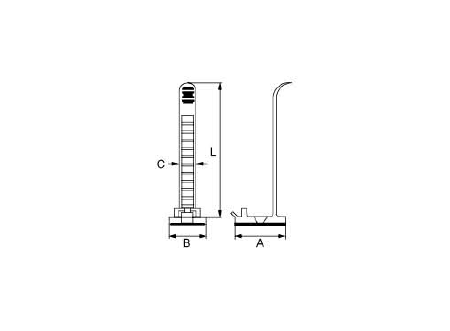

| Item No. | A (mm) | B (mm) | C (mm) | L (mm) | Max. Bundle Dia. (mm) |
|---|---|---|---|---|---|
| TTC-17 | 25.0 | 18.0 | 7.9 | 70.0 | 17.0 |
| TTC-22 | 30.5 | 21.0 | 12.0 | 90.0 | 22.0 |
| TTC-26 | 30.5 | 21.0 | 12.0 | 108.0 | 26.0 |
FAQ
How to install the adjustable cable clamp?
Clean the surface, peel the liner, press the adhesive base firmly, route the bundle and tighten the ladder strap to the desired step.
Can the clamp be repositioned?
The strap is reusable; the adhesive base is pressure-sensitive. For repositioning, replace the base pad or use screws if a screw-mount version is available.
