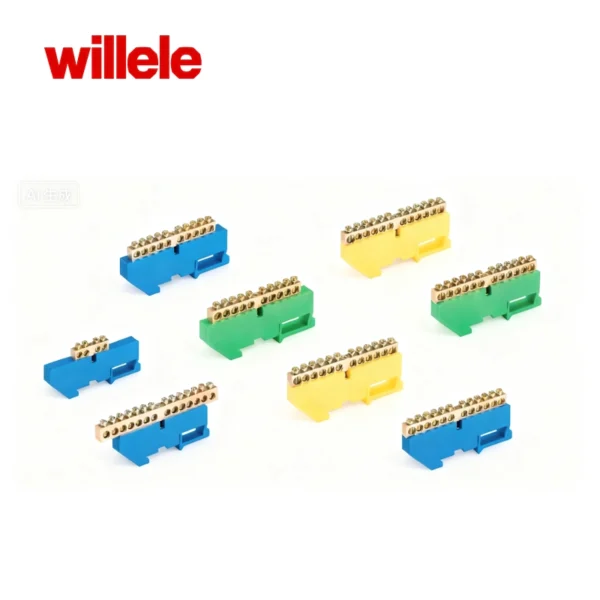

Brass Terminal Block — T005 Series
High-conductivity brass bar with insulated nylon housing for neutral/earth distribution.
4–16 ways; 6×9 mm (M4) or 8×12 mm (M4/M5) bores.
Side-shielded base for neat routing and safer access.
Ideal for distribution boards, control panels, and OEM switchgear.
Overview
The brass terminal block T005 combines a solid brass bar with a side-shielded insulated base to keep wiring short and well protected in distribution boards and control panels.
Designed for low contact resistance and repeatable torque, brass terminal block T005 supports fast labeling, easy access, and clean routing even in compact cabinets.
With bore options of 6×9 mm and 8×12 mm and capacities from 4 to 16 ways, the brass terminal block T005 fits residential, commercial, and OEM projects where a tidy neutral link or earth bar is required.
Panel builders rely on brass terminal block T005 for stable contact quality and straightforward maintenance across varied layouts.
Key Features
- Solid corrosion-resistant brass conductor for low resistance and thermal stability.
- Insulated nylon housing with side shields for safer tool access and cable management.
- Bores: 6×9 mm (M4) and 8×12 mm (M4/M5) to match conductor size.
- 4–16 ways; simple inspection and periodic re-torque procedures.
- Use as neutral (N) link or earth (PE) bar in boards and control panels.
Specifications
| Article No. | Ways | Spec (mm) | L1 (mm) | L2 Installation (L mm) | Screw | Ø (mm) | Remark |
|---|---|---|---|---|---|---|---|
| T005-0609/4 | 4 | 6×9 | 86 | 35×6 | M4 | 5.2 | T005-0609/4B, T005-0609/4Y, T005-0609/4G |
| T005-0609/6 | 6 | 6×9 | 86 | 35×6 | M4 | 5.2 | T005-0609/6B, T005-0609/6Y, T005-0609/6G |
| T005-0609/8 | 8 | 6×9 | 86 | 35×6 | M4 | 5.2 | T005-0609/8B, T005-0609/8Y, T005-0609/8G |
| T005-0609/10 | 10 | 6×9 | 86 | 35×6 | M4 | 5.2 | T005-0609/10B, T005-0609/10Y, T005-0609/10G |
| T005-0609/12 | 12 | 6×9 | 87.5 | 35×6 | M4 | 5.2 | T005-0609/12B, T005-0609/12Y, T005-0609/12G |
| T005-0609/14 | 14 | 6×9 | 98 | 35×6 | M4 | 5.2 | T005-0609/14B, T005-0609/14Y, T005-0609/14G |
| T005-0609/16 | 16 | 6×9 | 112 | 35×6 | M4 | 5.2 | T005-0609/16B, T005-0609/16Y, T005-0609/16G |
| T005-0812/4 | 4 | 8×12 | 86 | 35×6 | M4 | 5.2 | T005-0812/4B, T005-0812/4Y, T005-0812/4G |
| T005-0812/6 | 6 | 8×12 | 86 | 35×6 | M5 | 6.0 | T005-0812/6B, T005-0812/6Y, T005-0812/6G |
| T005-0812/8 | 8 | 8×12 | 86 | 35×6 | M5 | 6.0 | T005-0812/8B, T005-0812/8Y, T005-0812/8G |
| T005-0812/10 | 10 | 8×12 | 86 | 35×6 | M5 | 6.0 | T005-0812/10B, T005-0812/10Y, T005-0812/10G |
| T005-0812/12 | 12 | 8×12 | 101 | 35×6 | M5 | 6.0 | T005-0812/12B, T005-0812/12Y, T005-0812/12G |
| T005-0812/14 | 14 | 8×12 | 116 | 35×6 | M5 | 6.0 | T005-0812/14B, T005-0812/14Y, T005-0812/14G |
| T005-0812/16 | 16 | 8×12 | 131 | 35×6 | M5 | 6.0 | T005-0812/16B, T005-0812/16Y, T005-0812/16G |

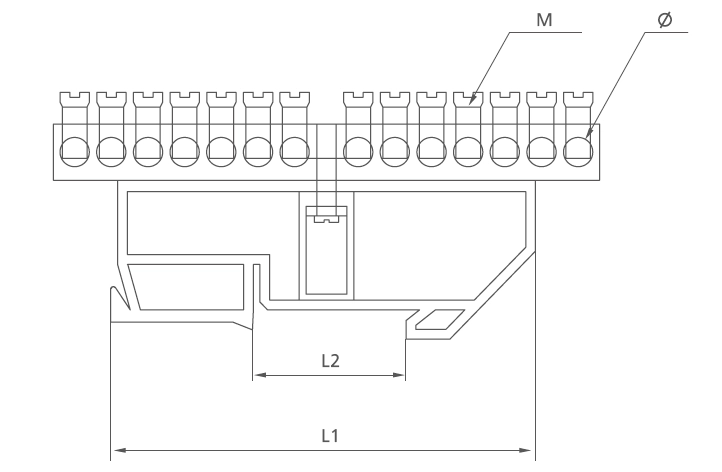

Dimension
Applications
Use brass terminal block T005 in consumer units, OEM control cabinets, machine panels, and PV sub-assemblies where a compact neutral or earth consolidation point reduces clutter and speeds commissioning.
Selection Guide
Choose 6×9 mm with M4 screws for compact conductors; select 8×12 mm with M5 when cable size or current margin is higher.
For boards with many branch circuits, brass terminal block T005 in 14–16 ways minimizes jumpers and shortens runs.
Installation
Mount the base on a flat surface, confirm earthing strategy, and route feeders before tightening.
When space is tight, brass terminal block T005 can sit near the incoming neutral or PE stud to simplify labeling and testing.
Maintenance
Re-torque terminal screws on scheduled intervals, inspect contact surfaces, and verify base fasteners.
With these checks, brass terminal block T005 maintains consistent performance over years of thermal cycling.
FAQ
What conductors fit the T005?
Use 6×9 mm bores with M4 screws for compact cross-sections, and 8×12 mm with M5 screws for larger conductors.
Neutral or earth?
Both. The bar can be wired as a neutral link (N) or an earth bar (PE) depending on the panel design.
Any torque guidance?
Apply manufacturer-standard torque for M4/M5 screws and re-check after initial thermal cycles as part of routine maintenance.
