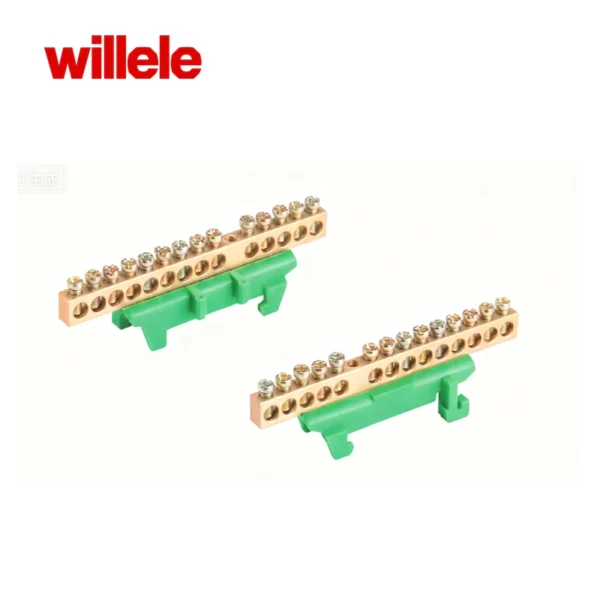

Brass Terminal Block — T007 Series
High-conductivity brass bar on insulated stand for neutral/earth distribution.
6–16 ways, bore 6×9 mm, screws M4, hole Ø 5.0 mm.
Raised stand for better tool access and clear labeling.
Ideal for distribution boards, control panels, and OEM switchgear
Overview
The brass terminal block T007 is designed for compact power distribution and grounding inside panels.
Featuring a solid brass bar and precision 6×9 mm bores, brass terminal block T007 ensures low contact resistance and consistent tightening torque across circuits.
With 6–16 ways and M4 screws on a 35×6 mm base, the brass terminal block T007 simplifies wiring in consumer units and industrial boards.
The insulated base provides stability and clear marking space, while the brass body offers high conductivity and durability.
Key Features
- Solid brass conductor for excellent electrical and mechanical performance.
- Compact 6×9 mm bore with M4 screws, Ø5.0 mm hole spacing 35×6 mm.
- Available in 6, 7, 8, 10, 12, 14, and 16 ways.
- Suitable for neutral (N) or earth (PE) wiring configurations.
- Durable nylon base for reliable panel mounting.
Specifications
| Article No. | Ways | Spec (mm) | L1 (mm) | L2 Installation (mm) | Screw | Ø (mm) | Remark |
|---|---|---|---|---|---|---|---|
| T007-0609/6 | 6 | 6×9 | 60.5 | 35×6 | M4 | 5.0 | T007-0609/6B, T007-0609/6G |
| T007-0609/7 | 7 | 6×9 | 60.5 | 35×6 | M4 | 5.0 | T007-0609/7B, T007-0609/7G |
| T007-0609/8 | 8 | 6×9 | 60.5 | 35×6 | M4 | 5.0 | T007-0609/8B, T007-0609/8G |
| T007-0609/10 | 10 | 6×9 | 69 | 35×6 | M4 | 5.0 | T007-0609/10B, T007-0609/10G |
| T007-0609/12 | 12 | 6×9 | 81 | 35×6 | M4 | 5.0 | T007-0609/12B, T007-0609/12G |
| T007-0609/14 | 14 | 6×9 | 93 | 35×6 | M4 | 5.0 | T007-0609/14B, T007-0609/14G |
| T007-0609/16 | 16 | 6×9 | 105 | 35×6 | M4 | 5.0 | T007-0609/16B, T007-0609/16G |

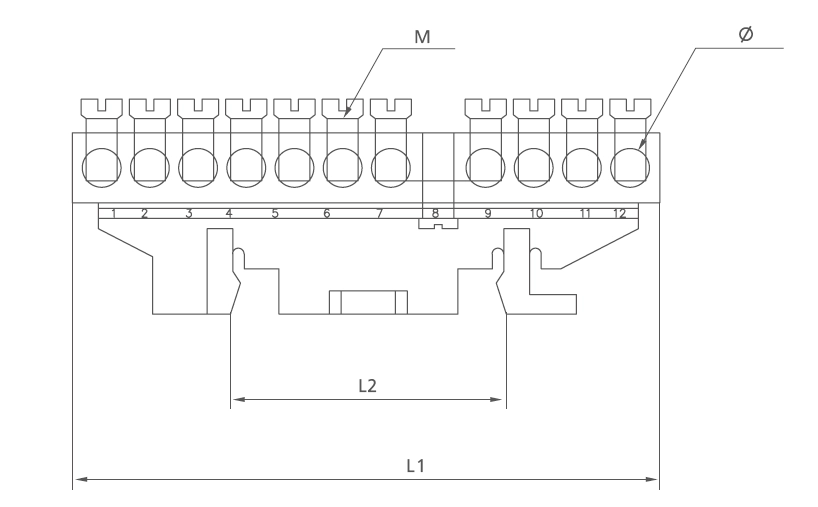

Dimension
Applications
The brass terminal block T007 is widely used in control cabinets, OEM switchboards, and distribution panels.
It supports compact layouts where space saving and solid connection reliability are crucial.
Selection Guide
For compact assemblies, use 6–8 way models; choose 12–16 way brass terminal block T007 for extended branch distribution.
Installation
Mount the unit on a flat, insulated surface and connect wires per rated torque.
The brass terminal block T007 base design ensures firm seating and easy screwdriver access.
Maintenance
Re-torque the screws periodically, check contact points, and inspect for oxidation.
Regular inspection keeps the brass terminal block T007 performing reliably for long-term operation.
FAQ
Can the T007 be used as both neutral and earth bar?
Yes, brass terminal block T007 can serve as either neutral (N) or earth (PE) link depending on panel design.
What is the standard hole spacing?
Each model of brass terminal block T007 follows 35 × 6 mm spacing with M4 screws and 5.0 mm bore diameter.
How should the screws be maintained?
Apply correct torque per M4 standard and recheck after thermal cycling to maintain consistent pressure.
