Brass Terminal Block — T008 Series
High-strength brass bar with insulated nylon frame and optional transparent cover.
3–15 ways (7 × 10 mm bore), M5 screws with Ø 6.5 mm holes.
Vertical mount design for clear separation and safe installation.
Ideal for power distribution, industrial panels, and busbar connections.
Overview
The brass terminal block T008 features a vertical insulated stand and optional transparent cover, offering enhanced safety and visibility for multi-circuit wiring.
Built with a precision-machined brass bar, brass terminal block T008 ensures low contact resistance, stable tightening torque, and long service life in electrical distribution systems.
With bore size 7 × 10 mm and M5 screws (Ø 6.5 mm holes), the brass terminal block T008 provides robust mechanical stability while simplifying maintenance and inspection.
Its upright mount design makes it suitable for industrial switchboards, busbar connections, and control panels.
Key Features
- Solid brass conductor with high conductivity and corrosion resistance.
- Insulated nylon base and optional transparent cover for extra protection.
- Bore size 7 × 10 mm with M5 screws, Ø 6.5 mm holes for firm termination.
- Available in 3, 4, 5, 6, 7, 8, 10, 12, and 15 ways for various applications.
- Mount vertically for better isolation and easy visual inspection.
Specifications
| Article No. | Ways | Spec (mm) | L1 (mm) | L2 Installation (mm) | Screw | Ø (mm) |
|---|---|---|---|---|---|---|
| T008-0710/3 | 3 | 7×10 | 59.5 | 49.5 | M5 | 6.5 |
| T008-0710/4 | 4 | 7×10 | 67.5 | 57.5 | M5 | 6.5 |
| T008-0710/5 | 5 | 7×10 | 75.5 | 65.5 | M5 | 6.5 |
| T008-0710/6 | 6 | 7×10 | 83.5 | 73.5 | M5 | 6.5 |
| T008-0710/7 | 7 | 7×10 | 91.5 | 81.5 | M5 | 6.5 |
| T008-0710/8 | 8 | 7×10 | 99.5 | 89.5 | M5 | 6.5 |
| T008-0710/10 | 10 | 7×10 | 115.5 | 105.5 | M5 | 6.5 |
| T008-0710/12 | 12 | 7×10 | 131.5 | 121.5 | M5 | 6.5 |
| T008-0710/15 | 15 | 7×10 | 155.5 | 145.5 | M5 | 6.5 |

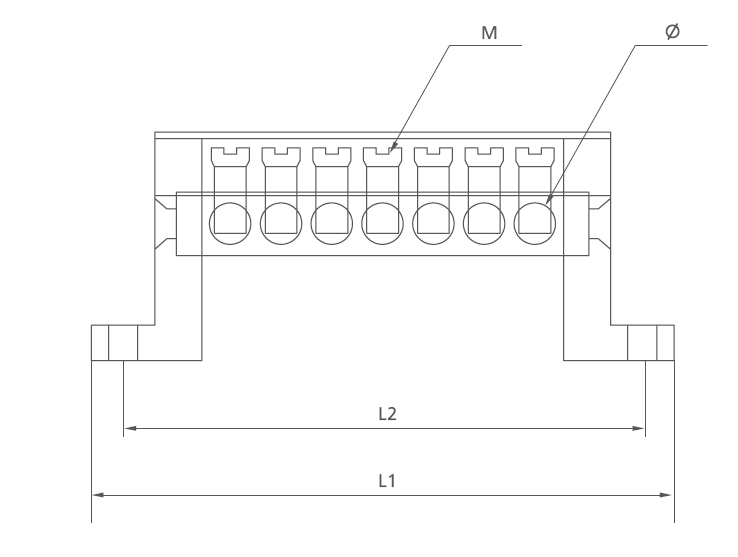

Dimension
Applications
The brass terminal block T008 is commonly used in busbar assemblies, power distribution units, and control panels where high current connections require mechanical rigidity and easy visual inspection.
Selection Guide
Choose 3–6 way models for compact boards and 10–15 way brass terminal block T008 for larger distribution or machine control sections.
Installation
Mount the insulated base on a flat surface and use M5 mounting screws with recommended torque. The optional transparent cover on brass terminal block T008 offers finger safety and dust protection.
Maintenance
Check terminal tightness periodically and inspect for oxidation. Regular maintenance keeps the brass terminal block T008 in stable working condition under thermal stress.
FAQ
Does the T008 come with a protective cover?
Yes, the brass terminal block T008 offers an optional transparent cover for safe and clean installation.
What is the standard mounting dimension?
All T008 models follow a 35 × 6 mm mount pattern with 7 × 10 mm bores and M5 screws.
Is it suitable for high-current applications?
Yes, the solid brass body and 6.5 mm hole design of brass terminal block T008 support high current with excellent thermal dissipation.
