Chassis Cable Ties WLE — Panel/Push Mount Nylon 66 UL94V-2
Chassis cable ties with integrated panel mount plug; fast push mount cable tie install.
Nylon 66 chassis cable tie (UL94V-2), corrosion-resistant and reliable 100 LBS tensile.
Width 7.8 mm, length 280/380 mm; single-tooth or double-tooth snap for secure chassis.
Overview

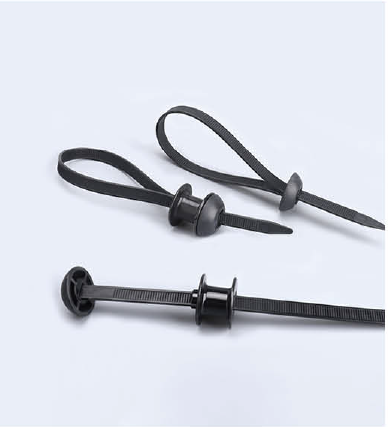

Chassis cable ties combine a releasable first loop with a one-piece strap and a panel mount cable tie plug. Installers can pre-wrap the harness, then snap the push mount cable tie into a chassis hole for final tensioning—speeding assembly and preventing loose routing.
Each nylon 66 chassis cable tie is UL94V-2 rated and provides a consistent 100 LBS (45 KGS) tensile. The mushroom-style snap mount cable ties head seats firmly in sheet metal or plastic panels, ideal for automotive, appliances and machinery.
Product Characteristics & Material
- Two-piece concept in one assembly: buckle and strap are integrated; the first loop is releasable before final lock.
- Material: Nylon 66 UL94V-2; heat-resisting, acid & erosion resistant; good electrical insulation; not easy to age.
- Zero-insertion-force strap entry for quick threading; curved tip eases blind installs.
- Standard color: black; UV-resistant black available.
Technical Information
- Applicable temperature: −40 °C ~ +85 °C.
- Installation temperature: −10 °C ~ +85 °C.
- Head style: snap/push mount for panel mount cable tie fixing.

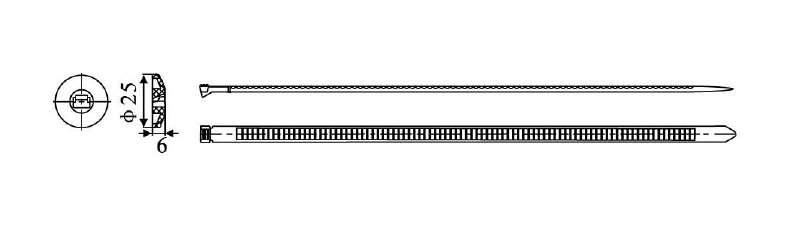

Dimension
Specifications
| Item No. | Length L (mm) | Width W (mm) | Max. Bundle Dia. (mm) | Tensile Strength (LBS) | Tensile Strength (KGS) | Remark |
|---|---|---|---|---|---|---|
| WLE-280CH | 280 | 7.8 | 65 | 100 | 45 | Single Tooth |
| WLE-380CH | 380 | 7.8 | 85 | 100 | 45 | Double Tooth |
Applications
- Automotive under-dash and engine-bay routing using chassis cable ties for panel retention.
- Appliances, HVAC and machinery: holes pre-punched for panel mount cable tie fixation.
- Retrofits and service kits where a fast push mount cable tie prevents rattling and abrasion.
Why Choose Willele
- Precision-molded plugs ensure strong seating of every snap mount cable ties head.
- Stable PA66 resin batches; UL94V-2 compliance and UV-grade options for outdoor exposure.
- OEM services: hole-size tuning, private label, and custom packaging for your chassis cable ties program.
FAQ
What hole size fits these chassis cable ties?
Typical chassis holes are 6–8 mm depending on plug geometry; please confirm with your panel drawing or request samples.
