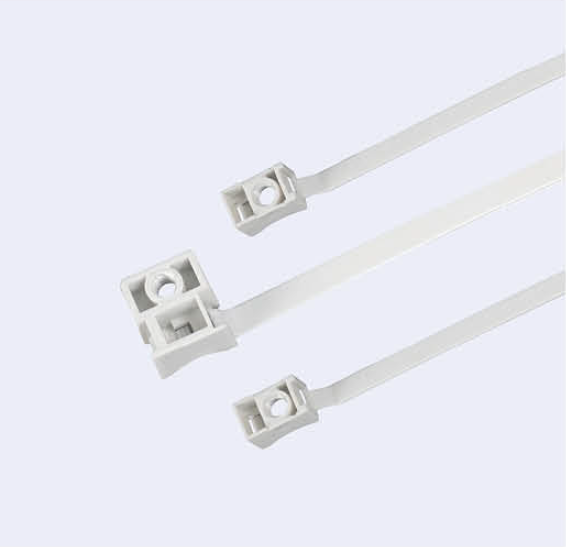

Screw Mount Cable Ties WLE — Fixed Lock Nylon 66 UL94V-2 (7.5 mm)
Screw mount cable ties with fixed-lock, mountable head and screw hole for panels.
Nylon 66 UL94V-2 cable tie, corrosion-resistant, reliable tensile strength 50 LBS (22 KGS).
Width 7.5 mm, lengths 165–285 mm; ideal mountable head cable tie for equipment wiring.
Overview
Screw mount cable ties from WLE feature a fixed lock cable tie head with an integrated screw hole. This mountable head cable tie lets you fasten the loop and then secure the head to panels, enclosures, and frames, combining bundling and mounting in one step.
Manufactured from nylon 66 screw mount zip tie grade (UL94V-2), the strap is smooth and tough for dependable 50 LBS tensile performance. Standard colors include natural and black; UV-resistant black is available for outdoor routing where cable ties with screw hole are required.
Key Features
- Mountable head cable tie with countersunk screw hole for rigid fixing to panels.
- Material: Nylon 66 UL94V-2, halogen-free, corrosion-resistant and electrically insulating.
- Stable locking teeth and rounded strap edges to protect cable jackets.
- Operating temperature −40 °C to +85 °C; installation −10 °C to +85 °C.
- Width 7.5 mm; compact sizes keep hardware tidy inside cabinets.
- Available in natural/black; UV-resistant black for outdoor applications.
Technical Information
- Material: Nylon 66 (PA66), UL approved, UL94V-2 flame rating.
- Properties: Acid & corrosion resistance, good insulation, strong bearing capacity.
- Applicable temperature: −40 °C ~ +85 °C; installation: −10 °C ~ +85 °C.
- Colors: Natural, black, UV-resistant black; custom colors available on request.

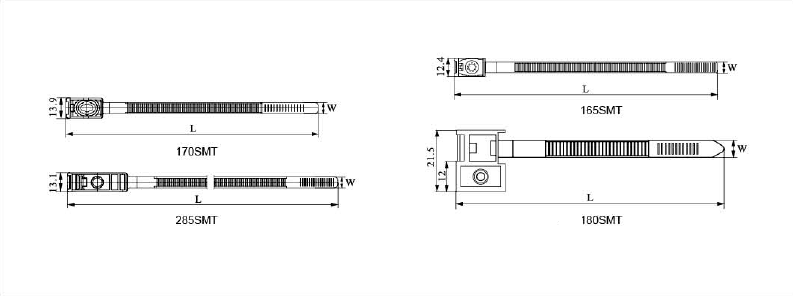

Dimension
Specifications
| Item No. | Length (inch) | Length (mm) | Width (mm) | Max. Bundle Dia. (mm) | Tensile Strength (LBS) | Tensile Strength (KGS) |
|---|---|---|---|---|---|---|
| WLE-165SMT | 6 1/2″ | 165 | 7.5 | 33 | 50 | 22 |
| WLE-170SMT | 6 11/16″ | 170 | 7.5 | 35 | 50 | 22 |
| WLE-180SMT | 7″ | 180 | 7.5 | 38 | 50 | 22 |
| WLE-230SMT | 9 1/16″ | 230 | 7.5 | 55 | 50 | 22 |
| WLE-285SMT | 11 1/2″ | 285 | 7.5 | 65 | 50 | 22 |
Applications
- Control panels, switchboards, and equipment racks requiring screw mount cable ties.
- Signage, HVAC, and lighting where a fixed lock cable tie must anchor to a surface.
- Enclosures and machinery using cable ties with screw hole for neat routing.
Why Choose Willele
- Precision-molded heads ensure strong fastening of every mountable head cable tie.
- Stable PA66 resin system with consistent UL94V-2 compliance and UV options.
- OEM color/label/packaging available for your screw mount cable ties line.
FAQ
What screw types fit the head of these screw mount cable ties?
Standard pan-head or countersunk screws sized to the head aperture (M4–M5 typical). Always verify panel thickness and torque.
Are these cable ties with screw hole suitable for outdoor use?
Yes. Choose UV-resistant black for long-term sunlight exposure; operating range −40 °C to +85 °C.
Can a fixed lock cable tie be reused?
No. It is single-use for maximum tensile integrity. For reuse, see our WLE reusable nylon cable ties.
