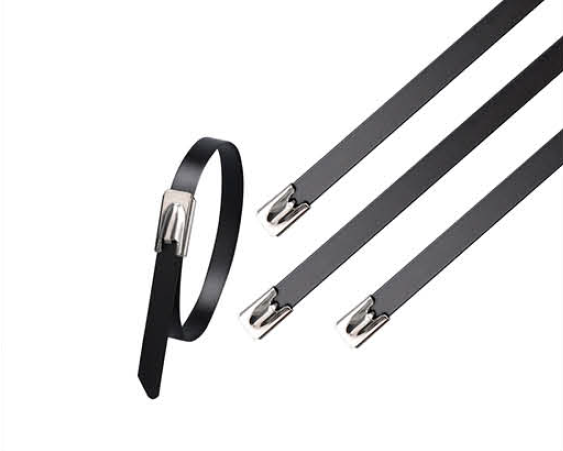

Coated Stainless Steel Cable Ties WLE — Black Epoxy/PVC, 304/316 Metal Zip Ties

  • Coated stainless steel cable ties with smooth strap and rounded edges for safe bundling.

  • 304/316 black plastic coated stainless steel cable ties; corrosion and UV resistant.

  • Width 4.6–15 mm, thickness 0.35–0.45 mm; heavy-duty options up to 440 LBS

Get A Quotation

Category:

Overview

Coated stainless steel cable ties combine a 304/316 stainless core with a protective black epoxy/PVC coating. The coating prevents galvanic contact and protects sleeves, while the smooth strap feeds quickly into the buckle for easy installation. These plastic coated stainless steel cable ties deliver excellent corrosion and UV resistance for outdoor, marine and industrial areas.

Available from 4.6–15 mm width with thickness 0.35–0.45 mm, the range covers light to heavy duty. Choose black coated stainless steel cable ties to blend with equipment and reduce glare, or specify custom colors on request.

Key Features

  • Black epoxy/PVC coating over 304/316 steel — gentle to cable jackets and painted surfaces.
  • Fast threading; rounded edges on the coated strap improve safety.
  • Excellent resistance to salt spray, chemicals and UV; suitable for outdoor use.
  • Widths 4.6 / 7.9 / 10 / 12 / 15 mm; thickness 0.35–0.45 mm.
  • Heavy-duty options up to 440 LBS tensile for demanding applications.

Technical Information

  • Material: Stainless steel 304 or 316 with epoxy/PVC coating (black standard).
  • Application temperature: −60 °C to +150 °C (coating dependent).
  • Finish/Color: Black standard; other colors available by request.
  • Options: printed/embossed ID, custom lengths, captive buckle variants.

Specifications

Item No.Length (inch)Length (mm)Width (mm)Thickness (mm)Max. Bundle Dia. (mm)Tensile Strength (LBS)Tensile Strength (KGS)
WLE-4.6×100P4″1004.60.352513060
WLE-4.6×152P6″1524.60.353513060
WLE-4.6×175P6 1/4″1754.60.354013060
WLE-4.6×200P8″2004.60.355013060
WLE-4.6×250P10″2504.60.356513060
WLE-4.6×300P11 5/8″3004.60.358013060
WLE-4.6×360P14 1/2″3604.60.359513060
WLE-4.6×400P15 3/4″4004.60.3510513060
WLE-4.6×450P17 3/4″4504.60.3512713060
WLE-4.6×500P19 11/16″5004.60.3514513060
WLE-4.6×520P21 1/16″5204.60.3515013060
WLE-4.6×600P23 5/8″6004.60.3517513060
WLE-4.6×680P26 3/4″6804.60.3519513060
WLE-4.6×750P29 9/16″7504.60.3522013060
WLE-4.6×840P32″8404.60.3525013060
WLE-4.6×900P36 1/4″9004.60.3527013060
WLE-4.6×1050P40 1/6″10504.60.3528513060
WLE-4.6×1200P48″12004.60.3535013060
WLE-7.9×152P6″1527.90.3535220100
WLE-7.9×175P6 1/4″1757.90.3540220100
WLE-7.9×200P8″2007.90.3550220100
WLE-7.9×250P10″2507.90.3565220100
WLE-7.9×300P11 5/8″3007.90.3580220100
WLE-7.9×360P14 1/2″3607.90.3595220100
WLE-7.9×400P15 3/4″4007.90.35105220100
WLE-7.9×450P17 3/4″4507.90.35127220100
WLE-7.9×500P19 11/16″5007.90.35145220100
WLE-7.9×520P21 1/16″5207.90.35150220100
WLE-7.9×600P23 5/8″6007.90.35175220100
WLE-7.9×680P25 9/16″6807.90.35195220100
WLE-7.9×750P29 9/16″7507.90.35220220100
WLE-7.9×840P32″8407.90.35250220100
WLE-7.9×900P36 1/4″9007.90.35270220100
WLE-7.9×1050P40 1/6″10507.90.35285220100
WLE-7.9×1200P48″12007.90.35350220100
WLE-10×300P36 1/4″300100.3580265120
WLE-10×360P40 1/6″360100.3595265120
WLE-10×400P48″400100.35105265120
WLE-10×520P21 1/16″520100.35150265120
WLE-10×600P23 5/8″600100.35175265120
WLE-10×680P25 9/16″680100.35195265120
WLE-10×750P29 9/16″750100.35220265120
WLE-10×840P32″840100.35250265120
WLE-10×900P36 1/4″900100.35270265120
WLE-10×1050P40 1/6″1050100.35285265120
WLE-10×1200P48″1200100.35350265120
WLE-12×300P11 5/8″300120.4580330150
WLE-12×360P14 1/2″360120.4595330150
WLE-12×400P15 3/4″400120.45105330150
WLE-12×520P21 1/16″520120.45150330150
WLE-12×600P23 5/8″600120.45175330150
WLE-12×680P25 9/16″680120.45195330150
WLE-12×750P29 9/16″750120.45220330150
WLE-12×840P32″840120.45250330150
WLE-12×900P36 1/4″900120.45270330150
WLE-12×1050P40 1/6″1050120.45285330150
WLE-12×1200P48″1200120.45350330150
WLE-15×300P11 5/8″300150.4580440200
WLE-15×360P14 1/2″360150.4595440200
WLE-15×400P15 3/4″400150.45105440200
WLE-15×520P21 1/16″520150.45150440200
WLE-15×600P23 5/8″600150.45175440200
WLE-15×680P26 3/4″680150.45195440200
WLE-15×750P29 9/16″750150.45220440200
WLE-15×840P32″840150.45250440200
WLE-15×900P36 1/4″900150.45270440200
WLE-15×1050P40 1/6″1050150.45285440200
WLE-15×1200P48″1200150.45350440200

Applications

  • Outdoor enclosures, rail and marine equipment using coated stainless steel cable ties for corrosion protection.
  • Painted pipes and hoses where epoxy coated stainless steel zip ties prevent galvanic abrasion.
  • Solar PV, signage and telecom racks needing low-gloss black stainless steel cable ties.

Why Choose Willele

  • Full range 4.6×0.35 to 15×0.45 mm; heavy-duty up to 440 LBS.
  • 304/316 cores with durable epoxy/PVC coating; OEM colors/printing available.
  • Project kitting & fast lead times for contractors.

FAQ

When should I choose 316 for coated stainless steel cable ties?

Use 316 in chloride-rich/marine areas; 304 suits most industrial sites. The coating adds an extra barrier against abrasion and corrosion.

What’s the temperature limit of these plastic coated stainless steel cable ties?

Typical application range is −60 °C to +150 °C depending on coating. The stainless core withstands higher temperatures, but follow the coating rating.

Do I need a special tool?

Hand install is possible; a stainless tie tension/cut-off tool ensures consistent clamp force and flush cutting, recommended for 10–15 mm widths.
