Overview

The WLE Self Locking Nylon Cable Ties is molded from PA66 (Nylon 66) for a balanced mix of
toughness, flexibility, and aging resistance. A one-piece pawl design provides reliable low insertion force
and high loop tensile strength, while the rounded, burr-free strap and curved lead-in speed up threading in tight spaces.
Standard operating range is −40 °C to +85 °C; an optional heat-stabilized formulation supports up to 105 °C for panels,
near-engine bays, or sun-exposed enclosures. Black self locking nylon cable ties are UV-stabilized; both natural and black variants are halogen-free
and meet UL94 V-2. Typical width options cover 2.5 / 3.6 / 4.8 / 7.6 / 9.0 / 12.7 mm with lengths up to 1220 mm,
serving harnessing, panel building, field service, and OEM applications.

Key Features

Self-locking pawl with low insertion force & strong locking teeth.
PA66 (Nylon 66) engineering resin; halogen-free, RoHS/REACH compliant.
Operating −40 °C~+85 °C; optional heat-stabilized grade up to 105 °C.
Black ties are UV-stabilized for outdoor exposure; natural (milky) for indoor.
Smooth strap & rounded edges to protect cable jackets and hands.
Curved tip for easy pick-up and fast threading in blind or crowded routes.
Available in multiple widths (2.5–12.7 mm) and lengths (60–1220 mm).
Typical minimum tensile: 18 / 40 / 50 / 120 / 175 / 250 lbs by width class.
Stable performance across humidity cycles; low creep at rated loads.
Color options: natural, black (custom colors on request).
Branding/lot code printable on strap head (OEM available).
Bulk polybag or inner-box packaging; custom label & barcodes available.

Specifications

Item	Specification
Series / Model	WLE — Self Locking Nylon Cable Ties (PA66)
Material	Nylon 66 (PA66), halogen-free
Flammability	UL94 V-2
Operating Temperature	−40 °C to +85 °C (heat-stabilized option up to 105 °C)
Color	Natural (milky), Black (UV-stabilized); custom colors on request
UV Resistance	Black ties UV-stabilized for outdoor use
Chemical Resistance	Good resistance to oils, greases, fuels; avoid strong acids/bases
Compliance	RoHS / REACH

Full Size Matrix

Item No.	Width (mm)	Width (inch)	Length (mm)	Length (inch)	Max.Bundle Dia. (mm)	Max.Bundle Dia. (inch)	Min.Bundle Dia. (mm)	Min.Bundle Dia. (inch)	Min.Tensile Strength (LBS)	Min.Tensile Strength (KGS)
WLE-3×60	2.5	0.098	60	2.36	11	0.43	2.0	0.079	18	8
WLE-3×80	2.5	0.098	80	3.15	16	0.63	2.0	0.079	18	8
WLE-3×100	2.5	0.098	100	3.94	20	0.87	2.0	0.079	18	8
WLE-3×120	2.5	0.098	120	4.72	30	1.18	2.0	0.079	18	8
WLE-3×150	2.5	0.098	150	5.91	35	1.38	2.0	0.079	18	8
WLE-3×200	2.5	0.098	200	7.87	50	1.97	2.0	0.079	18	8
WLE-4×100	3.6	0.142	100	3.94	22	1.30	3.0	0.118	42	18
WLE-4×140	3.6	0.142	140	5.51	33	1.38	3.0	0.118	42	18
WLE-4×150	3.6	0.142	150	5.91	35	1.65	3.0	0.118	42	18
WLE-4×180	3.6	0.142	180	7.09	42	1.97	3.0	0.118	42	18
WLE-4×200	3.6	0.142	200	7.87	50	2.56	3.0	0.118	42	18
WLE-4×250	3.6	0.142	250	9.84	65	2.76	3.0	0.118	42	18
WLE-4×280	3.6	0.142	280	11.02	70	3.15	3.0	0.118	42	18
WLE-4×300	3.6	0.142	300	11.81	80	3.94	3.0	0.118	42	18
WLE-4×350	3.6	0.142	350	13.78	100	3.94	3.0	0.118	42	18
WLE-4×370	3.6	0.142	370	14.57	105	4.13	3.0	0.118	42	18
WLE-5×120	4.8	0.189	120	4.72	30	1.18	3.5	0.138	50	22
WLE-5×150	4.8	0.189	150	5.91	40	1.57	3.5	0.138	50	22
WLE-5×180	4.8	0.189	180	7.09	42	1.65	3.5	0.138	50	22
WLE-5×200	4.8	0.189	200	7.87	50	1.97	3.5	0.138	50	22
WLE-5×250	4.8	0.189	250	9.84	65	2.56	8.0	0.315	50	22
WLE-5×280	4.8	0.189	280	11.02	70	2.76	3.5	0.138	50	22
WLE-5×300	4.8	0.189	300	11.81	80	3.16	3.5	0.138	50	22
WLE-5×350	4.8	0.189	350	13.78	90	3.54	3.5	0.138	50	22
WLE-5×370	4.8	0.189	370	14.57	98	3.86	3.5	0.138	50	22
WLE-5×380	4.8	0.189	380	14.96	102	4.02	3.5	0.138	50	22
WLE-5×400	4.8	0.189	400	15.75	105	4.13	3.5	0.138	50	22
WLE-5×430	4.8	0.189	430	16.93	120	4.72	3.5	0.138	50	22
WLE-5×450	4.8	0.189	450	17.72	130	5.12	3.5	0.138	50	22
WLE-5×500	4.8	0.189	500	19.69	150	5.91	3.5	0.138	50	22
WLE-5×550	4.8	0.189	550	21.65	160	6.30	10.0	0.394	50	22
WLE-5×600	4.8	0.189	600	23.62	170	6.69	10.0	0.394	50	22
WLE-5×650	4.8	0.189	650	25.59	185	7.28	10.0	0.394	50	22
WLE-8×200	7.6	0.299	200	7.87	50	1.97	3.5	0.138	120	55
WLE-8×250	7.6	0.299	250	9.84	65	2.56	8.0	0.315	120	55
WLE-8×300	7.6	0.299	300	11.81	80	3.15	8.0	0.315	120	55
WLE-8×350	7.6	0.299	350	13.78	90	3.54	8.0	0.315	120	55
WLE-8×380	7.6	0.299	380	14.96	98	3.94	8.0	0.315	120	55
WLE-8×400	7.6	0.299	400	15.75	105	4.13	8.0	0.315	120	55
WLE-8×450	7.6	0.299	450	17.72	110	4.33	8.0	0.315	120	55
WLE-8×500	7.6	0.299	500	19.69	150	5.91	8.0	0.315	120	55
WLE-8×550	7.6	0.299	550	21.65	165	6.50	8.0	0.315	120	55
WLE-8×600	7.6	0.299	600	23.62	170	6.69	10.0	0.394	120	55
WLE-8×650	7.6	0.299	650	25.59	185	7.28	10.0	0.394	120	55
WLE-8×700	7.6	0.299	700	27.56	190	7.48	10.0	0.394	120	55
WLE-8×750	7.6	0.299	750	29.53	200	7.87	10.0	0.394	120	55
WLE-8×800	7.6	0.299	800	31.50	205	8.07	10.0	0.394	120	55
WLE-9×350	9.0	0.354	350	13.7	90	3.54	8.0	0.315	175	80
WLE-9×400	9.0	0.354	400	15.75	105	4.13	10.0	0.394	175	80
WLE-9×450	9.0	0.354	450	17.72	118	4.65	10.0	0.394	175	80
WLE-9×500	9.0	0.354	500	19.69	150	5.91	10.0	0.394	175	80
WLE-9×550	9.0	0.354	550	21.65	160	6.30	10.0	0.394	175	80
WLE-9×600	9.0	0.354	600	23.62	170	6.69	10.0	0.394	175	80
WLE-9×650	9.0	0.354	650	25.59	185	7.28	10.0	0.394	175	80
WLE-9×700	9.0	0.354	700	27.56	190	7.48	10.0	0.394	175	80
WLE-9×750	9.0	0.354	750	29.53	200	7.87	10.0	0.394	175	80
WLE-9×760	9.0	0.354	760	29.92	205	8.07	10.0	0.394	175	80
WLE-9×800	9.0	0.354	800	31.50	230	9.06	10.0	0.394	175	80
WLE-9×850	9.0	0.354	850	33.46	240	9.45	10.0	0.394	175	80
WLE-9×900	9.0	0.354	900	35.43	265	10.43	10.0	0.394	175	80
WLE-9×1000	9.0	0.354	1000	39.37	300	11.81	10.0	0.394	175	80
WLE-9×1100	9.0	0.354	1100	43.31	335	13.19	10.0	0.394	175	80
WLE-9×1220	9.0	0.354	1200	48.02	370	14.57	10.0	0.394	175	80
WLE-9×1350	9.0	0.354	1350	53.00	380	15.00	10.0	0.394	175	80
WLE-9×1500	9.0	0.354	1500	60.00	470	18.50	10.0	0.394	175	80
WLE-12×300	12	0.189	300	11.81	80	3.16	3.5	0.138	250	114
WLE-12×500	12	0.189	500	19.69	150	5.91	3.5	0.138	250	114
WLE-12×600	12	0.354	600	23.62	170	6.69	10.0	0.394	250	114
WLE-12×650	12	0.354	650	25.59	185	7.28	10.0	0.394	250	114
WLE-12×750	12	0.354	750	29.53	200	7.87	10.0	0.394	250	114

Note: Size availability may vary by region. Confirm exact SKU list and bundle diameters per length before ordering.

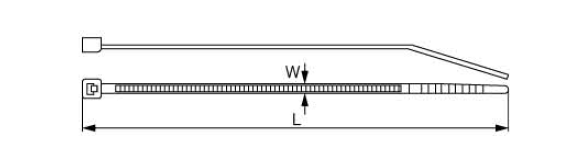

Dimension

Applications

Panel building, control cabinets, photovoltaic combiner boxes, and junction boxes.
Wire harnessing in HVAC, lighting, signage, and appliance assembly.
Outdoor routing on cable trays or conduits (use black UV-stabilized type).
Automotive aftermarket, e-bike/scooter wiring, and field service kits.
General packaging, warehouse kitting, and temporary fixture bundling.

Why Choose WILLELE

Balanced inventory of core sizes for fast fulfillment; OEM color/label supported.
Quality-controlled PA66 resin, stable tensile and lock performance lot-to-lot.
Clear size coding & barcoding for easy picking and on-site stock checks.
Packaging options: bulk polybag / inner box / master carton; custom MOQ available.

FAQ

Q1. Are black ties UV-resistant?Yes. Black WLE self locking nylon cable ties are UV-stabilized for outdoor exposure. Choose black for long-term sunlit installations.

Q2. Can I use them above 85 °C?Use the heat-stabilized grade (optional) for environments up to 105 °C. For higher or sustained heat, consider metal ties.

Q3. What is the loop tensile rating?It depends on width: approx. 18 / 40 / 50 / 120 / 175 / 250 lbs for 2.5 / 3.6 / 4.8 / 7.6 / 9.0 / 12.7 mm respectively.

Q4. Are they halogen-free?Yes, the PA66 formulation is halogen-free and compliant with RoHS/REACH.

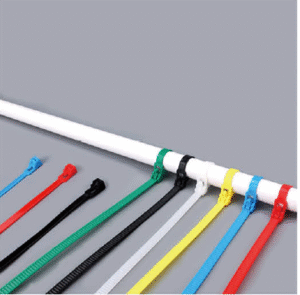

Q5. Can I undo a self-locking tie?Self-locking ties are designed for one-time use. For temporary fastening, use a releasable type.

Q6. Storage recommendations?Store sealed in a cool, dry environment away from direct sunlight; avoid prolonged high humidity before use.
