Circle Cable Clips — Round Cable Clips with Nails (PE White)
Injection-molded circle cable clips in white PE with hardened steel nails.
Quick round cable clips with nails for neat wall routing of cables and pipes.
Sizes 4–50 mm inner circle; one-hit nail-in install saves time and labor.
Overview
Circle cable clips (U-shaped, round cable clips with nails) are one-piece PE saddles with pre-fitted hardened steel nails. Install these round cable clips with nails by positioning over the cable and driving the nail—fast, tidy routing on walls, wood and plaster saves time and labor versus separate anchors.
Product Characteristics & Material
- Material: PE (white) injection molding with high elasticity and impact resistance.
- Nail: hardened carbon steel, zinc plated; pre-mounted for rapid installation.
- Design: rounded inner path protects jackets; classic U-shaped cable clips profile.
- Finish: clean white for residential and commercial interiors; black available by request.
Technical Information
- Recommended base: wood, plaster, masonry (use pilot holes as needed).
- Suitable cables: data/telecom, coax, speaker wire, small conduits.
- Operating environment: indoor; outdoor use requires UV-stabilized version.

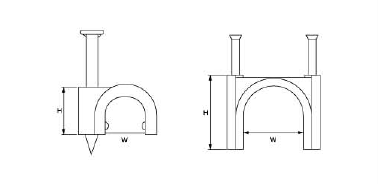

Dimension
Specifications
| Item No. | Height H (mm) | Circle Path D (mm) | Nail (mm) |
|---|---|---|---|
| WLR-4mm | 5.3 | 4.0 | 1.7×15 |
| WLR-5mm | 6.3 | 5.0 | 1.7×15 |
| WLR-6mm | 7.4 | 6.0 | 1.8×16 |
| WLR-7mm | 8.4 | 7.0 | 1.8×18 |
| WLR-8mm | 9.4 | 8.0 | 1.9×18 |
| WLR-9mm | 10.4 | 9.0 | 2.0×20 |
| WLR-10mm | 11.4 | 10.0 | 2.0×22 |
| WLR-12mm | 13.4 | 12.0 | 2.0×25 |
| WLR-14mm | 16.4 | 14.0 | 2.3×38 |
| WLR-16mm | 17.7 | 16.0 | 2.3×32 |
| WLR-18mm | 19.7 | 18.0 | 2.5×35 |
| WLR-20mm | 22.2 | 20.0 | 2.8×38 |
| WLR-22mm | 25.0 | 22.0 | 2.8×40 |
| WLR-25mm | 27.7 | 25.0 | 3.0×45 |
| WLR-30mm | 33.1 | 30.0 | 3.5×55 |
| WLR-32mm | 35.6 | 32.0 | 3.5×55 |
| WLR-35mm | 36.6 | 35.0 | 3.5×60 |
| WLR-40mm | 45.2 | 40.0 | 3.5×65 |
| WLR-50mm | 53.2 | 50.0 | 3.5×65 |
Applications
- Home/office wiring where circle cable clips keep LAN, coax and speaker wires tidy.
- Retail displays and skirting board runs using U-shaped cable clips for quick fastening.
- Light pipes or conduits on wooden frames with round cable clips with nails.
Why Choose Willele
- High-elastic PE saddles and hardened nails for reliable holding power.
- Full size range 4–50 mm inner circle; bulk packs and mixed assortments available.
- OEM color, labeling and packaging for your circle cable clips program.
FAQ
Can these circle cable clips be used outdoors?
Standard white PE is intended for indoor use. For outdoor or sunny areas, request UV-stabilized or black versions.
What drill size should I use before nailing?
On dense walls or concrete, pre-drill a pilot hole slightly smaller than the nail diameter to avoid cracking and ensure straight entry.
Do the round cable clips with nails fit flat Ethernet and round coax?
They are optimized for round cables. For flat cables, consider our flat cable clips series.
