Understanding Clear Heat Shrink Tubes: The Essential Guide for Industrial Applications
In modern electrical and electronic manufacturing, clear heat shrink tubes have become indispensable components for wire management, insulation, and protection. Also known as transparent tubing or see-through heat shrink, these specialized polymer sleeves offer unique advantages that traditional opaque heat shrink materials cannot provide. As a leading B2B manufacturer of electric equipment, willele Electric specializes in producing high-quality clear heat shrink tubes designed to meet the demanding requirements of industrial applications.
Clear heat shrink tubes allow visual inspection of underlying connections, color-coded wiring, and component markings without removing the protective covering. This transparency feature makes them invaluable in applications ranging from aerospace wiring harnesses to medical device assembly, where quality assurance and traceability are paramount.

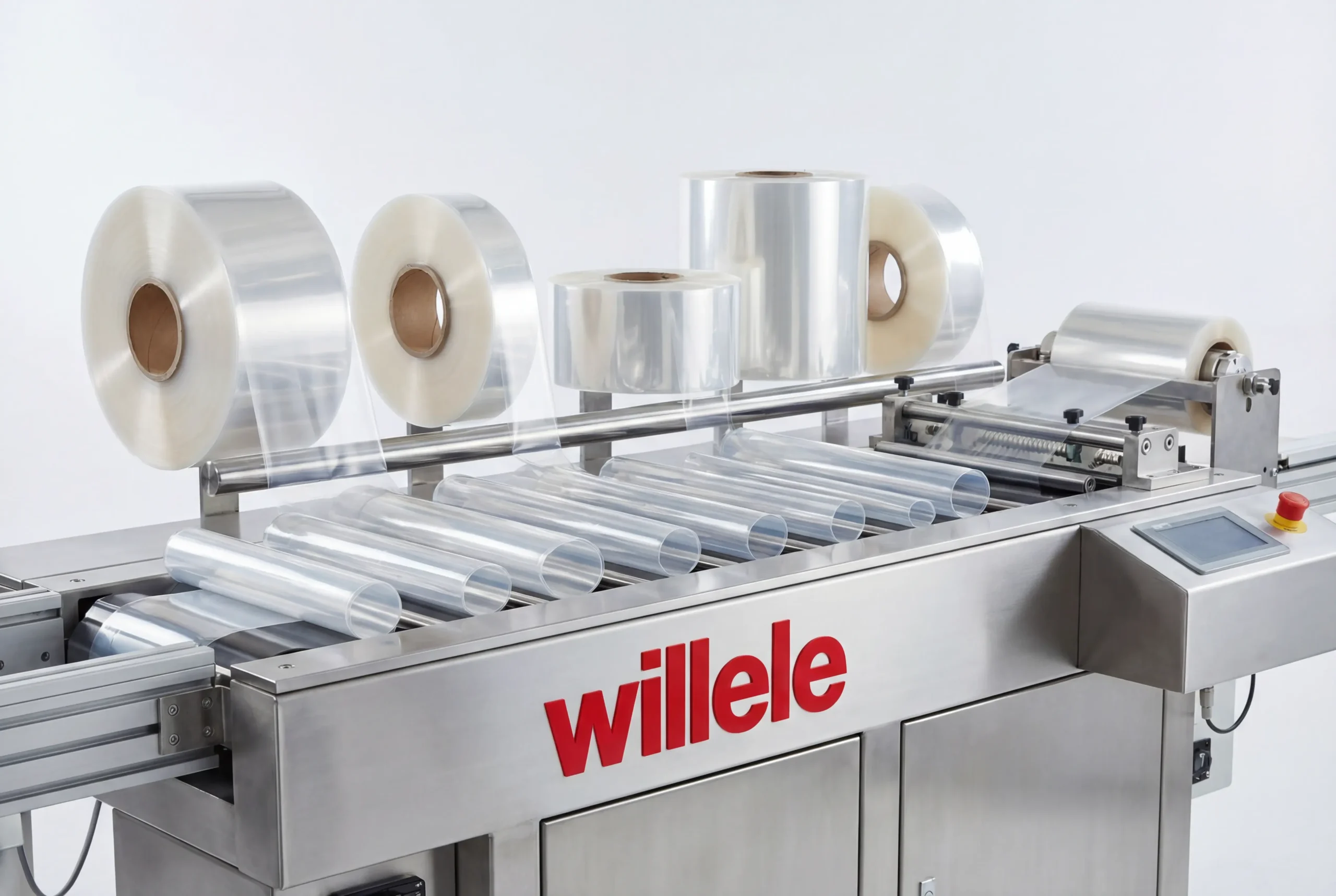

What is a Clear Heat Shrink Tube?
A clear heat shrink tube is a transparent thermoplastic sleeve that contracts radially when exposed to heat, typically between 90°C to 200°C depending on the material composition. Unlike conventional opaque heat shrink tubing, transparent versions are manufactured from specially formulated polymers that maintain optical clarity while providing excellent mechanical protection, electrical insulation, and environmental resistance.

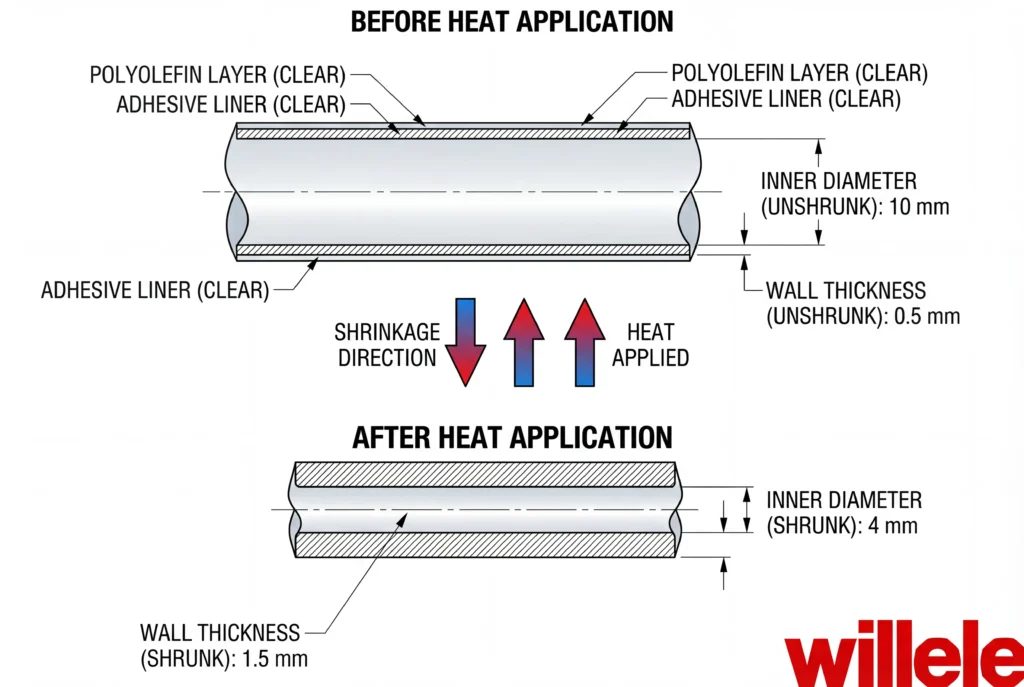

The fundamental operating principle involves cross-linked polymer chains that have been expanded during manufacturing. When heat is applied, these molecular chains attempt to return to their original state, causing the tube to shrink uniformly around the substrate. The transparent tubing maintains its clarity throughout this process, allowing continuous visibility of the protected components.
Key Characteristics of Clear Heat Shrink Tubes
See-through heat shrink tubes are distinguished by several critical properties:
- Optical Transparency: Maintains 85-95% light transmission for clear component visibility
- Shrink Ratio: Typically ranges from 2:1 to 4:1, accommodating various substrate sizes
- Temperature Resistance: Operational range from -55°C to +135°C for standard grades
- Dielectric Strength: Provides insulation values of 15-25 kV/mm
- Chemical Resistance: Resistant to common solvents, oils, and mild acids

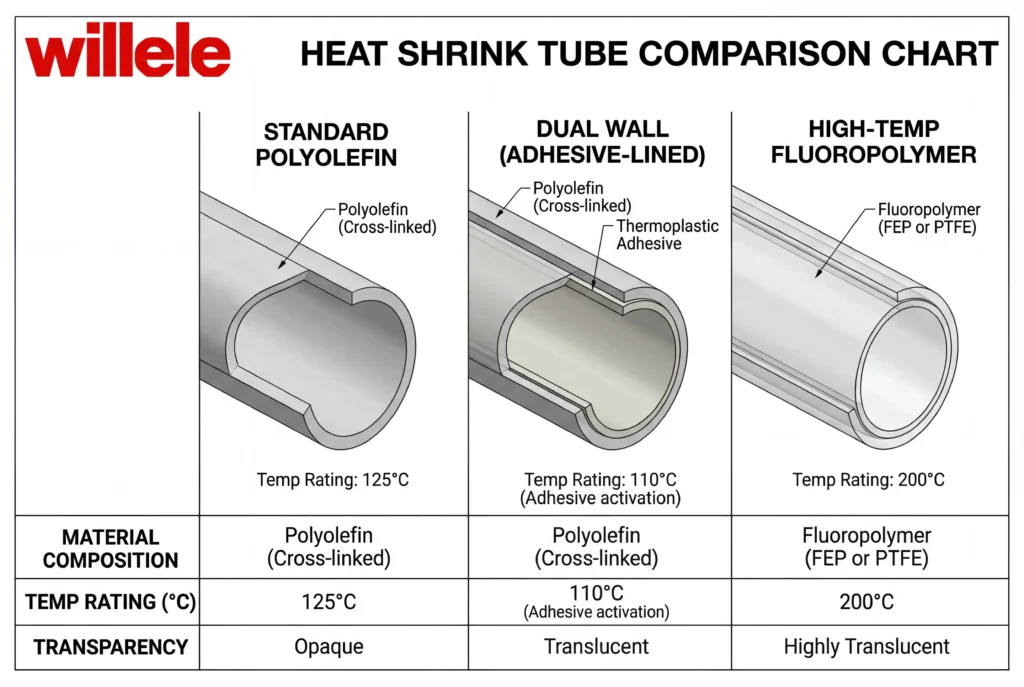

Material Composition and Properties
Primary Materials Used in Clear Heat Shrink Tubes
| Material Type | Transparency Level | Max Temperature | Key Advantages | Typical Applications |
|---|---|---|---|---|
| PVC (Polyvinyl Chloride) | Good (80-85%) | 105°C | Cost-effective, flame retardant | General wire bundling, labeling |
| Polyolefin | Excellent (90-95%) | 125°C | Superior clarity, flexible | Electronics, automotive wiring |
| Fluoropolymer (PVDF) | Excellent (90-95%) | 175°C | Chemical resistant, high temp | Aerospace, chemical processing |
| Silicone | Good (85-90%) | 200°C | Extreme flexibility, biocompatible | Medical devices, high-temp sensors |
Material Property Comparison Table
| Property | Clear PVC | Clear Polyolefin | Clear PVDF | Clear Silicone |
|---|---|---|---|---|
| Tensile Strength (MPa) | 10-15 | 15-20 | 35-45 | 8-12 |
| Elongation at Break (%) | 200-250 | 200-300 | 250-400 | 400-600 |
| Dielectric Strength (kV/mm) | 15-18 | 18-22 | 22-25 | 20-24 |
| Water Absorption (%) | 0.4-0.6 | <0.01 | <0.04 | 0.1-0.2 |
| Shrink Temperature (°C) | 70-90 | 90-120 | 135-175 | 150-200 |
| Recovery Temperature (°C) | 90-105 | 110-125 | 160-175 | 175-200 |
Cross-Linking Technology
willele Electric employs advanced cross-linking methods to enhance the performance of transparent tubing:
- Radiation Cross-linking: Uses electron beam or gamma radiation to create molecular bonds, resulting in superior mechanical properties and chemical resistance
- Chemical Cross-linking: Employs peroxide catalysts for cost-effective production with good performance characteristics
- Silane Cross-linking: Provides moisture-cure capability for enhanced long-term stability
Key Benefits and Applications
Advantages of Using Clear Heat Shrink Tubes
1. Visual Inspection Capability\
The primary advantage of see-through heat shrink is the ability to inspect underlying components without removal. This feature enables:
- Quality control verification of crimped connections
- Identification of color-coded wires and cables
- Reading of component markings and serial numbers
- Detection of corrosion or damage during routine maintenance
2. Enhanced Quality Assurance\
Manufacturing environments benefit from:
- Reduced rework and inspection time
- Improved traceability in regulated industries
- Non-destructive testing capabilities
- Documentation through photography without disassembly
3. Professional Aesthetics\
Clear heat shrink tubes provide:
- Clean, professional appearance in visible installations
- Preservation of color-coding schemes
- Enhanced product presentation for retail electronics
- Minimal visual impact in consumer-facing applications
4. Functional Advantages
- Protection against abrasion, moisture, and chemicals
- Electrical insulation up to 600V
- Strain relief for wire terminations
- Environmental sealing when used with adhesive-lined variants
Technical Specifications and Selection Guide
Shrink Ratio Comparison
| Shrink Ratio | Before Heating ID | After Heating ID | Typical Use Cases | Wall Thickness |
|---|---|---|---|---|
| 2:1 | 3.2mm | 1.6mm | Standard wire insulation, small connectors | 0.3-0.5mm |
| 3:1 | 6.4mm | 2.1mm | Irregular shapes, multiple wires | 0.4-0.7mm |
| 4:1 | 12.7mm | 3.2mm | Large diameter variations, transitions | 0.5-0.9mm |
| 6:1 | 25.4mm | 4.2mm | Extreme size differences, specialized applications | 0.7-1.2mm |
Temperature Rating Selection
| Operating Environment | Recommended Material | Continuous Temp | Peak Temp | Typical Industries |
|---|---|---|---|---|
| Standard Indoor | Clear Polyolefin | -55°C to +125°C | 150°C | Consumer electronics, telecommunications |
| Automotive Engine Bay | Clear Polyolefin/PVDF | -40°C to +150°C | 175°C | Automotive, transportation |
| Aerospace Applications | Clear PVDF | -65°C to +175°C | 200°C | Aviation, defense, space |
| Medical Devices | Clear Silicone | -60°C to +200°C | 230°C | Healthcare, laboratory equipment |
| Chemical Processing | Clear PVDF/FEP | -40°C to +150°C | 200°C | Chemical, pharmaceutical |
Installation Process and Best Practices

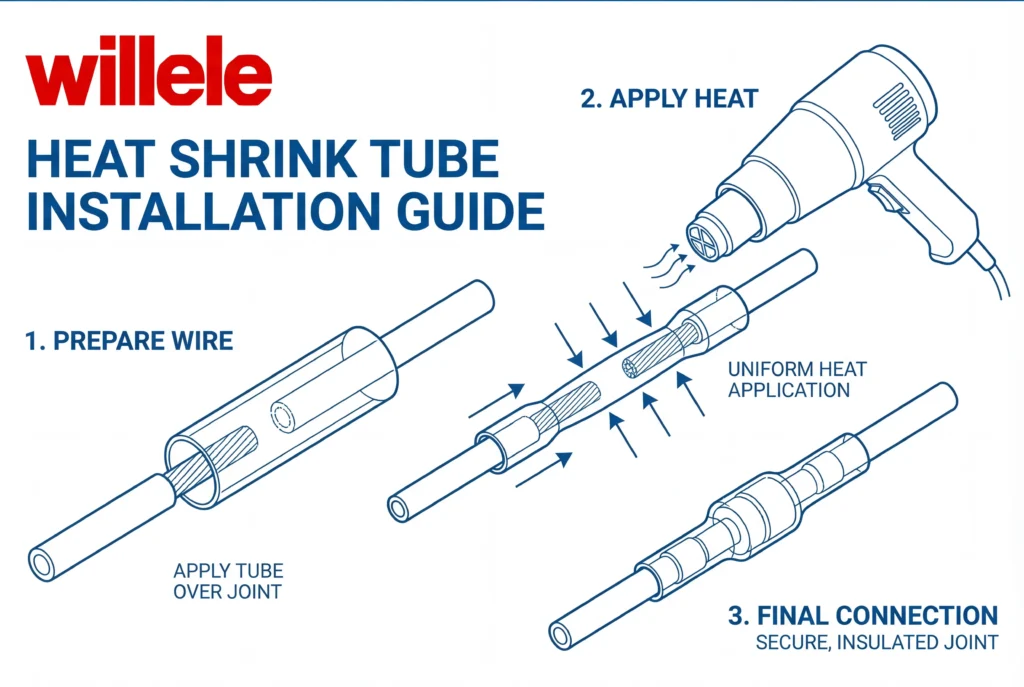

Step-by-Step Installation Guide
Step 1: Selection and Preparation
- Choose appropriate shrink ratio (recovered diameter should be 20-30% smaller than substrate)
- Cut tube to length, allowing 6-12mm overhang on each side
- Ensure surfaces are clean, dry, and free from contaminants
Step 2: Positioning
- Slide clear heat shrink tube over the connection or component
- Center the tube to provide equal overhang on both ends
- Verify that all areas requiring protection are covered
Step 3: Heat Application
- Use appropriate heat source: heat gun (recommended), oven, or hot air tunnel
- Apply heat evenly, starting from the center and working toward ends
- Maintain consistent distance (typically 10-15cm for heat guns)
- Watch for complete shrinkage and bubble-free surface
Step 4: Cooling and Inspection
- Allow tube to cool naturally (forced cooling may cause stress)
- Inspect through transparent surface for proper coverage
- Verify no air gaps or incomplete shrinkage
- Check for uniform wall thickness
Installation Parameters Table
| Heat Source | Temperature Setting | Distance from Surface | Movement Pattern | Shrink Time |
|---|---|---|---|---|
| Heat Gun | 300-400°C | 10-15cm | Circular, end-to-center | 15-45 seconds |
| Hot Air Oven | 120-150°C | N/A | Static positioning | 2-5 minutes |
| Infrared Heater | 200-300°C | 5-10cm | Linear scanning | 10-30 seconds |
| Hot Air Tunnel | 150-200°C | N/A | Conveyor speed dependent | 30-90 seconds |
Quality Standards and Certifications
willele Electric manufactures transparent tubing products that comply with international quality standards:
Industry Standards Compliance
- UL 224: Standard for extruded insulating tubing
- AMS-DTL-23053: Military specification for heat shrinkable tubing
- SAE-AS23053: Aerospace standard for electrical insulation
- IEC 60684: International standard for flexible insulating sleeving
- RoHS Compliant: Restriction of hazardous substances
- REACH Certified: European chemical safety regulation
Quality Assurance Testing
| Test Parameter | Standard Method | Acceptance Criteria | Testing Frequency |
|---|---|---|---|
| Shrink Ratio | ASTM D2671 | ±5% of nominal | Per production lot |
| Tensile Strength | ASTM D638 | ≥10 MPa minimum | Weekly |
| Dielectric Strength | ASTM D149 | ≥15 kV/mm | Per batch |
| Transparency | ASTM D1003 | ≥85% light transmission | Daily |
| Heat Aging | ASTM D573 | <20% property change | Monthly |
| Cold Flexibility | ASTM D2671 | No cracking at -55°C | Quarterly |
Industry Applications
Aerospace and Aviation
See-through heat shrink tubes are critical in aerospace applications where weight reduction, reliability, and inspectability are essential:
- Wire harness identification and protection
- Avionics component insulation
- Sensor cable protection with visible color coding
- Emergency lighting system connections
Medical Device Manufacturing
Clear heat shrink provides biocompatible protection while maintaining component visibility:
- Catheter assembly and marking
- Surgical instrument cable protection
- Patient monitoring equipment wiring
- Diagnostic device component insulation
Electronics and Telecommunications
The electronics industry relies heavily on transparent tubing for:
- PCB component lead insulation
- Connector strain relief with visible wire colors
- Fiber optic cable protection and identification
- USB and data cable reinforcement
Automotive Industry
Modern vehicles utilize clear heat shrink tubes throughout electrical systems:
- Engine compartment wiring harnesses
- Sensor cable protection with maintained color coding
- Battery terminal insulation and protection
- Interior lighting and control system wiring
Application Comparison Table
| Application | Recommended Material | Typical Size Range | Key Requirements | Special Features |
|---|---|---|---|---|
| Consumer Electronics | Clear Polyolefin | 1.5-12mm | UL recognition, flame retardant | Color code visibility |
| Automotive Wiring | Clear Polyolefin | 3-25mm | High temp, fuel resistance | SAE compliance |
| Medical Devices | Clear Silicone | 0.8-8mm | Biocompatibility, sterilizable | USP Class VI |
| Aerospace Harnesses | Clear PVDF | 2-35mm | Lightweight, high reliability | MIL-SPEC certified |
| Industrial Control | Clear PVC/Polyolefin | 4-50mm | Chemical resistant, durable | Wide temp range |
Selecting the Right Clear Heat Shrink Tube
Decision Matrix for Material Selection
Consider these factors when choosing clear heat shrink tube products:
Environmental Conditions:
- Operating temperature range (continuous and peak)
- Exposure to chemicals, solvents, or fuels
- UV radiation and outdoor weathering requirements
- Moisture and humidity levels
Electrical Requirements:
- Voltage rating and dielectric strength needed
- Current carrying capacity of protected conductors
- Insulation resistance requirements
- Arc and track resistance specifications
Mechanical Demands:
- Abrasion resistance needs
- Flexibility and bend radius requirements
- Tensile and tear strength specifications
- Impact and crush resistance
Regulatory Compliance:
- Industry-specific certifications required
- Flammability ratings (UL94, etc.)
- Material safety and toxicity standards
- Environmental regulations (RoHS, REACH)
Why Choose willele Electric for Clear Heat Shrink Tubes
As a specialized B2B manufacturer of electric equipment, willele Electric offers comprehensive solutions for transparent tubing requirements:
Manufacturing Excellence
- State-of-the-art extrusion and cross-linking facilities
- Rigorous quality control at every production stage
- Custom formulation capabilities for specialized applications
- Consistent product performance across production runs
Technical Support
- Engineering assistance for material selection
- Custom sizing and specification development
- Application-specific testing and validation
- Installation training and documentation
Product Range
- Comprehensive size selection from 0.8mm to 150mm diameter
- Multiple material options for diverse applications
- Standard and adhesive-lined variants
- Custom colors and printing available
Frequently Asked Questions
Q: What is the main advantage of clear heat shrink tube over colored versions?
A: The primary advantage is visual inspection capability. Clear heat shrink tubes allow you to see underlying wire colors, component markings, and connection quality without removing the protective covering. This is invaluable for quality control, maintenance, and applications requiring traceability.
Q: Can clear heat shrink tubes withstand outdoor environments?
A: Yes, but material selection is crucial. Clear polyolefin and PVDF formulations with UV stabilizers can withstand outdoor exposure. However, prolonged UV exposure may gradually reduce transparency. For critical outdoor applications, UV-stabilized grades are recommended.
Q: How do I choose the correct shrink ratio for my application?
A: Select a shrink ratio where the recovered (shrunk) diameter is 20-30% smaller than your substrate. For example, a 2:1 ratio works well for consistent diameters, while 3:1 or 4:1 ratios accommodate irregular shapes or varying sizes. Higher ratios provide greater flexibility but may have thicker walls.
Q: Are clear heat shrink tubes flame retardant?
A: This depends on the material formulation. willele Electric offers flame-retardant clear polyolefin tubes that meet UL224 VW-1 and other flammability standards. Clear PVC is inherently flame retardant. Always specify flame retardancy requirements when ordering.
Q: What is the shelf life of clear heat shrink tubing?
A: When stored properly (cool, dry conditions away from direct sunlight), clear heat shrink tubes typically have a shelf life of 3-5 years. Cross-linked polyolefin and PVDF materials generally have longer shelf lives than PVC. Always check manufacturer specifications for specific products.
Q: Can clear heat shrink tubes be used in food processing or medical applications?
A: Yes, but only specific grades. For food contact, use FDA-compliant materials. For medical applications, select USP Class VI certified clear silicone or PVDF tubes. willele Electric provides certified materials with full documentation for regulated industries.
