Using Junction Boxes in Solar Panel Installations: A Complete Guide

Introduction: The Critical Role of Junction Boxes in Solar Installations

In the rapidly expanding solar energy sector, using junction boxes in solar panel installations has become a fundamental requirement for ensuring system reliability, safety, and longevity. Junction boxes serve as the critical interface between solar panels and the broader electrical system, housing essential components that protect against electrical hazards while facilitating efficient power transmission. For electrical contractors, solar installers, and procurement managers, understanding the proper selection and application of junction boxes is essential for delivering high-performance photovoltaic systems.

The global solar market continues to grow exponentially, with installations reaching new records annually. As systems become more sophisticated and performance expectations increase, the quality and reliability of every component—especially junction boxes—directly impact overall system performance. This comprehensive guide explores the technical aspects, best practices, and selection criteria for using junction boxes in solar panel installations, providing actionable insights for B2B professionals in the renewable energy sector.

What Are Solar Junction Boxes?

Solar junction boxes are weatherproof enclosures mounted on the back of photovoltaic panels or used as external connection points in solar arrays. These specialized electrical boxes serve multiple critical functions in solar installations:

Primary Functions:

• Electrical Connection Hub: Consolidates and manages electrical connections from solar cells
• Safety Protection: Houses bypass diodes that prevent hot spots and reverse current flow
• Environmental Shielding: Protects internal components from moisture, dust, and UV radiation
• Cable Management: Provides secure entry and exit points for electrical cables
• Voltage Regulation: Maintains optimal electrical flow through integrated components

Unlike standard electrical junction boxes, solar-specific models are engineered to withstand extreme environmental conditions including temperature fluctuations (-40°C to +85°C), intense UV exposure, and moisture ingress. The materials used—typically high-grade thermoplastics or aluminum—ensure dimensional stability and electrical insulation over 25+ year lifespans.

Key Components of Junction Boxes

Understanding the internal components of junction boxes is essential when using junction boxes in solar panel installations. Each element plays a specific role in system performance and safety.

Terminal Blocks

Terminal blocks provide secure connection points for positive and negative conductors. High-quality terminals feature:

• Brass or copper construction for optimal conductivity
• Spring-loaded mechanisms for vibration resistance
• Sufficient contact area to minimize resistance and heat generation
• Compatibility with various wire gauges (typically 2.5mm² to 6mm²)

Bypass Diodes

Bypass diodes are semiconductor devices that prevent power loss when individual cells or panels are shaded. Key specifications include:

• Current rating matching panel output (typically 10A to 20A)
• Low forward voltage drop (0.5V to 0.7V)
• Heat dissipation capabilities
• Reverse breakdown voltage exceeding system voltage by 25%

Cable Glands and Sealing

Cable entry points must maintain the enclosure’s IP rating while accommodating conductors. This is where heat shrink tubes become critically important:

• Environmental Sealing: Heat shrink tubes provide additional moisture barriers around cable entries
• Strain Relief: Properly applied heat shrink materials prevent cable movement and abrasion
• Insulation Enhancement: Multi-wall heat shrink tubes with adhesive liners create waterproof seals
• UV Protection: Specialized heat shrink formulations resist degradation from sunlight exposure

Potting Compounds

Many junction boxes utilize silicone or polyurethane potting compounds to encapsulate internal components, providing:

• Complete moisture exclusion
• Mechanical protection against vibration
• Thermal management through heat dissipation
• Enhanced dielectric strength

Types of Junction Boxes for Solar Installations

Selecting the appropriate junction box type is crucial when using junction boxes in solar panel installations. Different applications require specific designs and features.

Standard Potted Junction Boxes

The most common type for residential and small commercial applications. These boxes come pre-assembled with bypass diodes and terminal blocks fully encapsulated in silicone potting compound. The potting provides excellent environmental protection and eliminates most field assembly errors.

Smart Junction Boxes

Increasingly popular in commercial installations, smart junction boxes incorporate monitoring electronics that provide:

• Real-time performance data for each panel
• Early fault detection capabilities
• Temperature monitoring
• Communication via PLC or wireless protocols

Industrial High-Current Models

Designed for utility-scale installations, these robust units handle higher currents (20A to 40A per string) and feature:

• Aluminum or reinforced polycarbonate housings
• Multiple cable entry points (4 to 12 knockouts)
• Accessible terminals for field maintenance
• Enhanced thermal management systems

Technical Specifications Comparison

Installation Best Practices

Proper installation techniques are essential when using junction boxes in solar panel installations to ensure long-term reliability and safety compliance.

Pre-Installation Preparation

1. Environmental Assessment: Evaluate exposure to moisture, temperature extremes, and physical hazards
2. Cable Routing Planning: Determine optimal cable paths to minimize stress and exposure
3. Voltage Drop Calculations: Ensure wire gauge and connection integrity maintain acceptable losses (<3%)
4. Material Compatibility: Verify all components (cables, connectors, heat shrink tubes) are compatible

Installation Sequence

Step 1: Mounting Surface Preparation

• Clean and dry all mounting surfaces
• Ensure proper backing support for through-bolt installations
• Verify gasket integrity before positioning

Step 2: Cable Preparation

• Strip cables to manufacturer specifications (typically 8-12mm)
• Apply appropriate heat shrink tubes before insertion
• Use calibrated crimping tools for terminal attachments
• Implement proper heat shrink tube application with industrial heat guns

Step 3: Connection Verification

• Torque terminals to specified values (typically 1.2-1.5 N⋅m)
• Verify polarity using multimeters before energization
• Check bypass diode orientation and function
• Test continuity through all connection points

Step 4: Sealing and Protection

• Apply heat shrink tubes to all cable entry points
• Verify gasket positioning and compression
• Secure all cable glands to specified torque values
• Apply UV-resistant cable ties for strain relief

Heat Shrink Tube Application Critical Points

When using junction boxes in solar panel installations, proper heat shrink tube application is essential:

• Selection: Use adhesive-lined, dual-wall heat shrink tubes rated for outdoor UV exposure
• Sizing: Choose shrink ratio appropriate for cable diameter (typically 3:1 or 4:1)
• Application Temperature: Apply even heat (recommended 120-150°C) for complete adhesive activation
• Cooling: Allow adequate cooling time before subjecting connections to stress
• Quality Control: Inspect for complete shrinkage, adhesive flow-out, and absence of air pockets

Selection Criteria for Procurement

B2B procurement managers should evaluate junction boxes using systematic criteria to ensure optimal performance and value.

Technical Requirements Checklist

Cost-Benefit Analysis Factors

When evaluating suppliers and products:

• Initial Cost vs. Lifecycle Value: Premium junction boxes may cost 2-3x more initially but reduce failure rates by 80%
• Warranty Coverage: Extended warranties (10-25 years) indicate manufacturer confidence
• Replacement Parts Availability: Long-term component availability for maintenance
• Technical Support: Responsive engineering support for custom applications
• Volume Discounts: Bulk pricing for large-scale projects
• Heat Shrink Tube Integration: Suppliers offering complete connection solutions reduce procurement complexity

Supplier Qualification

For B2B relationships, evaluate potential suppliers on:

• Manufacturing certifications (ISO 9001, ISO 14001)
• Product testing documentation and validation reports
• Lead times and inventory management capabilities
• Technical documentation quality (CAD models, installation guides)
• After-sales support and RMA processes

Common Issues and Troubleshooting

Understanding potential problems when using junction boxes in solar panel installations enables proactive prevention and rapid resolution.

Moisture Ingress

Symptoms: Corrosion on terminals, diode failure, ground faults
Causes:

• Inadequate cable gland sealing
• Gasket degradation over time
• Poor heat shrink tube application
• Thermal cycling causing seal fatigue

Solutions:

• Implement double-seal strategy with heat shrink tubes and cable glands
• Use marine-grade potting compounds in high-humidity environments
• Schedule periodic inspections (annually in harsh environments)
• Replace gaskets during maintenance intervals

Bypass Diode Failure

Symptoms: Hot spots on panels, reduced string voltage, thermal camera anomalies
Causes:

• Undersized diodes for actual current
• Inadequate heat dissipation
• Manufacturing defects
• Lightning surge damage

Solutions:

• Specify diodes rated 25% above maximum expected current
• Ensure proper thermal management in junction box design
• Install surge protection devices at string and system levels
• Implement thermal monitoring for early detection

Terminal Connection Degradation

Symptoms: Increased resistance, localized heating, voltage drop
Causes:

• Improper torque during installation
• Dissimilar metal corrosion
• Vibration-induced loosening
• Thermal expansion cycling

Solutions:

• Use calibrated torque tools during installation
• Apply anti-corrosion compounds on connections
• Implement spring-loaded terminals for vibration resistance
• Schedule connection re-torquing during first-year maintenance

Heat Shrink Tube Failures

Symptoms: Moisture entry at cable points, insulation breakdown, visible degradation
Prevention:

• Specify UV-resistant, adhesive-lined heat shrink tubes
• Ensure complete adhesive activation during application
• Overlap shrink tubes with cable jacket by minimum 15mm
• Use heat shrink tubes with appropriate shrink temperature for materials

Why Choose willele Electric for Your Junction Box Needs

willele Electric has established itself as a trusted B2B partner for electrical components in solar installations, with particular expertise in heat shrink tube technology that directly enhances junction box performance and reliability.

Specialized Heat Shrink Solutions

As specialists in heat shrink tube manufacturing, willele offers comprehensive solutions specifically engineered for solar junction box applications:

• Solar-Grade Heat Shrink Tubes: UV-resistant formulations that maintain properties over 25+ years
• Dual-Wall Adhesive-Lined Products: Superior moisture barriers for cable entry sealing
• Custom Sizing Options: Precise dimensions matching common solar cable gauges (2.5mm² to 6mm²)
• Color-Coded Systems: Simplify installation and maintenance with clearly marked positive/negative indicators
• Bulk Supply Programs: Volume pricing and inventory management for large-scale projects

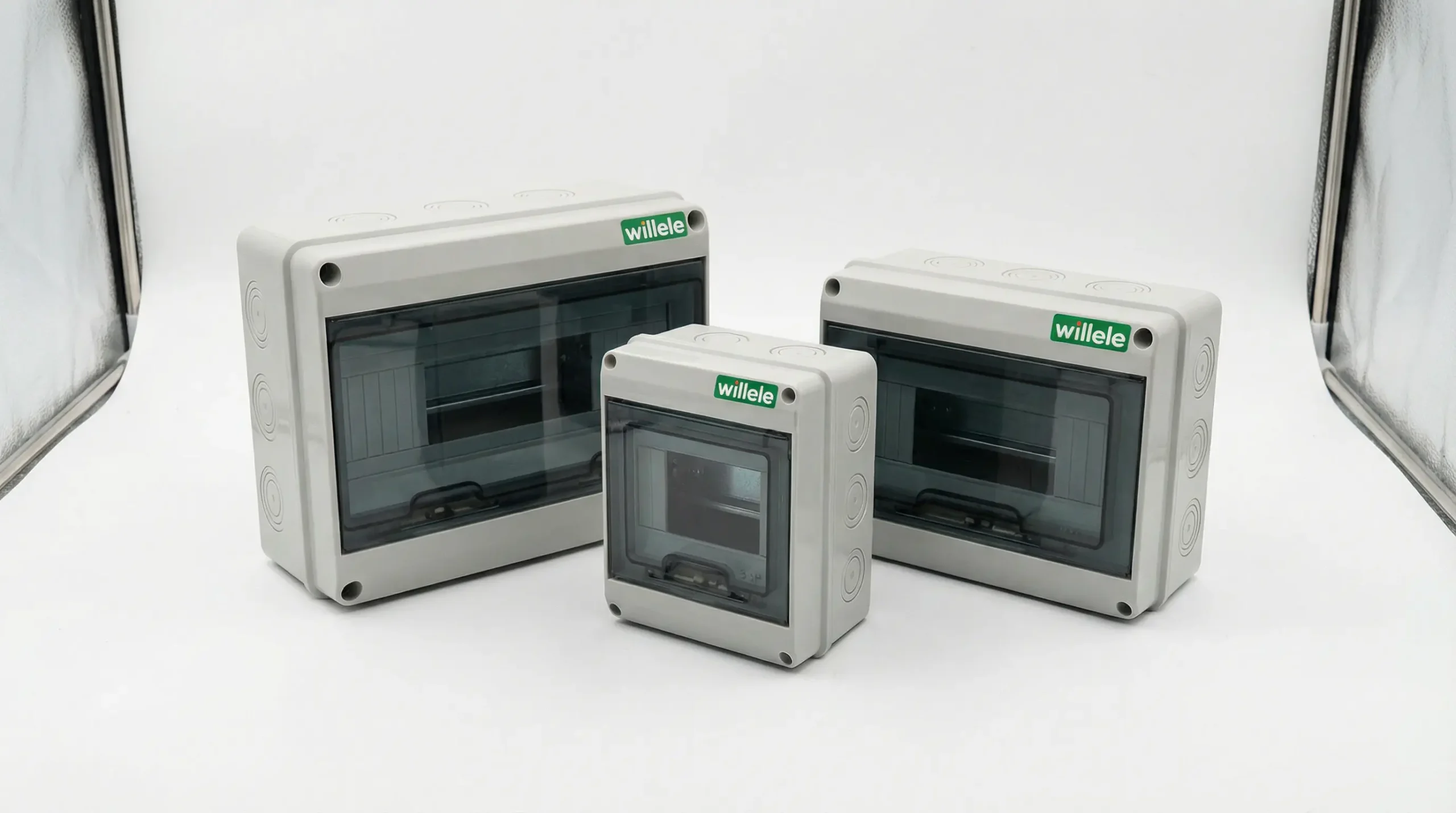

Comprehensive Product Range

Beyond heat shrink tubes, willele provides complete electrical connection solutions:

• High-quality junction boxes compatible with major panel manufacturers
• Cable glands and sealing systems designed for harsh environments
• Terminal blocks and connection hardware
• Potting compounds and protective coatings
• Complete installation kits with all necessary components

Technical Support and Partnership

willele differentiates itself through comprehensive B2B support:

• Engineering Consultation: Application-specific product recommendations
• Custom Solutions: Modified products for unique project requirements
• Documentation: Detailed technical specifications and installation guidelines
• Training Programs: On-site or virtual training for installation teams
• Quality Assurance: Rigorous testing protocols and certification documentation

Global Supply Chain Reliability

For international B2B clients, willele offers:

• Consistent product availability and short lead times
• Flexible minimum order quantities for project-based procurement
• International shipping logistics support
• Multi-language technical documentation
• Responsive customer service across time zones

Short FAQ Section

Q1: What IP rating should I specify for solar junction boxes in coastal environments?
A: For coastal installations, specify IP68-rated junction boxes minimum. These provide superior protection against salt spray and humidity. Additionally, use adhesive-lined heat shrink tubes at all cable entry points and consider aluminum housings with conformal coatings for maximum corrosion resistance. Schedule annual inspections to verify seal integrity.

Q2: How many bypass diodes are required in a typical solar junction box?
A: Standard solar panels use three bypass diodes, corresponding to three cell strings within the panel. Each diode protects approximately 20-24 cells. High-efficiency or bifacial panels may incorporate more diodes for finer granularity. Always verify diode count matches the panel manufacturer’s specifications to ensure proper shading protection.

Q3: What wire gauge should be used with junction boxes for residential installations?
A: For residential systems (typically 300-400W panels), use 10 AWG (6mm²) conductors minimum. This provides adequate current capacity with minimal voltage drop. The junction box terminals must accommodate this gauge, and heat shrink tubes should be sized accordingly (typically 3:1 shrink ratio). For string voltages above 600V, consider larger gauges to enhance safety margins.

Q4: How often should junction boxes be inspected in solar installations?
A: Implement a tiered inspection schedule: first inspection at 6 months post-installation, then annually for the first 5 years. After year 5, biennial inspections suffice for quality installations in moderate climates. Harsh environments (coastal, desert, extreme temperature zones) require annual inspections throughout system life. Thermal imaging is highly effective for non-invasive junction box assessment.

Q5: Can junction boxes be retrofitted or upgraded on existing solar panels?
A: Yes, junction boxes can be retrofitted, though this requires careful planning. Ensure new boxes match the panel’s electrical specifications (voltage, current, diode requirements). The retrofit process involves removing old potting compounds, preparing surfaces, and applying new sealing materials. Professional installation is strongly recommended, particularly for proper heat shrink tube application at cable connections. Always verify warranty implications before modifications.

Q6: What is the typical lifespan of heat shrink tubes in solar junction box applications?
A: Quality UV-resistant heat shrink tubes designed for solar applications typically maintain performance for 25+ years when properly selected and installed. Key factors include material formulation (cross-linked polyolefin with UV stabilizers), proper sizing and installation technique, and adhesive-lined construction for moisture sealing. Regular visual inspections can identify early degradation, though properly installed heat shrink tubes from specialized manufacturers like willele rarely require replacement during panel lifetime.

Using junction boxes in solar panel installations requires careful attention to component selection, installation techniques, and long-term maintenance planning. By understanding the technical requirements, implementing best practices, and partnering with specialized suppliers like willele Electric for critical components such as heat shrink tubes and connection materials, B2B professionals can ensure reliable, high-performance solar installations that deliver optimal returns over their 25+ year operational lifespans. For procurement managers and installation contractors, investing in quality junction boxes and proper installation techniques significantly reduces lifecycle costs while maximizing system performance and safety compliance.
