Why You Need Flame Retardant Heat Shrink Tubing: Safety, Compliance & Applications

In modern electrical, mechanical, and aerospace engineering, heat shrink tubing (HST) is a foundational component. But when safety is critical, standard HST isn’t enough—flame retardant (FR) heat shrink tubing becomes a non-negotiable choice. This blog breaks down why FR HST is essential, how it works, global compliance standards, mandatory application areas, and tips for selection—helping engineers, procurement teams, and industry professionals make informed decisions for safety-critical systems.

I. Introduction: The Safety Role of Heat Shrink Tubing

Before diving into flame retardancy, let’s first understand the core value of standard HST and what makes FR variants indispensable in high-risk environments.

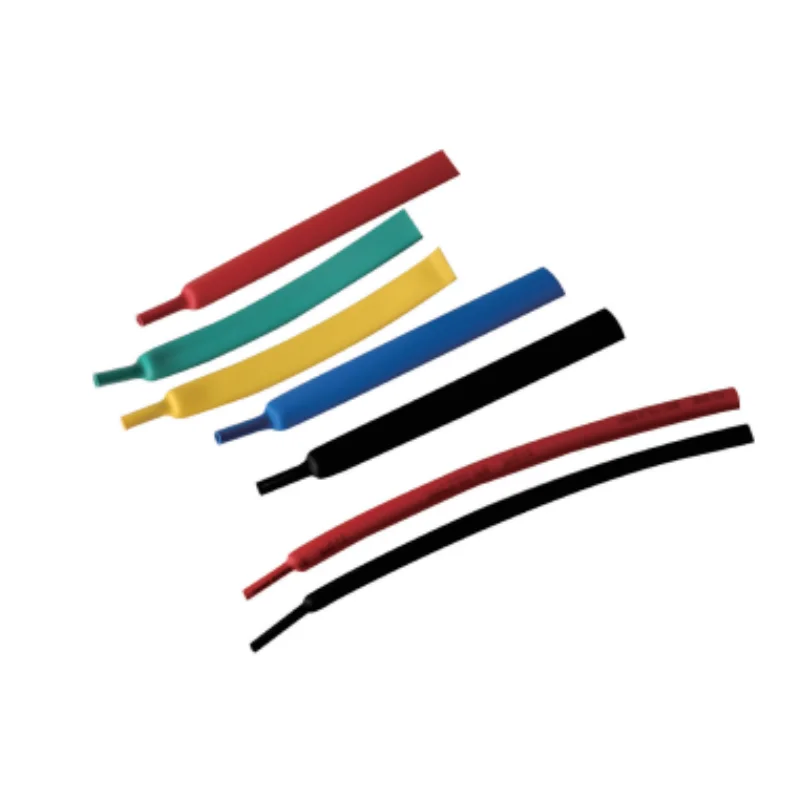

A. What Standard Heat Shrink Tubing Does

Standard HST is a workhorse across industries, thanks to its versatility and ease of use. Its benefits fall into two key categories:

• Electrical Protection: It provides superior insulation with high dielectric strength, containing electrical currents to prevent shorts, shocks, and fires. This is critical for wires, splices, and connectors in any electrical system.
• Mechanical Protection: Acting as a robust barrier, it shields against abrasion, low impacts, cut-through, and sharp edges. It also relieves strain on connections (from tension or bending) to extend wiring lifespan and forms a tight seal against contaminants like water, dust, chemicals, and oils.
• Additional Uses: Beyond protection, it organizes complex wire harnesses via color-coding and bundling. Most standard polyolefin HST performs reliably from -55°C to 135°C (with specialized options for higher temps).

B. What Flame Retardancy Means (And Why It’s Different From Flame Resistance)

Not all “fire-safe” materials are the same—understanding the difference between flame retardant and flame resistant is key:

• Flame Resistant Materials: Engineered to resist ignition entirely, tested to standards like ASTM D6413 (textiles) or ISO 15025 (personal protective equipment).
• Flame Retardant Materials: Governed by standards like UL 94, these polymeric compounds delay ignition and suppress flame spread. They may catch fire briefly but self-extinguish quickly once the ignition source is removed.

For safety-critical systems, FR HST transforms from a “passive shield” to an “active firebreak.” Standard HST protects against daily wear, but if an electrical fault occurs, its polymeric material can become fuel. FR HST stops flames from spreading along cables, preventing localized issues from turning into catastrophic system failures.

Note: While most commercial polyolefin HST is labeled “flame retardant,” this is for general use. High-consequence applications (aerospace, defense, heavy industry) require certified ratings (e.g., UL 94 V-0, VW-1) to ensure reliability under extreme heat.

II. Risk Mitigation: Why Non-FR Materials Are a Hazard

The case for FR HST starts with understanding the dangers of electrical faults and how non-rated materials amplify risks.

A. Electrical Faults Generate Extreme Heat

Electrical systems are prone to faults that create catastrophic localized heat:

• Arc Faults: Caused by damaged wires, loose connections, or degraded insulation, arcing occurs when electricity bridges small gaps (e.g., from rusty wiring). This produces temperatures ranging from 5,000°C to 10,000°C—hot enough to instantly destroy insulation and ignite nearby materials (cable jacketing, sleeves).
• Insulation Failure: Arcing breaks down wire insulation further, triggering electrical fires that cause a large share of residential and industrial structural fires. Without self-extinguishing protection, a small fault can quickly escalate into a widespread blaze.

B. Non-FR Materials Fuel Fires

Non-flame retardant polymers (e.g., standard polyethylene, PE) have a dangerous combustion profile:

• When ignited, PE burns like a candle—sustaining a stable flame and “wicking” fire along wire bundles. This turns the protective sleeve into a continuous fuel source.
• FR HST interrupts this cycle. For example, UL 94 V-0 requires flames to stop within 10 seconds of removing the ignition source—an impossible feat for non-rated materials.

Military specs highlight this risk: AMS-DTL-23053/5 Class 2 tubing is explicitly non-flame retarded, with documentation warning it “will burn readily” and “shall not be used when flame resistance is required.” Using generic “FR” labels without verifying ratings introduces hidden vulnerabilities in mission-critical systems.

C. High-Density Environments Worsen Consequences

In spaces like data centers, switchgear cabinets, or aircraft bays, component density amplifies fire risks:

• Data Centers: These facilities have massive cabling and fire load. Electrical failures, overheating servers, or faulty installations cause fires—and the average outage from a major fire costs over $8 million (downtime, recovery, reputation damage).
• Total Cost of Ownership (TCO): Non-FR materials are cheaper upfront, but FR HST (often with adhesive linings for sealing) reduces long-term costs by protecting against wear, lowering repair/replacement needs, and preventing catastrophic outages.

III. How FR HST Works: Materials Science Behind Fire Suppression

FR HST relies on specialized chemistry to stop flames. The base material is radiation cross-linked polyolefin (XLPO), enhanced with flame-retardant additives that interfere with combustion.

A. The XLPO Base

Polyolefin is the top choice for HST because of its thermal resistance, flexibility, and high dielectric strength. Radiation cross-linking boosts its mechanical and thermal stability—critical for high-performance industries (electronics, telecom, automotive, aerospace).

B. 3 Key Flame Retardant Mechanisms

FR additives work in two phases: gas (interrupting flame chemistry) or condensed (forming a protective barrier). Here are the most common systems:

1. Halogenated Systems (Traditional)

• How They Work: Compounds like decabromodiphenyl ether (DBDPE) release halogen radicals during combustion. These radicals “scavenge” high-energy free radicals (e.g., hydroxyl, hydrogen) that sustain flames, quenching the fire.
• Drawbacks: They release toxic, corrosive hydrogen halide gases (HCl, HBr) and dense smoke—creating secondary hazards (respiratory damage, reduced visibility) in confined spaces.

2. Phosphorus-Based Systems

• How They Work: Compounds like red phosphorus or ammonium polyphosphate (APP) act in the condensed phase. When heated, they break down into phosphoric acid, which promotes a dense, protective char layer on the polymer surface.
• Benefits: The char isolates the underlying fuel from oxygen and heat, reducing flammability without toxic gas release.

3. Metal Hydroxides (Halogen-Free, Low Smoke)

• How They Work: Aluminum hydroxide (ATH) and magnesium hydroxide (MH) use endothermic cooling. At high temperatures, they decompose, releasing water vapor and absorbing massive thermal energy—cooling the combustion zone below the ignition threshold.
• Trade-Offs: To meet strict ratings, large amounts of these fillers are needed, making Low Smoke Zero Halogen (LSZH) tubing more rigid than halogenated variants. This rigidity must be considered during wiring harness design.
• Why It Matters: LSZH aligns with environmental standards (RoHS) and reduces long-term environmental impact, making it the preferred choice for modern safety-critical systems.

IV. LSZH HST: Beyond Flame Retardancy to Secondary Hazard Mitigation

Flame retardancy stops fire spread—but LSZH HST addresses the #1 cause of fire fatalities: smoke and toxic gas.

A. LSZH Reduces Smoke and Toxicity

Traditional halogenated materials are dangerous in confined spaces (transit tunnels, data centers, aircraft):

• Smoke: They release thick black smoke that blocks over 70% of light, reducing visibility to <5 meters—hindering escape and rescue.
• Toxicity: Hydrogen halide gas concentrations exceed 3,000 ppm, causing permanent respiratory damage.

LSZH HST solves this:

• Low Smoke: Smoke light transmittance exceeds 60–80%, maintaining visibility during fires.
• Low Toxicity: Toxic gas concentrations stay below 50 ppm, minimizing health risks.

B. LSZH Protects Infrastructure From Corrosion

Halogenated materials create another hidden risk: corrosive acid. When they burn, hydrogen halide gas reacts with moisture (humidity, firefighting water) to form strong acids (e.g., hydrochloric acid). This acid corrodes:

• Sensitive electronics (circuit boards, connectors)
• Metal cabinets and switchgear
• Structural components

In data centers and power stations, acid corrosion damage often “exceeds direct fire damage”—causing systemic failure long after the fire is out. LSZH HST (with bromine/chlorine content <900 ppm) eliminates this threat, protecting high-value assets.

C. LSZH Compliance Standards

LSZH efficacy is verified by global tests:

• IEC 60754 (Halogen Emission): Measures halogen acid gas release. Certified LSZH materials have total halogen content <0.5% and post-combustion halogenated hydrogen gas release <5 mg/g.
• IEC 61034 (Smoke Density): Tests smoke light transmittance. LSZH products must maintain ≥60% transmittance during combustion to ensure visibility.

V. Global Compliance Standards for FR HST

Choosing FR HST means navigating material-specific and application-specific standards. Here are the most critical ones:

A. UL Standards (North America)

UL sets benchmarks for component safety:

1. UL 94 Vertical Test: Ranks plastics by post-ignition behavior. The V-0 rating (highest for components) requires:
   • Flames stop within 10 seconds of removing the ignition source.
   • Total flaming time for 5 samples ≤50 seconds.
2. UL 224 VW-1 Flame Test: Superior for wire insulation/tubing. It simulates real-world faults with 5 cycles of 15-second flame application (interspersed with cooling). This validates the tubing’s ability to resist repeated thermal shock and self-extinguish—critical for wiring systems.

B. Military/Aerospace Standard: SAE AMS-DTL-23053

Derived from U.S. military specs, this standard governs HST for high-reliability systems (aerospace, defense). The sub-spec AMS-DTL-23053/5 defines requirements for cross-linked polyolefin HST, with key classes:

• Class 2: Non-flame retarded, “burns readily”—only for general use (e.g., color-coding) where flame safety isn’t needed.
• Class 1/3: Flame-retarded—mandatory for military/aerospace applications.

Critical Note: Ordering only by “AMS-DTL-23053/5” (without specifying Class 1/3) risks receiving Class 2 tubing—creating fire hazards in mission-critical systems (e.g., aircraft wiring).

C. Global Flammability Ratings Comparison

Use this table to compare key standards for electrical insulation and safety:

Repair Best Practice: When fixing damaged insulation (e.g., nicked jackets), use FR tubing (e.g., VW-1 rated) that matches or exceeds the original wire’s ratings (e.g., temperature, voltage). This prevents repairs from becoming fire points.

VI. Where FR and LSZH HST Are Mandatory

FR and LSZH requirements depend on the environment’s risk profile. Here are the key sectors where they’re non-negotiable:

A. Mass Transit and Rail Systems

Confined spaces (trains, subways, tunnels) make smoke/toxicity deadly. Regulations mandate LSZH:

• Europe: EN45545-2 (stringent fire safety for railways).
• North America: NFPA 130 (fixed guideway transit systems).LSZH HST minimizes toxic fumes and maintains visibility, enabling safe evacuation in restricted corridors.

B. Data Centers and Telecommunications

Data centers prioritize asset protection and uptime:

• Electrical failures are a top fire cause, and halogenated acid corrosion often costs more than the fire itself.
• LSZH HST (thick-wall, zero-halogen variants) is used for cable jointing, protection, and rejacketing. Global codes like GB 50217 mandate LSZH for central offices and high-cabling facilities.

C. Aerospace and Military Defense

These sectors demand materials that survive extreme conditions (vibration, temperature swings, fluids) while meeting FR standards:

• Baseline compliance: SAE AMS-DTL-23053 (Class 1/3 for FR).
• Specialized materials: Cross-linked Tefzel™ (ETFE) or polyalkene for high temps (≥200°C).
• FR ratings must align with dielectric strength and fluid resistance requirements to ensure system resilience.

D. Medical Devices

Medical applications require FR HST that’s safe for human contact:

• Uses include insulation for electrosurgical devices and needle covers for electrical stimulation.
• Materials: Halogen-free, medical-grade cross-linked polyolefin (meets skin-safety standards).
• Additional compliance: FDA Title 21 CFR 177 (for food/beverage contact), UL 94 (FR), and RoHS/REACH (environmental safety).

VII. How to Select and Implement FR HST

Follow these guidelines to choose the right FR HST for your application:

A. Material Specification Checklist

1. Prioritize LSZH for Critical Spaces: Mandate LSZH (meeting IEC 60754/61034) in confined, high-traffic, or high-density areas (transit, data centers, hospitals) to protect lives and assets.
2. Verify Exact Flammability Ratings: Reject generic “flame retardant” labels. For electrical systems, specify UL 224 VW-1 (superior to UL 94 V-0 for wiring).
3. Mandate FR Classes in Specs: For AMS-DTL-23053/5, explicitly require Class 1 or 3 to avoid non-FR Class 2 substitutions.
4. Account for Mechanical Trade-Offs: LSZH tubing is more rigid (due to metal hydroxide fillers). Design wire harnesses with this in mind (e.g., for tight bends).
5. Use Adhesive-Lined Tubing: For moisture/corrosion protection (e.g., cable splices, battery cables), choose medium-wall XLPO FR tubing with heat-activated sealants.

B. TCO: Why FR HST Is a Worthwhile Investment

While FR/LSZH HST has a higher upfront cost, it reduces long-term risks:

• Downtime Mitigation: Prevents small faults from becoming major fires—saving millions in outage costs (e.g., data centers).
• Asset Longevity: LSZH protects electronics from acid corrosion, lowering replacement costs.
• Compliance & Liability: Meets global codes (UL 224, EN45545-2) to avoid regulatory penalties, insurance issues, and legal exposure from fires.

Final Thoughts

Flame retardant heat shrink tubing isn’t an optional upgrade—it’s a foundational safety requirement for critical systems. By understanding its role in risk mitigation, compliance standards, and application-specific needs, you can protect your infrastructure, reduce costs, and ensure the safety of people and assets. For more insights on industrial safety components, explore our blog or contact our team for personalized guidance.
