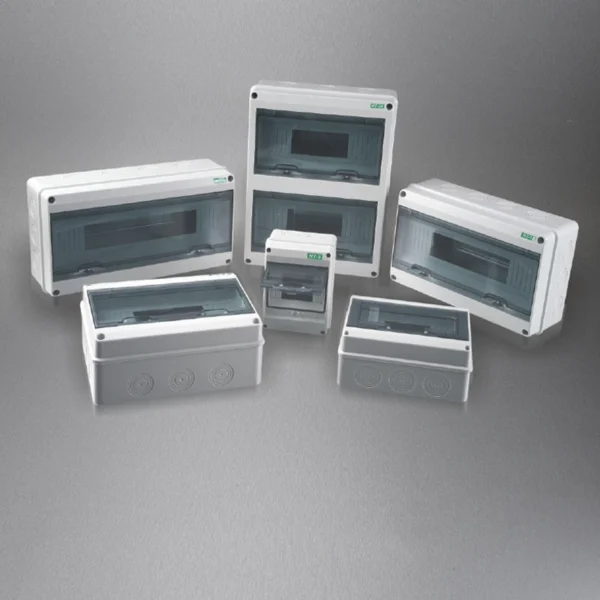

ABS Surface Distribution Box — WHT Series (IP65)

ABS surface distribution box with transparent PC door for quick inspection.
IP65 waterproof & dustproof, ideal for lighting, control, and automation circuits.
Equipped with DIN rail for MCBs or RCBOs, plus knock-out cable entry ports.
CE & RoHS certified enclosure, durable for both indoor and sheltered outdoor use.

Overview

The ABS surface distribution box WHT Series combines a tough ABS housing with a clear PC transparent door for instant visual checks. A factory-fitted DIN rail accepts MCBs/RCBOs; neutral and earth bars can be added as required. Rated IP65 and certified to CE & RoHS, it suits lighting groups, pumps, HVAC, telecoms and small control circuits.

Body: ABS • Door: Polycarbonate (transparent)
Ingress protection: IP65 (with correct glands and sealing)
Mounting: Surface wall-mount via base screw holes; internal DIN rail included
Cable entry: Knock-out plates; compatible with standard cable glands

Key Features

Impact-resistant ABS enclosure with smooth finish
Clear PC door for quick status checks without opening
Ready-to-wire: pre-installed DIN rail; space for N/E bars
IP65 sealing when used with suitable cable glands
CE & RoHS compliant materials and construction

Models & Dimensions

Model	Ways	L × W × H (mm)	G. Weight (kg)	N. Weight (kg)	Qty/Carton	Carton Size (cm)	IP
WHT 5WAYS	5	115 × 150 × 90	13.0	11.9	40	49 × 33 × 48	IP65
WHT 8WAYS	8	197 × 150 × 90	14.2	13.2	30	48 × 41.5 × 48.5	IP65
WHT 12WAYS	12	250 × 193 × 105	16.3	15.3	20	52.5 × 40.5 × 57	IP65
WHT 15WAYS	15	305 × 195 × 105	18.5	17.5	20	63 × 40.5 × 57	IP65
WHT 18WAYS	18	360 × 198 × 105	20.4	19.4	20	74 × 40.5 × 57	IP65
WHT 24WAYS	24	270 × 350 × 105	14.6	13.6	10	56.5 × 36.5 × 56.5	IP65
