Copper Tube Terminals — DT-2 Series
Heavy-duty copper tube terminals with rigid two-bolt mounting for anti-rotation and firm contact.
Tin-plated copper barrel ensures low resistance and corrosion protection.
Full coverage from DT-2-10 to DT-2-400 with complete D/d/L/W metrics for precise die matching.
Reliable choice for switchgear, control panels, battery and general power-distribution terminations.
Overview — Copper Tube Terminals

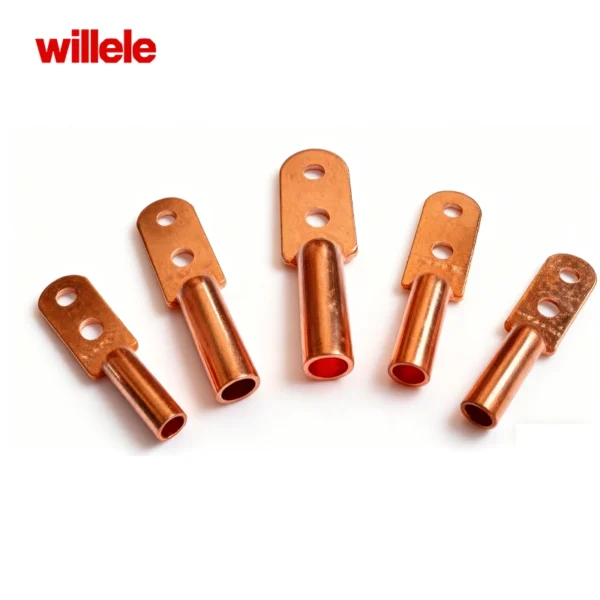

The DT-2 Series are heavy-duty copper tube terminals using a two-bolt palm to
provide anti-rotation stability and enlarged contact area on busbars and panels. The tin-plated copper barrel
delivers low contact resistance and dependable performance in industrial power-cable terminations.
Material: Tinned Copper |
Structure: Two-bolt palm |
Crimp Profiles: Hex / Indent / Compression |
Range: DT-2-10 ~ DT-2-400
Applications
- Battery and DC power distribution
- Switchgear, control panels, UPS cabinets and busbar terminations
- Industrial installations requiring secure two-bolt mounting of copper tube terminals
Complete Size Table

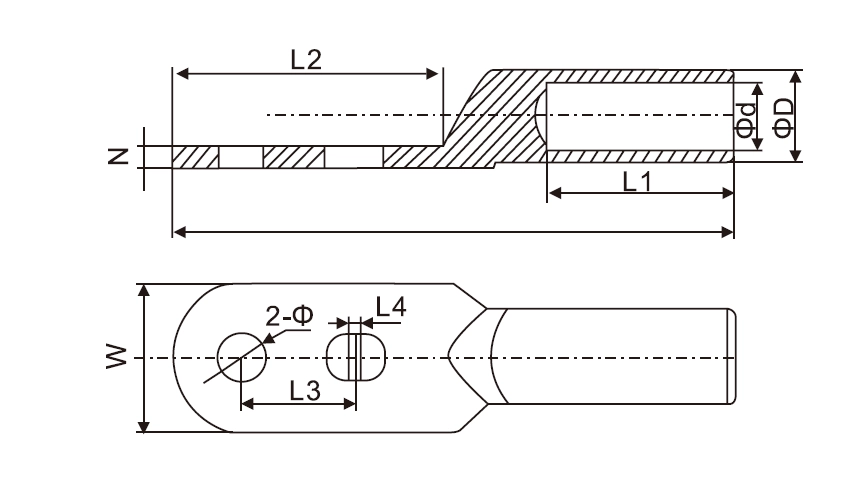

Use this chart to select the correct terminal and matching crimp die; dimensions are listed as D / d / L / W.
| Type | ΦD +0.3 (mm) | Φd +0.3 (mm) | 2×Φ (mm) | L ±1.5 (mm) | W (mm) | L1 ±1 (mm) | L3 (mm) | N +0.3 (mm) | L2 ±1 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| DT-2-10 | 10 | 5.5 | 8.5 | 85 | 18 | 30 | 20 | 2.4 | 42 |
| DT-2-16 | 10 | 6.5 | 8.5 | 85 | 18 | 30 | 20 | 2.4 | 42 |
| DT-2-25 | 11 | 7.5 | 10.5 | 95 | 20 | 34 | 20 | 2.4 | 45 |
| DT-2-35 | 12 | 8.5 | 10.5 | 100 | 20 | 36 | 20 | 2.7 | 47 |
| DT-2-50 | 14 | 9.7 | 10.5 | 105 | 23 | 40 | 20 | 3.0 | 50 |
| DT-2-70 | 16 | 11.5 | 12.5 | 118 | 26 | 45 | 25 | 3.5 | 57 |
| DT-2-95 | 18 | 13.5 | 12.5 | 125 | 28 | 48 | 25 | 3.8 | 60 |
| DT-2-120 | 20 | 15.5 | 13.5 | 132 | 30 | 50 | 30 | 4.2 | 65 |
| DT-2-150 | 22 | 16.5 | 14.5 | 142 | 34 | 55 | 35 | 5.0 | 68 |
| DT-2-185 | 25 | 18.5 | 14.5 | 157 | 37 | 58 | 35 | 5.5 | 76 |
| DT-2-240 | 27 | 21 | 14.5 | 160 | 40 | 60 | 35 | 6.2 | 78 |
| DT-2-300 | 30 | 23.5 | 16.5 | 176 | 45 | 65 | 40 | 7.2 | 82 |
| DT-2-400 | 34 | 26 | 16.5 | 180 | 50 | 70 | 40 | 7.6 | 82 |
* Dimensions are typical DT-2 datasheet values. Verify conductor class and crimp die compatibility before installation.
Installation Notes
- Strip conductor to length and ensure full insertion before crimping.
- Crimp using the matched die (hex / indent / compression) to reach rated pull-out strength.
- Tighten both bolts to the specified torque for optimal contact and stability.
