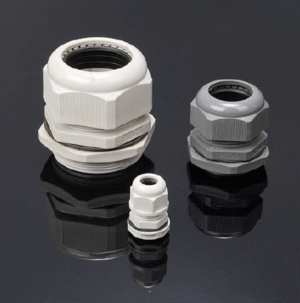

Metric Cable Gland — Nylon M Thread Waterproof Connector
UL94V-2 PA66 metric cable gland with EPDM seal, IP68 protection.
Full M-thread range from M12×1.5 to M144×2, plus long-thread options.
Fast assembly, wide clamping range, reliable strain relief
Overview

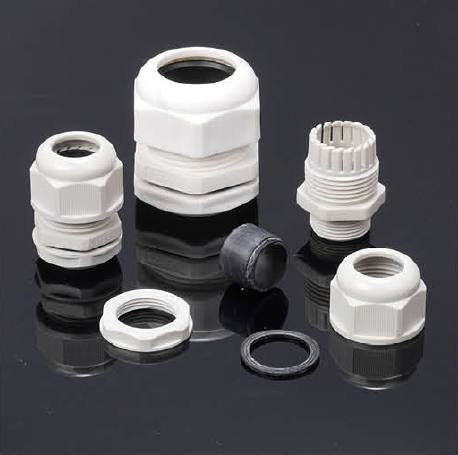

Metric cable glands (M thread) provide sealed, strain-relieved entries for cables passing through enclosure walls. The UL94V-2 PA66 nylon body with EPDM sealing ring achieves IP68 waterproof performance and resists oils, salts and common solvents. This page covers the complete standard and long-thread ranges.
Key Features
- Thread: ISO metric (M) thread.
- Material: PA66 nylon body (UL94V-2) with EPDM sealing ring and grommet.
- Protection: IP68 when correctly assembled and tightened.
- Temperature: −40 °C to +100 °C continuous, up to +120 °C short term.
- Quick assembly; wide clamping range for dependable strain relief.
- Colors: light grey (RAL7035) or black (RAL9005); other colors on request.
Technical Information
- Applications: control panels, junction boxes, automation equipment and outdoor lighting.
- Chemical resistance: salt, weak acid/alkali, alcohol, oil and common solvents.
- Standards: body flame class UL94V-2; sealing with EPDM for durable IP68 performance.
Specifications — Standard Thread

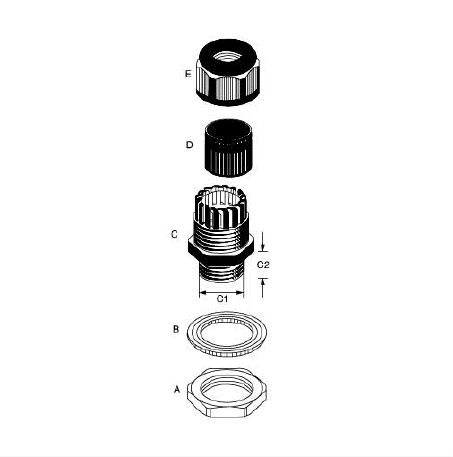

| Model | Applicable Cable (Conventional mm) | Applicable Cable (Thick mm) | Thread Dia C1 (mm) | Thread Length C2 (mm) | Wrench Dia (mm) |
|---|---|---|---|---|---|
| M12×1.5 | 3–6.5 | 2–5 | 12 | 8 | 16 |
| M16×1.5 | 4–8 | 2–6 | 16 | 8 | 19 |
| M18×1.5 | 5–10 | 3–7 | 18 | 8 | 22 |
| M20×1.5 | 6–12 | 5–9 | 20 | 10 | 24 |
| M22×1.5 | 10–14 | 7–12 | 22 | 10 | 27 |
| M24×1.5 | 12–16 | 10–13 | 24 | 10 | 27 |
| M25×1.5 | 13–18 | 9–16 | 27 | 10 | 33 |
| M27×1.5 | 13–18 | 9–16 | 27 | 10 | 33 |
| M30×1.5 | 16–21 | 13–18 | 30 | 11 | 35 |
| M32×1.5 | 16–21 | 13–18 | 32 | 11 | 35 |
| M36×1.5 | 18–25 | 13–20 | 36 | 12 | 42 |
| M40×1.5 | 22–32 | 20–26 | 40 | 14 | 50 |
| M50×1.5 | 32–38 | 25–31 | 50 | 14 | 60 |
| M63×1.5 | 37–44 | 29–35 | 63 | 15 | 64 |
| M71×1.5 | 42–50 | 32–40 | 71 | 28 | 81 |
| M72×2 | 42–50 | 32–40 | 72 | 30 | 81 |
| M75×2 | 45–52 | 50–60 | 75 | 30 | 85 |
| M80×2 | 52–60 | 60–70 | 82 | 30 | 90 |
| M88×2 | 60–70 | — | 88 | 30 | 90 |
| M100×2 | 80–92 | — | 100 | 30 | 110 |
| M144×2 | 80–92 | — | 114 | 30 | 110 |
Specifications — Long Thread (L)
| Model | Applicable Cable (Conventional mm) | Applicable Cable (Thick mm) | Thread Dia C1 (mm) | Thread Length C2 (mm) | Wrench Dia (mm) |
|---|---|---|---|---|---|
| M12×1.5L | 3–6.5 | 2–5 | 15 | 8 | 16 |
| M16×1.5L | 4–8 | 2–6 | 15 | 8 | 19 |
| M18×1.5L | 5–10 | 3–7 | 15 | 8 | 22 |
| M20×1.5L | 6–12 | 5–9 | 15 | 10 | 24 |
| M22×1.5L | 10–14 | 7–12 | 15 | 10 | 27 |
| M25×1.5L | 13–18 | 9–16 | 15 | 10 | 33 |
| M32×1.5L | 16–21 | 13–18 | 18 | 11 | 35 |
| M40×1.5L | 22–32 | 20–26 | 18 | 14 | 52 |
| M50×1.5L | 32–38 | 25–31 | 18 | 14 | 60 |
| M63×1.5L | 37–44 | 29–35 | 19 | 15 | 64 |
Applications
- Control panels, junction boxes and machine enclosures needing a metric cable gland.
- Outdoor lighting, signage and photovoltaic systems.
- Automation and instrumentation where sealed cable entry is required.
FAQ
How do I choose between standard and long-thread metric cable glands?
Use standard thread for typical sheet-metal or plastic walls. Choose long-thread (L) when the panel is thicker or when extra thread engagement is required with locknuts and washers.
What torque should I apply to ensure IP68 sealing?
Tighten by hand, then use a wrench until the EPDM seal is fully compressed. Do not overtighten; follow your enclosure supplier’s torque guideline to avoid cracking.
