compact splicing connector Wire Connectors
Multi-in / multi-out lever connectors for fast parallel and loop wiring
2-in/2-out (WLE-422) and 3-in/3-out (WLE-423) with tool-free operation
0.08–4.0 mm² conductors, 32 A / 400 V, 10 mm strip length
Transparent or gray shells; optional color-lever variants and carrier mount
Overview
The WILLELE WLE-422 and WLE-423 are multi-in/multi-out Lever Connector | WLE-422 (2-in/2-out) & WLE-423 (3-in/3-out) 32A connectors designed for parallel circuits, loop-through wiring, and quick distribution inside junction boxes and control panels. With tool-free levers and reusable terminations, both models accept 0.08–4.0 mm² conductors and carry series ratings of 32 A at 400 V with a standard 10 mm strip length. Choose the 2-in/2-out WLE-422 for dual-line pass-through or the 3-in/3-out WLE-423 for triple-line parallel runs. Transparent or gray shells are available; selected variants feature color levers for instant circuit identification.
Key Features
- Multi-in / multi-out: WLE-422 (two-in/two-out), WLE-423 (three-in/three-out)
- Tool-free, reusable lever mechanism for solid and stranded wires
- Conductor range: 0.08–4.0 mm²; rated 32 A / 400 V
- Consistent 10 mm strip length across the series
- Transparent or gray shells; optional color-lever variants for easy circuit tagging
- Probe test hole for quick voltage checking
- Compatible with carrier mounts for tidy panels (see accessories)
Specifications
Series Ratings
- Rated current: 32 A
- Rated voltage: 400 V
- Conductor range: 0.08–4.0 mm² (solid/stranded)
- Strip length: 10 mm
Materials & Options
- Shell colours: Transparent white / Gray
- Color-lever options (two-color / three-color) for identification
- Accessories: panel/rail carriers WLE-42 series

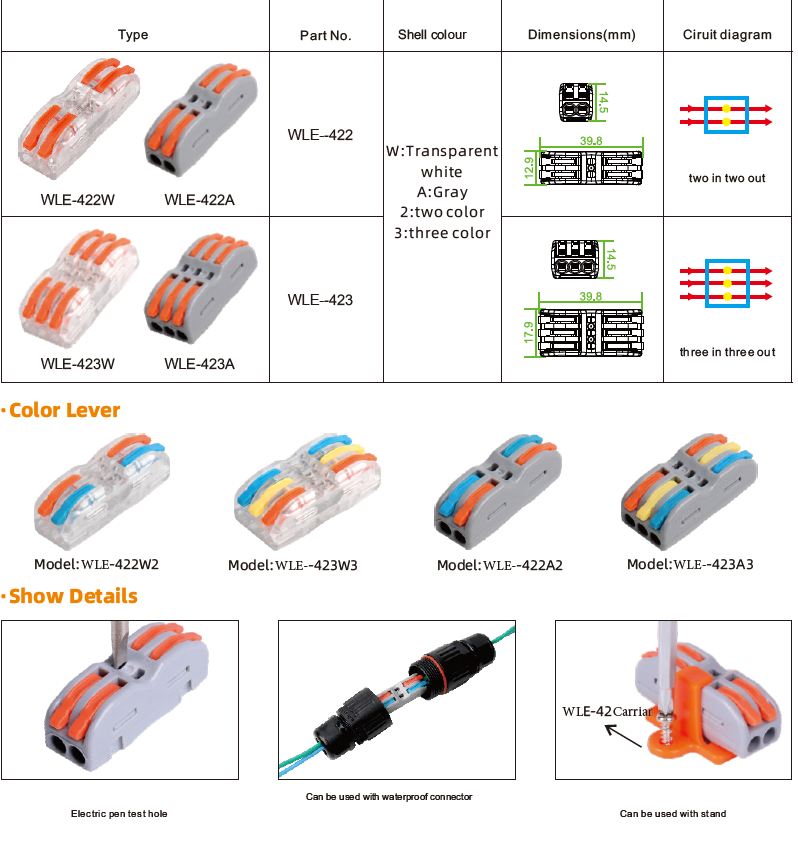

Dimensions and circuit diagrams referenced from the product datasheet. Maintain clearance and derating per local codes.
Applications
- Parallel lighting loops and through-wiring in junction boxes
- Dual/triple branch circuits in fixtures and control panels
- Inline waterproof connector assemblies for outdoor fittings (within ratings)
- Service/retrofit jobs requiring fast, reusable terminations
Why Choose WILLELE
- Purpose-built for multi-line pass-through and parallel wiring
- Clear shells and color-lever options for visual verification and tagging
- Probe test hole enables quick voltage checks during commissioning
- Carrier ecosystem (WLE-42 series) keeps panels neat and serviceable
FAQ
What is the difference between WLE-422 and WLE-423?
WLE-422 is two-in/two-out for dual-line pass-through; WLE-423 is three-in/three-out for triple-line parallel runs.
Are these connectors reusable?
Yes. Open the lever to release and re-terminate. Always isolate power before rework.
Do they support solid and stranded wires?
Both WLE-422 and WLE-423 accept solid and stranded conductors in the range 0.08–4.0 mm².
Can I use them with waterproof inline connectors?
Yes. They can be integrated inside waterproof inline housings when sized appropriately and within the electrical ratings.
Is there a test point?
A probe test hole is provided for quick voltage checks during installation and maintenance.
Specify your lever connector
Tell us the model (WLE-422 or WLE-423), quantity, and whether you need color-lever or carrier mounting.
