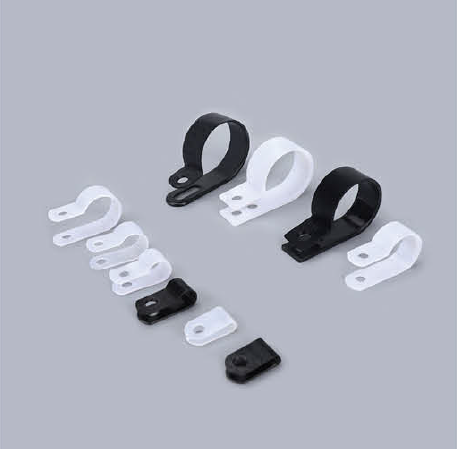

Nylon P Clamp — R-Type Cable Clamp (P-Clip)
Nylon P clamp (R-type P-clip) with screw hole for tidy, secure cable routing on panels and frames。
UL-qualified nylon 66, flame rating UL94V-2；smooth edges protect cable jackets。
Quick one-screw installation; black or natural colors optional。
Inch sizes from 1/8″ to 2-1/4″ with clear A/B/C/D/E dimensions for fast selection。
Nylon P Clamp — R-Type Cable Clamp (P-Clip)
The nylon P clamp (R-type P-clip) secures cables and hoses to panels with a single screw.
Made from UL94V-2 nylon 66, it offers a smooth, protective clamp surface and a clean installation.
Overview
This R-type cable clamp wraps the bundle and fixes through a countersunk screw hole.
It is widely used in electrical cabinets, appliances, HVAC and general machinery for neat routing.
Key Features
- Material: UL-qualified Nylon 66, flammability UL94V-2.
- One-screw mounting; rounded edges help protect cable jackets.
- Black or natural color on request.
- Inch sizes 1/8″–2-1/4″ with detailed dimensions A/B/C/D/E.

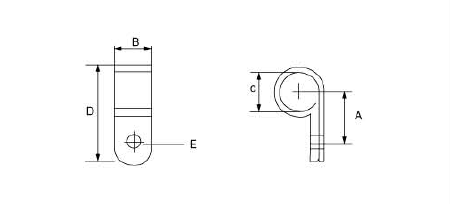

Specifications
| Item No. | Inch | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|
| UC-3.3 | 1/8″ | 9.5 | 9.6 | 3.3 | 17.0 | 4.0 |
| UC-5.2 | 3/16″ | 10.5 | 9.6 | 5.5 | 18.5 | 4.0 |
| UC-6.4 | 1/4″ | 12.0 | 9.6 | 6.35 | 21.0 | 4.0 |
| UC-8.4 | 5/16″ | 12.5 | 9.6 | 8.35 | 22.8 | 4.0 |
| UC-10.4 | 3/8″ | 13.5 | 9.6 | 10.35 | 23.8 | 4.0 |
| UC-13.2 | 1/2″ | 13.5 | 9.6 | 12.7 | 25.8 | 4.0 |
| UC-16 | 5/8″ | 16.5 | 9.6 | 15.8 | 30.5 | 4.0 |
| UC-19 | 3/4″ | 17.0 | 12.0 | 19.0 | 35.5 | 4.0 |
| UC-23 | 1″ | 26.0 | 13.0 | 23.0 | 44.0 | 4.0 |
| UC-30 | 1-1/4″ | 23.0 | 12.7 | 30.0 | 47.0 | 4.0 |
| UC-50 | 2-1/4″ | 41.0 | 12.5 | 50.0 | 77.0 | 4.0 |
FAQ
- Q: Which screw should I use?
A: Use a countersunk screw that matches the E-hole and your panel thickness; add a washer if needed. - Q: Can I get black color or flame-retardant options?
A: Yes. Standard is natural (white); black and custom grades can be supplied on request.
