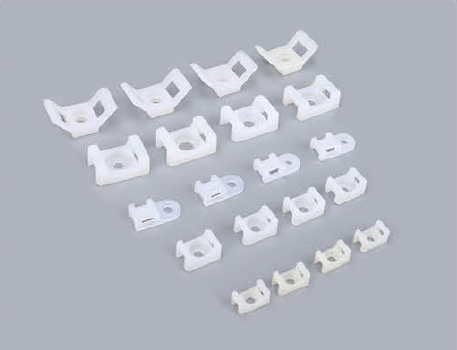

Screw Mount Cable Tie Holder — Nylon Panel Mount Tie Base
Low-profile screw mount cable tie holder for clean panel mounting with a single screw.
Nylon (PA) construction, smooth edges protect cable jackets; standard white finish.
Central screw hole locks the base; strap path aligns cable ties for consistent routing.
Models CTH-2A ~ CTH-2F with defined H/L/W/Hole Ø for fast selection.
Screw Mount Cable Tie Holder — Nylon Panel Mount Tie Base
This low-profile screw mount cable tie holder anchors to panels with a single screw.
The centered hole secures the base while the tie path keeps cable bundles aligned for neat routing.
Overview
The screw mount cable tie holder is molded from PA (nylon) in a clean white finish.
It provides a reliable seat for standard cable ties on equipment panels, control cabinets and devices
where drill-and-screw installation is preferred.
Key Features
- Material: PA (nylon), color: white.
- Centered screw hole for firm panel mounting and stable cable support.
- Guided strap path helps maintain tie orientation and protects cable jackets.
- Multiple geometries (CTH-2A ~ CTH-2F) to match different tie widths and mounting spaces.

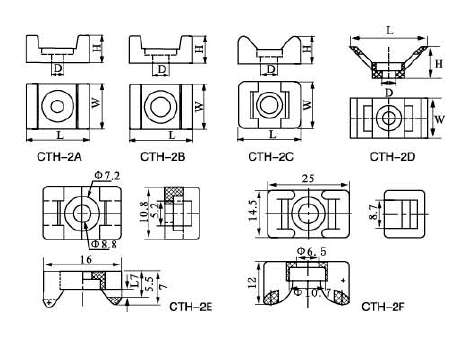

Specifications
| Item No. | H (mm) | L (mm) | W (mm) | Screw Hole Ø (mm) |
|---|---|---|---|---|
| CTH-2A | 9.5 | 22 | 16 | 4.5 |
| CTH-2B | 9.5 | 22 | 16 | 6.8 |
| CTH-2C | 9.5 | 22 | 16.5 | 5.8 |
| CTH-2D | 11.8 | 29 | 15 | 5.2 |
| CTH-2E | 7.0 | 16 | 10.8 | 3.8 |
| CTH-2F | 12 | 25 | 14.5 | 6.5 |
FAQ
- Q: Which screw size should I use?
A: Select a screw that matches the listed hole diameter (Ø) and your panel thickness; use a flat washer if required. - Q: What cable ties fit these holders?
A: Standard nylon cable ties. Choose a width that passes freely through the holder slot and suits your bundle size.
