Spiral Cable Wrap — Flexible PE Spiral Wire Organizer
Flexible Spiral Cable Wrap made of PE; bundles and protects wires while allowing branch-out anywhere.
Quick installation: cut to length, fix one end with a tie, then wind clockwise around the cable bundle.
Reusable design; when re-opened and re-wrapped the winding force remains stable.
Sizes from 3–30 mm nominal with wrapping range 1.5–150 mm; black or natural available, custom colors on request.
Spiral Cable Wrap — Flexible PE Spiral Wire Organizer
Flexible Spiral Cable Wrap made of PE for bundling, branching and abrasion protection.
Easy to cut and re-use; wind clockwise around the cable bundle for a neat harness.
Overview
The Spiral Cable Wrap is a reusable PE spiral tube that bundles multiple wires while allowing branch-outs
at any point along the run. It protects insulation from scuffing and provides a clean, organized harness for panels,
machines and IT racks.
Key Features
- Material: PE, natural (black available).
- Quick install: cut to length, fix one end with a cable tie, then wind the wrap clockwise.
- Reusable: after re-opening and re-wrapping, the winding force remains stable.
- Sizes from 3–30 mm nominal with wide wrapping ranges to suit different bundles.
How to Use
- Measure and cut the required length.
- Secure one end to the bundle with a tie, then wind clockwise until fully covered.
- To branch a wire, route it out between spirals and continue winding.

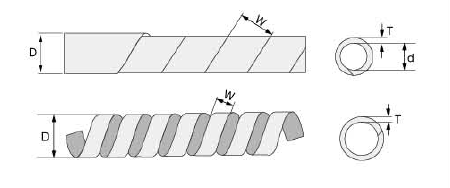

Specifications
| Item No. | d (mm) | D (mm) | W (mm) | Wrapping Range (mm) |
|---|---|---|---|---|
| SWB-03 | 1.5 | 3.0 | 4.0 | 1.5–10 |
| SWB-06 | 4.0 | 6.0 | 7.0 | 4–50 |
| SWB-08 | 6.0 | 8.0 | 10.8 | 6–60 |
| SWB-10 | 8.0 | 10.0 | 11.4 | 7.5–60 |
| SWB-12 | 9.0 | 12.0 | 14.0 | 9–65 |
| SWB-15 | 12.0 | 15.0 | 15.0 | 12–75 |
| SWB-19 | 15.0 | 19.0 | 18.0 | 15–100 |
| SWB-24 | 20.0 | 24.0 | 19.5 | 20–130 |
| SWB-30 | 26.0 | 30.0 | 23.0 | 26–150 |
FAQ
Can the Spiral Cable Wrap be reused?
Yes. It can be opened and re-wrapped; the winding force remains stable when re-used properly.
Which direction should I wind?
Wind clockwise for best grip and a neat finish.
