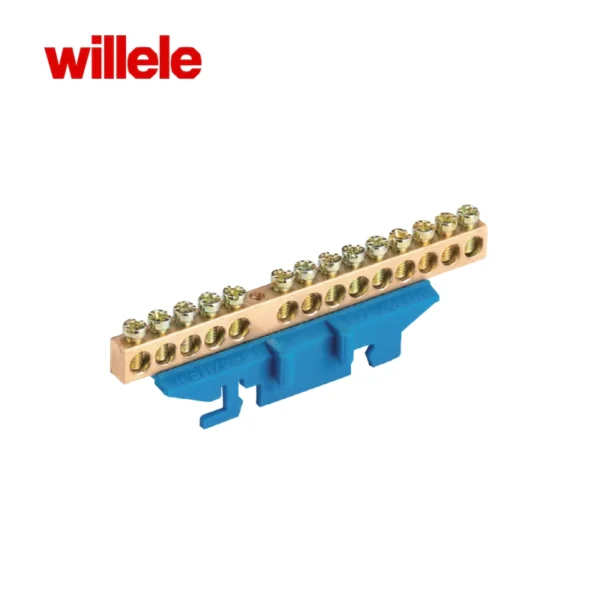

Brass Terminal Block — T010 Series
High-conductivity brass bar with reinforced nylon base.
6×9 mm bore, M4 screws, hole Ø 5.0 mm.
6–16 ways on compact 35×6 mm mount.
Clean, low-resistance wiring for panels and distribution boards.
Overview
The brass terminal block T010 pairs a precision-machined brass bar with a compact reinforced nylon base to streamline neutral and earth distribution in panels.
With a consistent 6×9 mm bore and M4 screws across the range, brass terminal block T010 provides low contact resistance, stable torque, and tidy routing on a 35×6 mm footprint.
From 6 to 16 ways, the brass terminal block T010 fits consumer units, commercial boards, and OEM control cabinets where reliable consolidation and easy inspection are required.
Key Features
- Solid brass conductor bar for high conductivity and durability.
- Compact nylon base with 35×6 mm installation pattern; Ø5.0 mm hole.
- Uniform spec: 6×9 mm bores with M4 terminal screws.
- Available in 6, 7, 8, 10, 12, 14, and 16 ways.
- Use as neutral (N) link or earth (PE) bar; quick periodic re-torque.
Specifications
| Article No. | Ways | Spec (mm) | L1 (mm) | L2 Installation (mm) | Screw | Ø (mm) | Remark |
|---|---|---|---|---|---|---|---|
| T010-0609/6 | 6 | 6×9 | 60.5 | 35×6 | M4 | 5.0 | T010-0609/6B, T010-0609/6G |
| T010-0609/7 | 7 | 6×9 | 60.5 | 35×6 | M4 | 5.0 | T010-0609/7B, T010-0609/7G |
| T010-0609/8 | 8 | 6×9 | 60.5 | 35×6 | M4 | 5.0 | T010-0609/8B, T010-0609/8G |
| T010-0609/10 | 10 | 6×9 | 69 | 35×6 | M4 | 5.0 | T010-0609/10B, T010-0609/10G |
| T010-0609/12 | 12 | 6×9 | 81 | 35×6 | M4 | 5.0 | T010-0609/12B, T010-0609/12G |
| T010-0609/14 | 14 | 6×9 | 93 | 35×6 | M4 | 5.0 | T010-0609/14B, T010-0609/14G |
| T010-0609/16 | 16 | 6×9 | 105 | 35×6 | M4 | 5.0 | T010-0609/16B, T010-0609/16G |

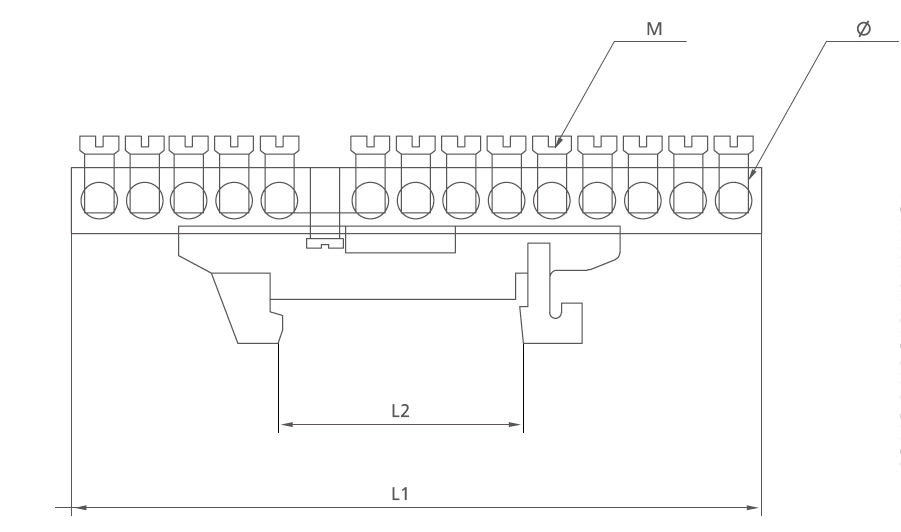

Dimension
Applications
Use brass terminal block T010 in distribution boards, OEM control cabinets, and machine panels where a compact neutral or earth consolidation point reduces clutter and speeds commissioning.
Selection Guide
Pick lower way counts for compact boards; choose 12–16 way brass terminal block T010 to minimize jumpers on dense layouts and keep wiring short.
Installation
Mount on a flat surface, confirm PE/N strategy, and route feeders before tightening. The base of brass terminal block T010 provides good tool access and label visibility.
Maintenance
Re-torque terminals on schedule, inspect contact surfaces, and verify base fasteners. With these checks, brass terminal block T010 maintains consistent performance over thermal cycles.
FAQ
Are color options available?
Yes. brass terminal block T010 commonly offers Blue (B) and Green (G) variants as noted in the remarks.
Neutral or earth usage?
Brass terminal block T010 can be wired as a neutral (N) link or an earth (PE) bar depending on panel design and labeling.
