HSNE-F Heat Shrink Tube for Auto (2:1, Flame-Retardant, EV/Battery Busbar Protection)
Automotive/EV-grade heat shrink tube for auto with 2:1 shrink ratio and adhesive-friendly surface.
Operating −55 °C to +125 °C; initial shrink ≥85 °C; full shrink ≥125 °C; VW-1 flame-retardant; RoHS.
High tensile strength (≥10.4 MPa) and low water absorption; excellent electrical insulation.

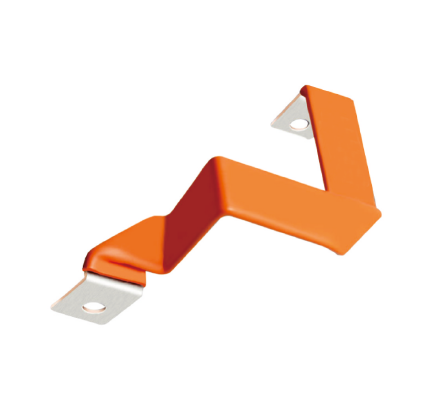

Ideal for EV laminated busbars, solder-joint insulation, and corrosion prevention of connectors.
Overview – Heat Shrink Tube for Auto (HSNE-F)
The HSNE-F series is an automotive/EV-grade heat shrink tube for auto designed for
laminated busbars, connector insulation and corrosion prevention in new-energy vehicles. Made from
radiation cross-linked polyolefin, it features excellent electrical properties, stable chemistry, and
reliable protection for solder joints and mechanical parts.
Shrink Ratio: 2:1
Operating Temperature: −55 °C ~ +125 °C
Initial Shrink: ≥85 °C
Full Shrink: ≥125 °C
Flame Rating: VW-1 (ASTM D 2671 C)
Compliance: RoHS • High insulation • Low water absorption
Standard Colors: Orange, White (others customizable)
Technical Parameters
| Property | Index | Test method |
|---|---|---|
| Tensile strength | 10.4 MPa | ASTM D 2671 |
| Elongation at break | 200% | ASTM D 2671 |
| Tensile strength after aging | 7.3 MPa (158 °C × 168 h) | ASTM D 2671 |
| Elongation at break after aging | ≥100% (158 °C × 168 h) | ASTM D 2671 |
| Axial rate of change | −5% ~ +5% | ASTM D 2671 |
| Flame retardancy | VW-1 | ASTM D 2671 C |
| Withstand voltage (600V) | 2500 V, 1 min no breakdown | UL224 |
| Breakdown strength | ≥15 kV/mm | ASTM D 149 |
| Volume resistivity | ≥1014 Ω·cm | IEC 60093 |
Product Specifications (2:1)
| Specification | Supplied inner diameter (mm) | Complete contraction (mm) | Standard packaging (m/roll) | Scope of application (mm) | |
|---|---|---|---|---|---|
| Φ before/after | Supplied | Inner diameter (≤) | Total wall thickness | — | — |
| Φ10/5.00 | 10.50±0.30 | ≤5.00 | 0.56±0.10 | 100 | 5.3~10.1 |
| Φ11/5.50 | 11.50±0.30 | ≤5.50 | 0.56±0.10 | 100 | 5.8~11.1 |
| Φ12/6.00 | 12.50±0.30 | ≤6.00 | 0.56±0.10 | 100 | 6.3~12.1 |
| Φ13/6.50 | 13.50±0.30 | ≤6.50 | 0.70±0.10 | 100 | 6.8~13.1 |
| Φ14/7.00 | 14.50±0.30 | ≤7.00 | 0.70±0.10 | 100 | 7.3~14.1 |
| Φ15/7.50 | 15.50±0.40 | ≤7.50 | 0.70±0.10 | 100 | 7.8~15.1 |
| Φ16/8.00 | 16.50±0.40 | ≤8.00 | 0.70±0.10 | 100 | 8.3~16.1 |
| Φ17/8.50 | 17.50±0.40 | ≤8.50 | 0.70±0.10 | 100 | 8.8~17.1 |
| Φ18/9.00 | 19.00±0.50 | ≤9.00 | 0.70±0.10 | 100 | 9.3~18.1 |
| Φ20/10.0 | 22.00±0.50 | ≤10.0 | 0.80±0.15 | 100 | 10.5~21.0 |
| Φ22/11.0 | 24.00±0.50 | ≤11.0 | 0.80±0.15 | 100 | 11.5~23.0 |
| Φ25/12.5 | 26.00±0.50 | ≤12.5 | 0.90±0.15 | 50 | 13.0~25.0 |
| Φ28/14.0 | 29.00±0.50 | ≤14.0 | 0.90±0.15 | 50 | 14.5~27.0 |
| Φ30/15.0 | 31.50±1.00 | ≤15.0 | 1.00±0.15 | 50 | 17.0~29.0 |
| Φ35/17.5 | 36.50±1.00 | ≤17.5 | 1.00±0.15 | 50 | 20.0~30.0 |
| Φ40/20.0 | 41.50±1.00 | ≤20.0 | 1.00±0.15 | 50 | 22.0~35.0 |
| Φ45/22.5 | 46.50±1.50 | ≤22.5 | 1.00±0.15 | 25 | 30~45 |
| Φ50/25.0 | ≥50 | ≤25.0 | 1.10±0.15 | 25 | 28~45 |
